Specifications
Surface mounted led ceiling light1. Super thin:9mm,Weight: 0.9KG
2. LED:240pcs of SMD4014
3. 3 years warranty
4. CE, RoHS

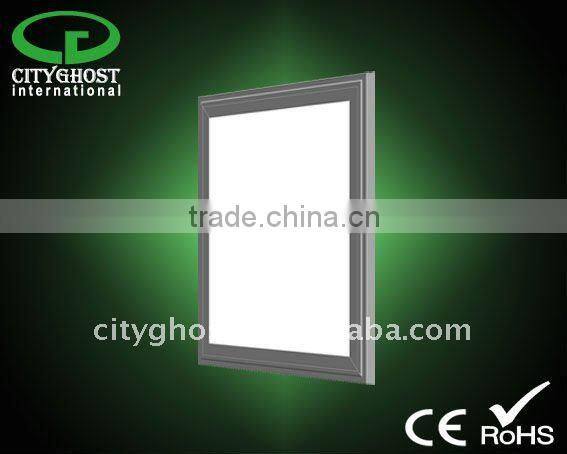

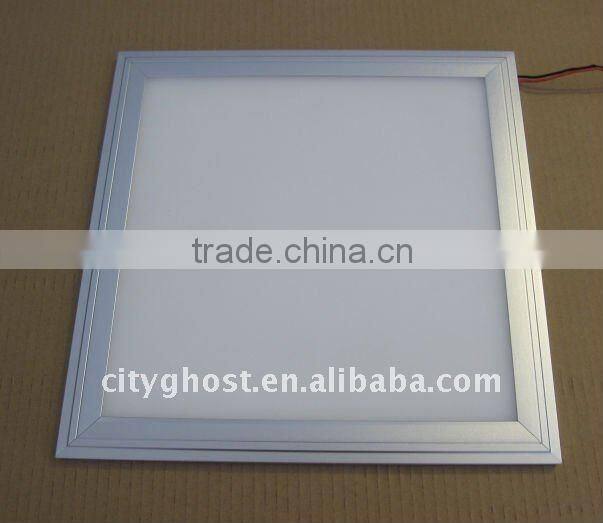

18w 24w 295x295mm 300x300 Dali dimming 12 inch recessed light
Advantages:
- Professionism----Specialize in led light panel for 6 years;
- Reliability----Employ fireproof materials, pass 850°C glow wire flammability test;
- Reputation----TUV&BV certified manufacturer from Shenzhen,China;
- Certification----CE&RoHS approved and patented led light panel.
Features:
- Material: We adopt Aluminum alloy(Frame & Rear cover), PMMA((LGP), PS/PC(diffuser plate) Those are the advantages: good heat dissipation, high Luminous uniformity, uniformity/square meter> 90%;
- LED source: PCB with high quality 0.2W 4014 SMD, high brightness and luminous, good heat dissipation,lifespan > 50000h;
- Side emitting, with special process,the luminous efficiency is generally 3% higher than similar products in the market, some even reached over 100Lm/W;
- Ultra-thin: 9mm thickness, weight less than 10kg/square meter,easier for shipping;
- Different CCT for option: 3000k -6000k;
- Various installation ways: a, Replace the plaster false ceiling. b, Suspended to the ceiling. c, Mounted to the ceiling or the wall;
- Beam(light) angle:>110° , CRI: RA>80 , Protection Rate: IP44 , Insulation: Class II. PF>0.9;
- Power supply(driver), some models with Meanwell or Inventronics driver with UL/CE approved;
- Certificate: CE&RoHS;
- 3 years warranty: we sell LED panel light for 6 years from 2008, the complaint rate is less than 2%.
Product Description
Model |
P33-24S |
Dimension |

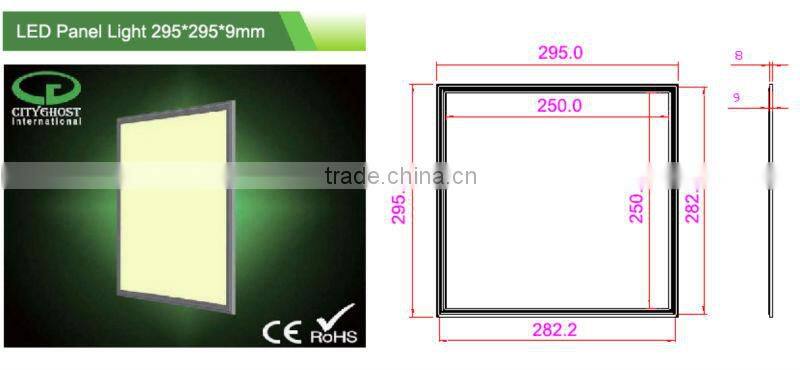

295x295x9mm (300x300) |
Net Weight (with driver) |
0.9 KG |
Lighting source |
SMD4014 LED |
LED QTY |
120 pcs |
Power consumption |
24W |
Input voltage (Driver) |
90-135VAC or 175-265VAC /50-60HZ |
Output voltage (Driver) |
24~48VDC |
Constant current |
840mA |
CCT |
3000~6500K |
Luminous |
1920 lm |
Light Efficiency |
80 lm/w |
Efficiency |
≥90% |
PF |
≥0.90 |
Bean-angle |
120 ° |
Ra |
Ra ≥ 80 |
Fixture Material |
Alu frame+PMMA LGP+PS/PC Difusser |
*Dimmer and Remote control are optional
Other Popular Models
| Specification Model | P22-12S | P33-24S | P63-36S | P66-48S | PC3-60S | PC6-72S |
| Dimension ( mm) | 200x200 | 300x300 | 600x300 | 600x600 | 1200x300 | 1200x600 |
| Power consumption | 12W | 24W | 30W | 48W | 60W | 72W |
| LED QTY | 60 pcs | 120 pcs | 150pcs | 240pcs | 300 pcs | 360pcs |
| Input voltage (Driver) | 90-135VAC or 175-265VAC /50-60HZ | |||||
| Output voltage (Driver) | 12~14V DC | 20~30V DC | 32~42V DC | 32~42V DC | 32~42V DC | 32~42V DC |
| Constant current | 0.84A | 0.84A | 0.84A | 1.15A | 1.43 | 1.67A |
| Efficiency | ≥85% | |||||
| PF | ≥0.9 | |||||
| CCT | 3000K, 4000K,5000K,6000K | |||||
| Luminous | 744 lm | 1920 lm | 2640lm | 4320 lm | 5400lm | 6480 lm |
| Luminescence efficiency | 70 lm/w | 80 lm/w | 88 lm/w | 90 lm/w | 90lm/w | 90 lm/w |
| Net Weight (includes driver) | 0.4KG | 0.9KG | 1.8KG | 3.6KG | 3.6KG | 7.2KG |
Packing specification:
Size of inner carton:37*32*3.5CM Size of master carton:38.2*33.2*37.5CM
G.W of inner carton:0.8KG G.W of master carton:10KG
Packing quantity:10PCS/mater carton

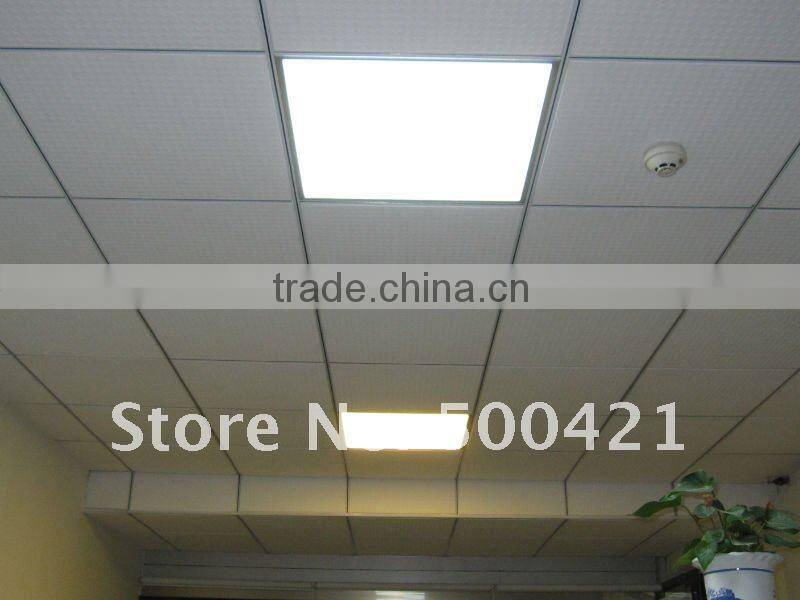

Cityghost LED Panel Lights are suitable for both domestic and commercial applications.They are ideal for all types of commercial LED Lighting projects in offices, schools, hotels, hospitals, shopping malls, kitchens and providing a superior light for any environment.
Why Choose CITYGHOST?
Shenzhen Cityghost Lighting Ltd. was founded in 2008. We are dedicated to R&D, manufacturing and promoting LED panels, aiming to offer excellent lighting to all over the world.
4000 square meter scale factory, 150 skilled workers, 5 assembly lines, 1 set of integrated sphere, wave soldering machine, SMT machine, which can support 20,000 pieces LED panels per month.
CITYGHOST has been to many exhibitions, for example, Canton Fair, Guangya, HK International
Lighting Fair etc. During this time ,our team have shown our team spirit, enthusiasm and
professionism for customers from all over the world.
There are a varity of testing machines in our workshop in order to know the exact information about the
products, so you can definately trust our IES test report.
As a professional LED panel light manufacturer in China, Cityghost has achieved many certificates and
honors, for instance, CE , RoHS and patents, which demonstrate our products are of high quality.
- Your inquiry related to our products or prices will be replied in 24hrs;
- Well-trained and experienced staffs to answer all your enquires in fluent English;
- OEM&ODM, any your customized lightings we can help you to design and put into production;
- Distributoership are offered for your unique design and some our current models;
- Protection of your sales area, ideas of design and all your private information.
Q: Why are you choosing Cityghost?
There are four reasons, for confidence guarantee, quality guarantee, patent guarantee and
certifcated guarantee. Cityghost has specialized in led panel light for 5 years, all the products
employ fireproof materials, and pass 850C glowwire flammability test. Technology innovations
and utility patents to avoid patent disputes. TUV and BV certified manufacturer from Shenzhen, China.
Q: What are your available sizes?
We have many sizes such as:
Diameter 134mm,163mm, 180mm, 220mm, 240mm, 300mm;
square 195mm, 295mm, 595mm, 620mm;
Rectangle: 595x295mm, 1195x195mm, 1195x295mm, 1195x595mm;
All the sizes are our standard sizes. And if you needed, we supply customization service to some extent.
Q: What is the type of your LED resources?
Our LED is 3014 for round panel, 4014 for square panel and 5050 for RGB. Different color
termperature for your option, 3000k, 40000k, 5000k, 6000k. The CRI is more than 80, and beam
angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other suppliers.
Q: How is your warranty and how to apply?
We offer 3 years warranty for all the products. When light or driver meets problems, we request
our customer to send us pictures or videos for our analysis, and we send the customer a new
product, with this we all save time and money in freight to send back the goods.
Q: Does it easy to install and use?
Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual.
There will be a manual in each led panel light box when you buy it. Look it carefully and install it
step by step according to the instructions.
Q: Do you have dimmable panel lights?
Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light,
0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote controller or DMX.
Q: What is the material of your LGP?
Our LGP is PMMA, and the thickness is 4mm,which are from ChiMei Optoelectronics Corp or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
Our Aluminum back is 6063, and the thickness is 0.6mm. We use PC diffuser, and the thickness is 1.5mm.
Q: what is your available wattage?
7w, 8w, 9W, 10w, 12W, 15W, 16w, 18W, 24W, 30W, 32w, 36W, 48W, 60W, 72W, 90w.
