compound polyethylene eps vacuum block moulding machine
- SHANGHAI/NINGBO
- T/T
You May Like
-
Automatic EPS Block Molding Machine
-
eps block moulding machine screw barrel
-
EPS automatic block molding machine plastic
-
2040*1240*1030~6100*1240*1030(mm) Professional manufacturer supplier Quality-assured eps block molding machine
-
double-layer eps foam block machine stage lighting
-
eps block molding machine by chin supply
Product Details
| Condition | New | Type | Other, compound polyethylene eps vacuum block moulding machine | |
| Plastic Type | EPS | Product Type | Other, compound polyethylene eps vacuum block moulding machine | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | VST | Model Number | PSB-DZ200-600 | |
| Voltage | 380V compound polyethylene eps vacuum block moulding machine | Power(W) | 20.5-35.5KW | |
| Weight | 7200-15000KG | Dimension(L*W*H) | 2040*1240*1030~6100*1240*1030(mm) | |
| Certification | ISO9001,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

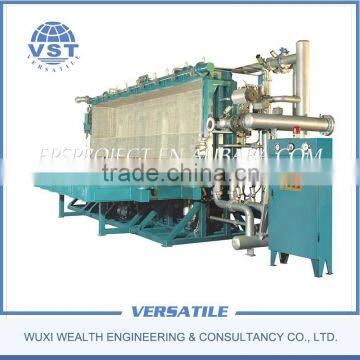

1.Pictures of compound polyethylene eps vacuum block moulding machine
2.Product Description of compound polyethylene eps vacuum block moulding machine
EPS Block Molding Machine with Vacuum PSB-DZ200-600 is to make EPS blocks. The pipeline set up inside of
block moulding machine with vacuum (Horizontal type),adopts PLC and touch screen for controlling the lift and fall of template activity.The elevator size can be adjusted according to the specific data,accuracy and stability,to achieve a multi-purpose machine.Then cut to sheets by cutting machine for using in inner and outer wall, sandwich panel, 3D panel etc. The purpose of using EPS sheets in building is to get heat insulation and sound insulation.
3.Technical Data of compound polyethylene eps vacuum block moulding machine
| Item | PSB-DZ200 | PSB-DZ300 | PSB-DZ400 | PSB-DZ600 | |
| Mould cavity size | 2040*1240*1030(mm) | 3060*1240*1030(mm) | 4080*1240*1030(mm) | 6100*1240*1030(mm) | |
| Block size | 2000*1200*1000(mm) | 3000*1200*1000(mm) | 4000*1200*1000(mm) | 6000*1200*1000(mm) | |
| Steam | entry | DN80 | DN80 | DN150 | DN150 |
| consumption | 30-50kg/cycle | 50-70kg/cycle | 60-90kg/cycle | 100-130kg/cycle | |
| pressure | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa | |
| Compressed Air | entry | DN40 | DN40 | DN40 | DN40 |
| consumption | 1.5-2 m3 /cycle | 1.8-2.2 m3 /cycle | 2-2.5 m3 /cycle | 2-3 m3 /cycle | |
| pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | |
| Cooling water | entry | DN40 | DN40 | DN40 | DN40 |
| consumption | 0.2-0.4 m3 /cycle | 0.4-0.6 m3 /cycle | 0.6-0.8 m3 /cycle | 0.8-1 m3 /cycle | |
| pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | |
| Drainage | vacuum drain | Φ125mm | Φ125mm | Φ125mm | Φ125mm |
| steam vent | Φ100mm | Φ100mm | Φ200mm | Φ200mm | |
| condensate | Φ100mm | Φ100mm | Φ100mm | Φ100mm | |
| Blower outlet | Φ125mm | Φ125mm | Φ150mm | Φ150mm | |
| Throughput | 15kg/m3 | 5min/cycle | 6min/cycle | 7min/cycle | 8min/cycle |
| Power | 20.5-24.5kw | 20.5-24.5kw | 24.5-35.5kw | 24.5-35.5kw | |
| Overall dimension | L*W*H | 5700*4000*2850(mm) | 7200*4500*3000(mm) | 11000*4500*3000(mm) | 2600*3960*2906(mm) |
| Weight | 6000kg | 7200kg | 12000kg | 15000kg | |
| Room height required | 6000mm | 6000mm | 6000mm | 6000mm |
4.Features Of compound polyethylene eps vacuum block moulding machine
1)Strong Structure:
Machine is made of high-strength square tubes and thick steel plates.
Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform
under high temperature. After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion.
2)Steam System:
Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system.
Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation.
3)Control System:
Machine with PLC and touch screen for easy operation.
5.Application of compound polyethylene eps vacuum block moulding machine
6.More Products for You to Choose
7.Trade Item
MOQ | 1 Set |
Payment Method | L/C, T/T |
Port | Shanghai/Ningbo |
Delivery | 45 days after received deposit or LC |
Supplier Capacity | 20 units per month |
Packing | standard exporting package . |
1.About Us
1)Wuxi Wealth Engineering & Consultancy Co., Ltd. specially deal with all kinds of EPS machines and give
consultancy service to those clients who plan to set up new EPS factory. Working in EPS machine field for
over 12 years, and having helped hundreds of clients to build new EPS factory, we are very confident and
competent to offer you complete turn-key projects for EPS industry.
2)We are associated with several EPS machine manufacturers in China, so we can easily match different
clients’ request. Sitting in the manufacturing base of EPS machines, we can regularly follow up machine
production and inspect machine quality, We follow the principle of “service first, quality first” to develop our
business. Our team is constantly making efforts to answer clients’ request within shortest time, and our
professional technicians always give you fast response for your questions and complaints. We pay whole
life responsibilty for the products we sell.
3)We sincerely hope establishing long and friendly business relationship with clients from all over the world.
