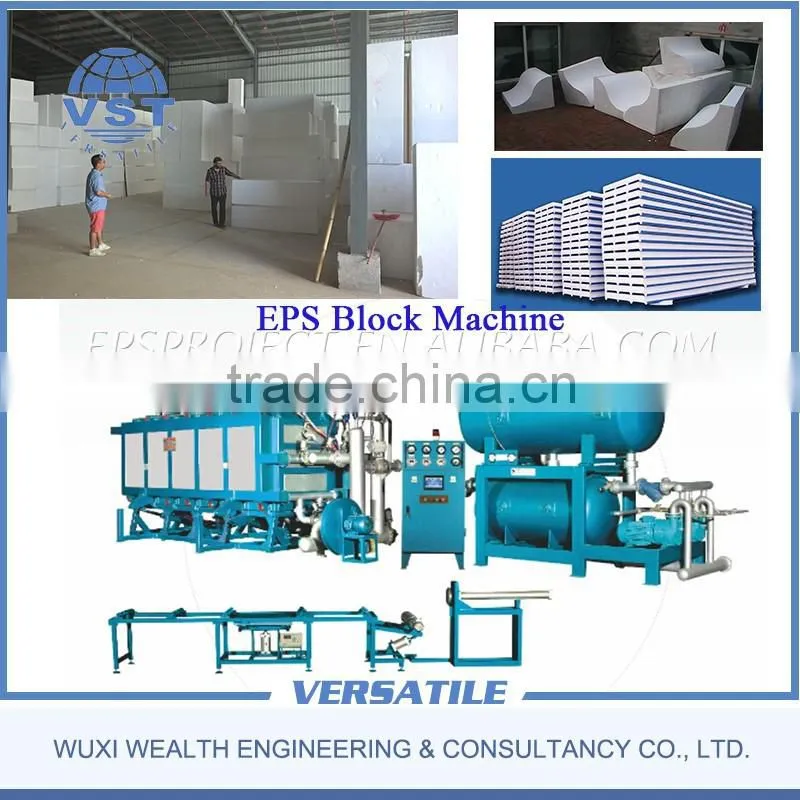

Quality-assured Eps Vacuum Cooling Block Moulding Machine
US$ 30,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Eps vacuum cooling block moulding machine
Plastic Type:
EPS
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Continuous Block Moulding MachineUS$ 30,000 - 70,000MOQ: 1 Set -
Vacuum System Block Molding MachineUS$ 30,000 - 70,000MOQ: 1 Set
-
High Efficient Vertical Eps Block Molding MachineUS$ 30,000 - 70,000MOQ: 1 Set
-
EPS Block Molding Machine Vacuum CoolingUS$ 30,000 - 70,000MOQ: 1 Set
-
EPS Block Molding Machine Out of PolystyreneUS$ 30,000 - 70,000MOQ: 1 Set
Condition
New
Type
Other, Eps vacuum cooling block moulding machine
Plastic Type
EPS
Product Type
Other, Block moulding machine
Automatic
Yes
Place of Origin
Zhejiang, China
Brand Name
VST eps machine
Model Number
PSB-DZ600
Voltage
380V
Power(W)
24.5-35.5Kw
Weight
15000KG
Dimension(L*W*H)
2600*3960*2906mm
Certification
ISO9001,CE
After-sales Service Provided
Engineers available to service machinery overseas
EPS block moulding machine
1.EPS block moulding machine Description
| Item | type | PSB-DZ200 | PSB-DZ300 | PSB-DZ400 | PSB-DZ600 |
| Mould cavity size | mm | 2040*1240*1030(mm) | 3060*1240*1030(mm) | 4080*1240*1030(mm) | 6100*1240*1030(mm) |
| Block size | mm | 2000*1200*1000(mm) | 3000*1200*1000(mm) | 4000*1200*1000(mm) | 6000*1200*1000(mm) |
| Steam | entry | DN80 | DN80 | DN150 | DN150 |
| consumption | 30-50kg/cycle | 50-70kg/cycle | 60-90kg/cycle | 100-130kg/cycle | |
| pressure | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa | |
| Compressed Air | entry | DN40 | DN40 | DN40 | DN40 |
| consumption | 1.5-2 m3 /cycle | 1.8-2.2 m3 /cycle | 2-2.5 m3 /cycle | 2-3 m3 /cycle | |
| pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | |
| Cooling water | entry | DN40 | DN40 | DN40 | DN40 |
| consumption | 0.2-0.4 m3 /cycle | 0.4-0.6 m3 /cycle | 0.6-0.8 m3 /cycle | 0.8-1 m3 /cycle | |
| pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | |
| Drainage | vacuum drain | Φ125mm | Φ125mm | Φ125mm | Φ125mm |
| steam vent | Φ100mm | Φ100mm | Φ200mm | Φ200mm | |
| condensate | Φ100mm | Φ100mm | Φ100mm | Φ100mm | |
| Blower outlet | Φ125mm | Φ125mm | Φ150mm | Φ150mm | |
| Throughput | 15kg/m3 | 5min/cycle | 6min/cycle | 7min/cycle | 8min/cycle |
| Power | kw | 20.5-24.5kw | 20.5-24.5kw | 24.5-35.5kw | 24.5-35.5kw |
| Overall dimension | L*W*H | 5700*4000*2850(mm) | 7200*4500*3000(mm) | 11000*4500*3000(mm) | 2600*3960*2906(mm) |
| Weight | kg | 6000kg | 7200kg | 12000kg | 15000kg |
| Room height required | mm | 6000mm | 6000mm | 6000mm | 6000mm |
2.EPS block moulding machine Pictures
3.EPS block moulding machine Features
|
1)Strong Structure: Machine is made of high-strength square tubes and thick steel plates. Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform. under high temperature. After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion. 2)Steam System: Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system. Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation. 3)Control System: Machine with PLC and touch screen for easy operation. |
4.EPS block machineApplication
