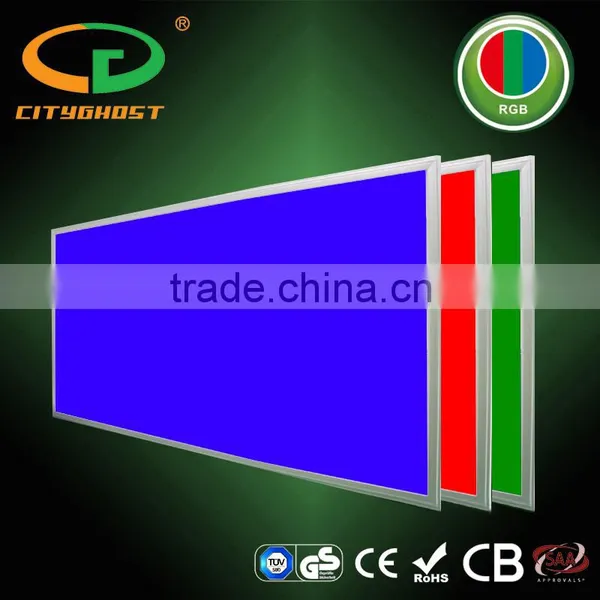

1.Pictures of Cityghost edge lit led light panel 1200x150x9mm
a. Edgelit led panels for sale 0.2W SMD 4014 LED, Samsung or Epistar chip
b. High Luminous,using T6063 Aluminium releasing 98% heating of lighting
2. Specification of good heat release edge lit led light panel
| Model | PC1-36S |
| lighting source | SMD4014 |
| LED QTY | 180PCS |
| Input voltage | 100-240VAC |
| PF | 0.90 |
| LED Lifespan | 50,000H |
| CCT | 3000K,4000K,5000K,6000K |
| Luminescence efficiency | 95lm/w |
| Bean-angle | 120° |
| Ra | 80 |
| Operation temperature | -40~+50℃ |
| Relative humidity | 10%-80%RH |
| Net Weight(includes driver) | 3.6KG |
| Insulation classs | CLASS Ⅱ |
| Protection grade | IP44 |
| Environmental | All materials meet with RoHS compliance |
| Certificate | CE RoHS CB GS SAA |
3. Customized Color temperature 3000K-6000K for your option 1200x150x9mm panel light
| Size | Power | LED Quantity | Input | Lighting efficiency (lm/w) |
| 200x200mm | 12W | 60 | AC100-240V | 85 |
| 300x300mm | 24W | 120 | AC100-240V | 85 |
| 600x300mm | 30W | 150 | AC100-240V | 90 |
| 1200x200mm | 36W | 180 | AC100-240V | 95 |
| 1200x300mm | 30W | 150 | AC100-240V | 90 |
| 1200x600mm | 48W | 240 | AC100-240V | 95 |
| 620x620mm | 36W | 180 | AC100-240V | 95 |
| 603x603mm | 48W | 240 | AC100-240V | 95 |
a. Confference / meeting room
b. Hospitals
c. Factory / company
d. Schools
e. Any indoor places where need to save energy and long lifespan
8. Factory Introduction of No Flicker led panel lights
Welcome to Shenzhen Cityghost Technology limited. Cityghost have been led panel lights
for businesses and home users for over 5 years . all models are innovative, cost effective
and with outstanding engineers team, advanced testing equipments, sufficient designing ,
Cityghost will provides you with excellent prices and choices and backed up with the best customer service.
Contact us today to discuss how Cityghost can help you !
CITYGHOST IS A MANUFACTURER:
*With strong technical strength and strict quality control system.
*Can provide OEM,ODM service and LED lighting solution.
*All our lights have TUV ,GS,CB, SAA certification.
WHAT CITYGHOST HAS:
* Ability to meet your technical requirements.
* Attitude to provide good quality.
* Solution to satisfy large order.
| Payment Terms | L/C, T/T, Others |
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 3Day(s) |
| Sample Available | YESAsk For Sample |
| Delivery Details | 3~5days for sample , 7~10days for mass production |
| FOB Port | Shenzhen |
| Loading Info | EXW in Shenzhen |
12. Shipping for you !
Any product interests you, pls feel free to contact us, we are ready to serve you all the time!
After testing our high quality led panels, you will feel very good to enjoy a long cooperation with us, we do believe !
contact me freely,Skype: betty.yang1988, What's app:+8613631656923
Contact Information:
Shenzhen Cityghost Lighting LTD
Mr. Lee
Tel:(86) 755-2809 4270 Fax:86 755-61658345
Mob:86-136 31656923
skype:betty.yang1988
Address: 3F, Bd.A4, Low Carbon Industrial Park, Silicon Valley Power,
Guiyue Rd., Guanlan, Shenzhen, China, 518110
Here comes other sides for options pls click if you like
600*600*19mm dimming led panel 1200*300*9ldimming panel 150*150*9mm dimming led panel
