Home > Products > 9MM Thickness LED Panel Light > RGB Ceiling LED Lighting Panel 32w 600x600mm for Office Light Panel Light
RGB Ceiling LED Lighting Panel 32w 600x600mm for Office Light Panel Light
- SHENZHEN
- T/T Money Gram Credit Card Other
You May Like
-
UL Listed Ceiling Recessed Installation 1195*595*9MM Real Size 3 Years' Warranty IP44 LED Flat Panel 1195*595 48W
-
UL, DLC Certified LIFUD Input Voltage 100-240V 3 Years' Warranty 85LM/W Silver Frame LED Flat Panel 1195*595 48W
-
US Residential Ceiling Lighting IP44 3 Years' Warranty 603*603*9MM Indoor LED Flat Panel Lighting 2'x2' 40W
-
2.4G WIFI Controlling LED Lighting Lamp Brightness Dimmable Indoor 36W Light LED Panel 600x600
-
3400LM 3000-6000K 595*595*9MM IP44 3 Years' Warranty Indoor LED Panel Light 600x600 40W
-
85LM/W 3 Years' Warranty LED Lighting Lamp UL Listed IP44 Indoor LED Panel Light 600x600 40W
Product Details
| LED Light Source | 0.2W SMD5630 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC 100-240 or 90-305 | Lamp Power(W) | 48 | |
| Lamp Luminous Flux(lm) | 3240 | Lamp Luminous Efficiency(lm/w) | 90 | |
| Color Temperature(CCT) | Other, 3000k,4000k,5000k,6000k for option | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP44 | Certification | CE, EMC, GS, LVD, SAA | |
| Place of Origin | Guangdong, China | Brand Name | CITYGHOST | |
| Model Number | P66-32T |
Product Description

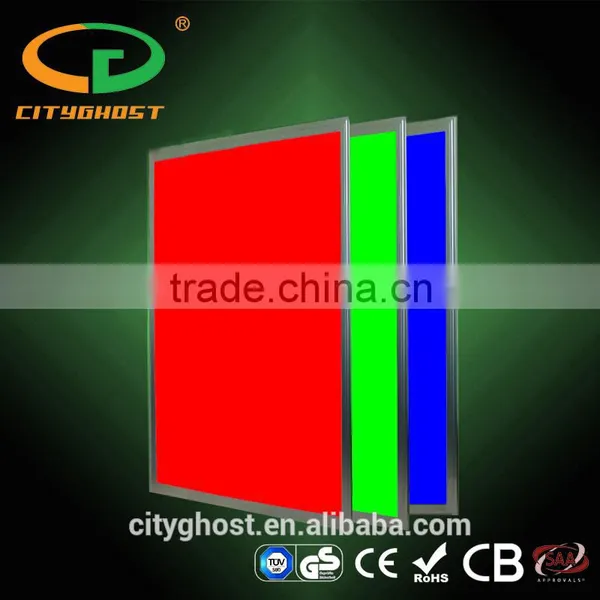

cityghost 32w 600x600mm RGB light led panel
- Ø High Luminous uniformity, uniformity / square foot > 90%
- Ø light source is high quality SMD4014
- Ø CRI: Ra>80
- Ø Luminous Efficacy: 90lm/w (for higher luminous efficacy,please contact me)
- Ø Constant current driver, power efficiency can be 85%, and power factor >0.9

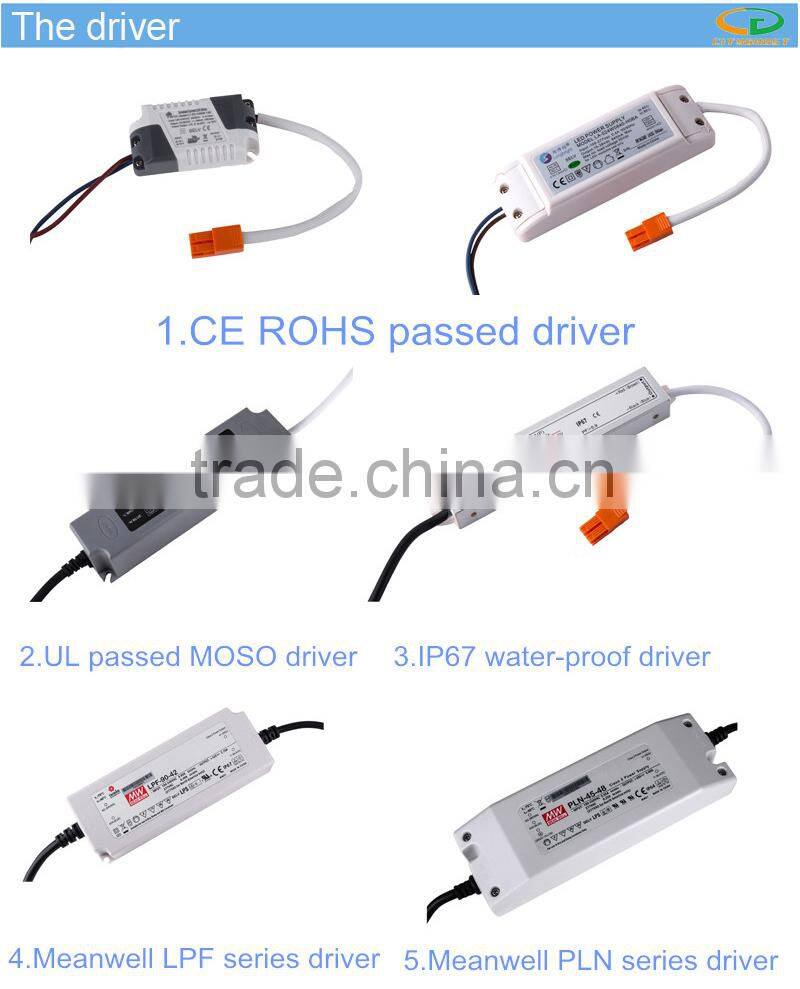

- Ø Branded driver Meanwell and Inventronics driver are available
- Ø Lifespan: 50,000hrs
- Ø 3 years warranty
- Dimensions:
- Material:
PS/PC diffuser plate+ optical PMMA LGP+ milk white color baking Aluminum alloy frame
| Item Type: | Square LED Panel Light |
| Item No.: | P66-36S |
| Size(mm): | 600*600*9mm |
| LED Type: | 0.2W SMD5630 |
| LED QTY: | 180 pcs |
| Input voltage(V) | AC 100-240V |
| Power consumption: | 32W, can be optional |
| Luminous: | / |
| Light Luminous Efficiency: | / |
| Working Temperature: | -20c---+40c |
| Storage Temperature: | -40c---+85c |
| IP Rating: | IP44 |
| CRI : | Ra>80 |
| CCT: | /Yellow,green,red |
| Beam angle | 120° |
| Light Body Material: | Aluminum Alloy |
| Working Lifetime: | 50000 Hours |
| Certification: | CE,RoHS |
| Warranty: | 3 years |
Popular Models Specification
| Specification Model | QJL-P15 | QJL-P22 | QJL-P33 | QJL-P63 | QJL-P66 | QJL-P13 | QJL-P16 |
| Dimension ( mm) | 150x150 | 200x200 | 300x300 | 600x300 | 600x600 | 1200x300 | 1200x600 |
| Power consumption | 8w | 12W | 24W | 36W | 48W | 60W | 72W |
| LED QTY | 84 pcs | 120 pcs | 240 pcs | 360 pcs | 480 pcs | 600 pcs | 720 pcs |
| Input voltage (Driver) | 90-135VAC or 175-265VAC /50-60HZ | ||||||
| Output voltage (Driver) | 12~14V DC | 12~14V DC | 24~28V DC | 36~42V DC | 48~56V DC | 60~70V DC | 72~84V DC |
| Constant current | 900mA | 900mA | 900mA | 900mA | 900mA | 900mA | 900mA |
| Efficiency | ≥85% | ||||||
| PF | ≥0.9 | ||||||
| CCT | 3000K, 5000K, 6500K | ||||||
| Luminous | 560 lm | 840 lm | 1680 lm | 2520 lm | 3360 lm | 4200 lm | 5040 lm |
| Luminescence efficiency | 70 lm/w | 70 lm/w | 70 lm/w | 70 lm/w | 70 lm/w | 70 lm/w | 70 lm/w |
| Net Weight (includes driver) | 0.3KG | 0.4KG | 0.9KG | 1.8KG | 3.6KG | 3.6KG | 7.2KG |
*Dimmer and Remote control are optional













Q:Why are you choosing cityghost?
A:There are four reasons ,for confidence guarantee ,quality guarantee ,patent guarantee and certificated guarantee . Cityghost has specialized in led panel light for 5 years ,all the products employ fireproof materials ,and pass 850°C glow-wire flammability test .Technology innovations and utility patents to avoid patent disputes .TUV and BV certified manufacturer from Shenzhen , china.
Q: What is the type of your LED resources?
A: Our LED is 3014 for round panel,4014 for square panel and 5050 for RGB.Different color termperature for your option,3000k,40000k,5000k,6000k . The CRI is more than 80, and beam angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other suppliers.
Q: What is the material of your LGP?
A: Our LGP is PMMA , and the thickness is 4mm ,which are from ChiMei Optoelectronics Corp or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
A: Our Aluminum back is 6063, and the thickness is 0.6mm.We use PC diffuser , and the thickness is 1.5mm.
Q: What are your available sizes?
A: We have many sizes such as
Diameter 134mm,163mm, 180mm,220mm,240mm,300mm;
square 195mm,295mm,595mm,620mm;
Rectangle: 595x295mm,1195x195mm,1195x295mm,1195x595mm;
All the sizes are our standard sizes.And if you needed , we supply customization service to some extent.
Q: what is your available wattage?
A:7w,8w,9W,10w,12W,15W,16w,18W,24W,30W,32w,36W,48W,60W,72W,90w.
Q: Do you have dimmable panel lights?
A: Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light, 0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote controller or DMX.

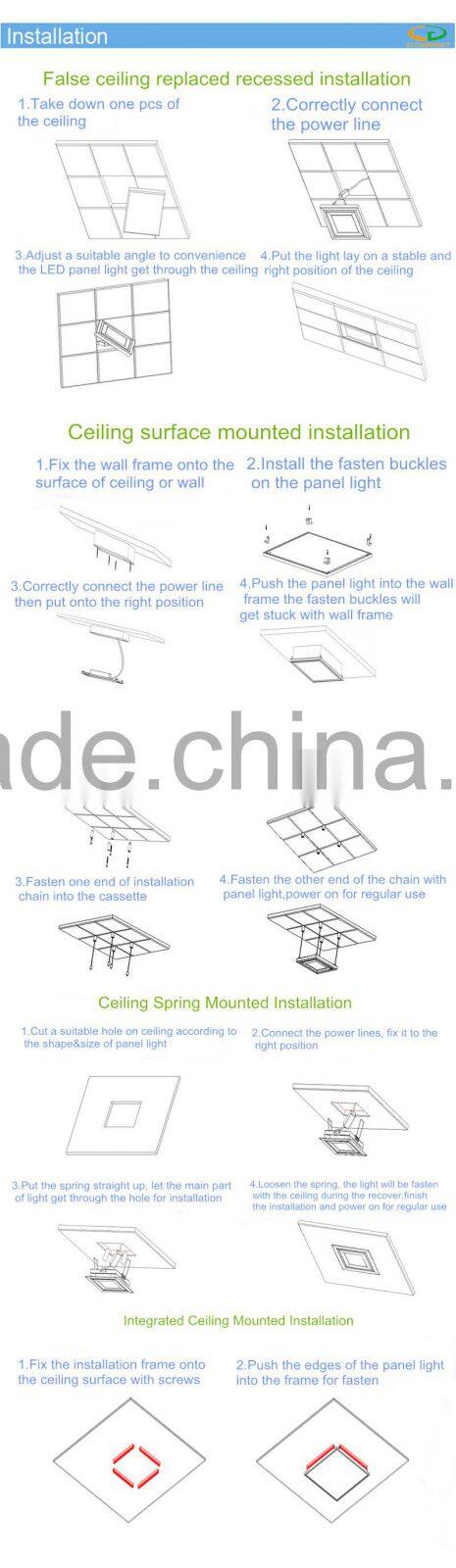

Q: Does it easy to install and use?
A: Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual. There will be a manual in each led panel light box when you buy it. Look it carefully and install it step by step according to the instructions.
Q: How is your warranty and how to apply?
A: We offer 3 years warranty for all the products. When light or driver meets problems, we request our customer to send us pictures or videos for our analysis, and we send the customer a new product, with this we all save time and money in freight to send back the goods.

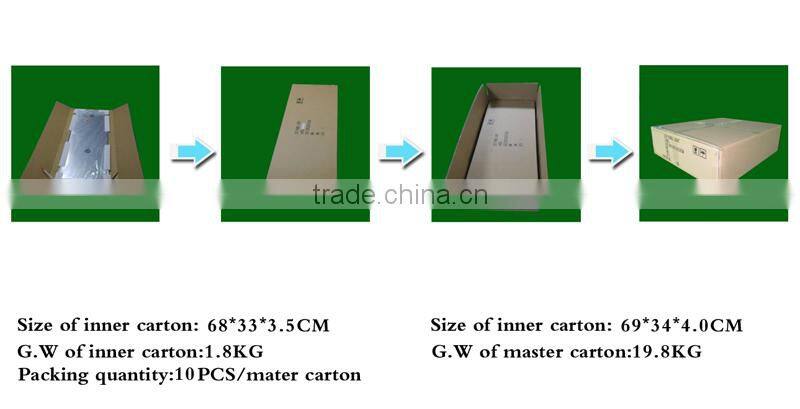

Q: Do you accept OEM packing?
A: Yes, we accept OEM packing even if you just want 1 piece of panel light.
Contact Us
- Shenzhen Cityghost Lighting Ltd.
- Contact nameRefer Zheng Chat Now
- Phone86-755-28094270
- AddressBd. A4, Low Carbon Industrial Park, Guiyue Rd., Guanlan, , Shenzhen, Guangdong
