Specifications
surface mounted led panel light1. Certificate TUV CE RoHS 3 years warranty
2. ultra-thin 9mm
3.High light efficiency 90lm/w

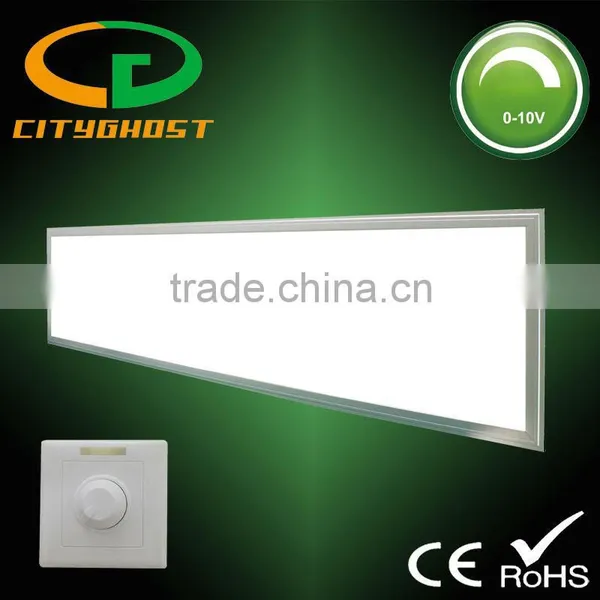

Lastest hot product surface mounted 0~10v dimmable led panel light price
Features & Advantages
1,Material: We adopt Aluminium(Frame & Rear cover), PMMA((LGP), PS/PC(diffuser plate)
Those are the advantages: good heat dissipation, high Luminous uniformity, uniformity/square meter> 90%.
2,LED source: PCB with high quality 0.2W 4014 SMD, high brightness and luminous, good heat dissipation,lifespan > 50000h.
3, Side emitting, with special process,the luminous efficiency is generally 3% higher than similar products in the market, some even reached over 100lm/w!
4,Ultra-thin: 9mm thickness, weight less than 10kg/aquare meter ,easier for shipping.
5,Different CCT for option: 3000k 4000k 5000k 6000k.
6,Different installation ways: a, Replace the plaster false ceiling. b, Suspented to the ceiling. c, Mounted to the ceiling or the wall.
7,Beam(light) angle:120° , CRI: RA 80 , Protection factor : IP44 , Insulation: Class II. PF>0.9.
8,Power supply(driver), some models with Meanwell or Inventronics driver with UL/CE approved.
9,Certificate: CE, RoHS, TUV
10,3 years warranty: we sell LED panel light for 6 years from 2008, the complaint rete is less than 2%.
Various specification
| Model | Watts | LED | Light Eff | Lumen | |||||
| PCS | lm/w | lm | Input | Output | PF | Eff | |||
| PC2-30S | 30W | 150 | 85 | 2550 | 100-265V | 24-36VDC | 0.84A | >0.9 |
86% |
| PC2-30SU | 30W | 150 | 85 | 2550 | 90-295V | 24-36VDC | 0.84A | >0.9 |
86% |
| PC2-36S | 36W | 180 | 87 | 3132 | 170-265V | 32-42VDC | 084A | >0.9 |
86% |
| PC2-36SU | 36W | 180 | 87 | 3132 | 90-295V | 32-42VDC | 0.84A | >0.9 |
86% |
| PC2-48S | 48W | 240 | 87 | 4176 | 100-265V | 32-42VDC | 1.15A | >0.9 |
88% |
| PC2-48SU | 48W | 240 | 87 | 4176 | 100-265V | 32-42VDC | 1.15A | >0.9 |
88% |
Installations
Size of inner carton:127*22*3.5CM Size of master carton:128*23*20CM
G.W of inner carton:3.1KG G.W of master carton:16.5KG
Packing quantity:5PCS/mater carton
Why Cityghost?
Company Profile Shenzhen Cityghost Technology limited was founded in 2008. We devote ourselves to researching, developing and promoting premier LED lighting products, aim at building outstanding national brand and try best to contribute society.
Our company specializes in developing, producing and selling LED lighting products. With outstanding engineers team, advanced testing equipments, sufficient designing and manufacturing experience, we are able to produce best quality LED lighting products. Our main products are LED panel lights and LED down lights, which are widely applied in office building, shopping mall, factory, hotel, hospital, school and residential house and other indoor places. Our company passed the audit of TÜV Rheinland and Bureau Veritas and certified to be compliant with the GMC Guangdong Standards. So far, our products are certified by CE(EMC/LVD) , RoHS standard and passed IEC60695-2-12 850°C glow wire test, especially our invisible panel light and frameless panel light are our patented products. Our products are sold popularly all over the world and our main market is Europe and North America. It is our business philosophy that is to create biggest value for customers. Our products and service enjoy a long-term recognition from customers. Cityghost has become the symbol of top level LED lighting product.
SHOWROOM
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area, ideas of design and all your private information.
Notes
1,Turn off all connected power before installation
2,Indoor usage only, please add protection for using outdoor;
3,Normal, the standard product is Non-dimmable, contact us for more dimmable driver information.
How long do LED panel last?
LED light panel have a much longer life span compared to standard halogen bulbs. In fact LED panel last up to 50000 hours – that’s over 5 years of continuous operation! When you install new LED lights you may never have to replace the bulbs again.
Do LED panel lights provide high quality lighting?
The short answer is YES! We pride ourselves on the quality and the light output of all our panel simply choose between natural or warm or cool white. You certainly won't be disappointed with the quality of the lighting!
