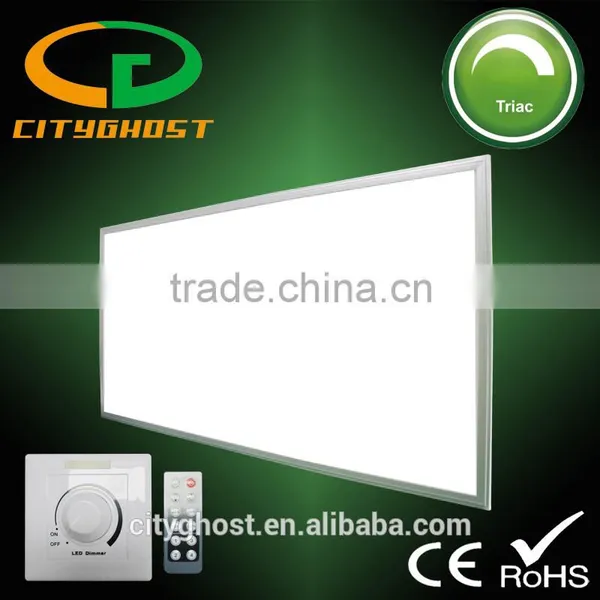

High Light Efficiency 72w 2x4 Dimmable Led Panel 1195X595 With CB Certisfied

ξ   high light efficiency 72w 2x4 dimmable led  panel 1195X595 with CB certisfied

 Features & Advantages

1,Material: We adopt Aluminium(Frame & Rear cover), PMMA((LGP), PS/PC(diffuser plate)

Those are the advantages: good heat dissipation,  high Luminous uniformity, uniformity/square meter> 90%.

2,LED source: PCB with high quality 0.2W 4014 SMD,  high brightness and luminous, good heat dissipation,lifespan > 50000h.

3, Side emitting, with special process,the luminous efficiency is generally 3% higher than similar products in the market, some even reached over 100lm/w!

4,Ultra-thin: 9mm thickness, weight less than 10kg/aquare meter ,easier for shipping.

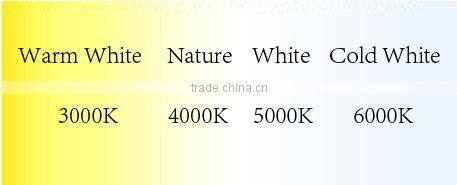

5,Different CCT for option: 3000k 4000k 5000k 6000k.

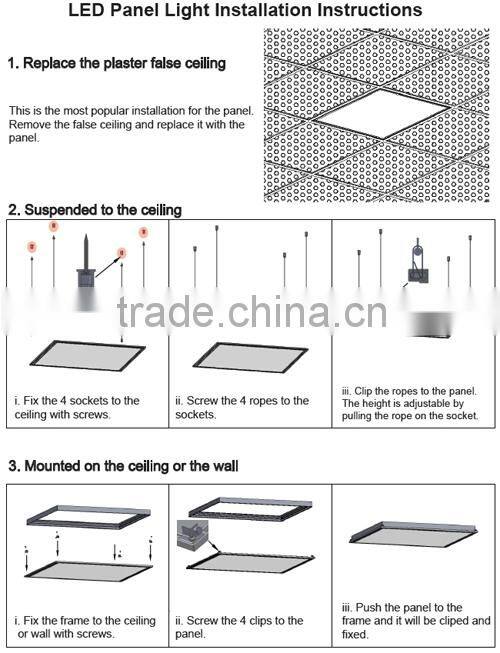

6,Various installation ways: a, Replace the plaster false ceiling. b, Suspented to the ceiling. c, Mounted to the ceiling or the wall.

7,Beam(light) angle:120° , CRI: RA 80 , Protection factor : IP44 , Insulation: Class II.  PF>0.9.

8,Power supply(driver), some  models with Meanwell or Inventronics driver with UL/CE approved.

9,Certificate: CE, RoHS, TUV

10,3 years warranty: we sell LED panel light for 6 years from 2008, the complaint rete is less than 2%.

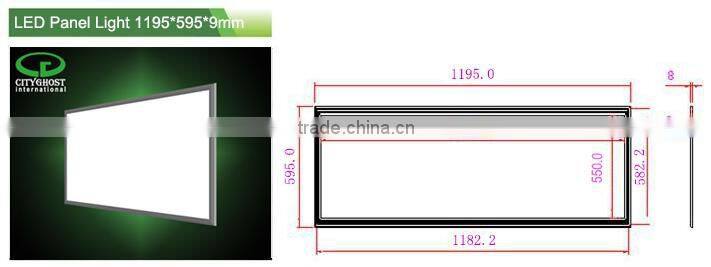

Various specification

Installations

Size of inner carton:127*63*4CM             Size of master carton:128*64*14CM

G.W of inner carton:8KG                         G.W of master carton:26.5KG

Packing quantity:3PCS/mater carton

Why Cityghost?

Company Profile Shenzhen Cityghost Technology limited was founded in 2008. We devote ourselves to researching, developing and promoting premier LED lighting products, aim at building outstanding national brand and try best to contribute society.
Our company specializes in developing, producing and selling LED lighting products. With outstanding engineers team, advanced testing equipments, sufficient designing and manufacturing experience, we are able to produce best quality LED lighting products. Our main products are LED panel lights and LED down lights, which are widely applied in office building, shopping mall, factory, hotel, hospital, school and residential house and other indoor places. Our company passed the audit of TÜV Rheinland and Bureau Veritas and certified to be compliant with the GMC Guangdong Standards. So far, our products are certified by CE(EMC/LVD) , RoHS standard and passed IEC60695-2-12 850°C glow wire test, especially our invisible panel light and frameless panel light are our patented products. Our products are sold popularly all over the world and our main market is Europe and North America. It is our business philosophy that is to create biggest value for customers. Our products and service enjoy a long-term recognition from customers. Cityghost has become the symbol of top level LED lighting product.

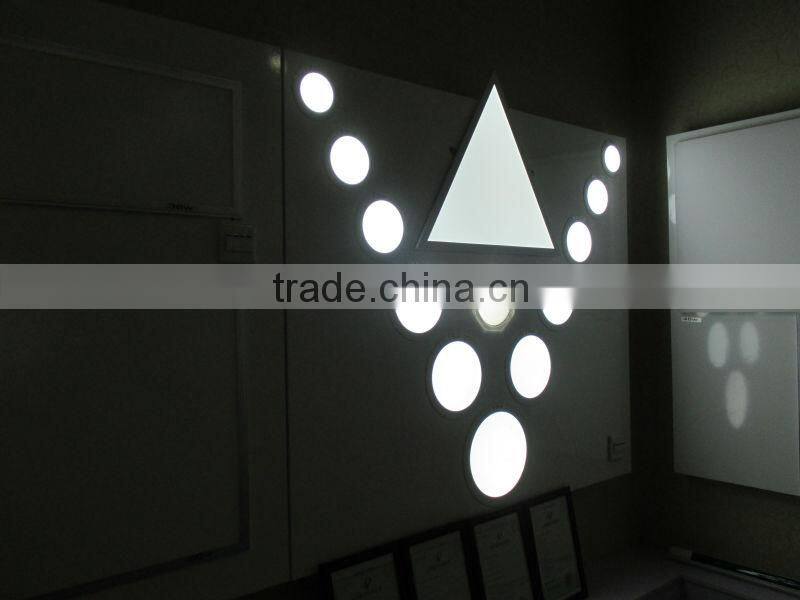

SHOWROOM

Certificates:

 1.Your inquiry related to our products or prices will be replied in 24hrs.

2.Well-trained and experienced staffs to answer all your enquires in fluent English.

3.Distributoership are offered for your unique design and some our current models.

4.Protection of your sales area, ideas of design and all your private information.

Why LED  SMD4014?

Higher lightness, high light efficiency , longer life span, better heat dissipation, that indicate SMD4014 is more suitable to adopt as LED source.  Now, 4014 is becoming  more popular in the world.

What is the main material?

We adopt Aluminium(Frame & Rear cover), PMMA((LGP), PS/PC(diffuser plate) , that the advantages are : good heat dissipation,  high Luminous uniformity, uniformity/square meter> 90%.
