Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > 595X295X9MM 30W Ultra Slim 9MM Energy Sacing Trade Surance Products

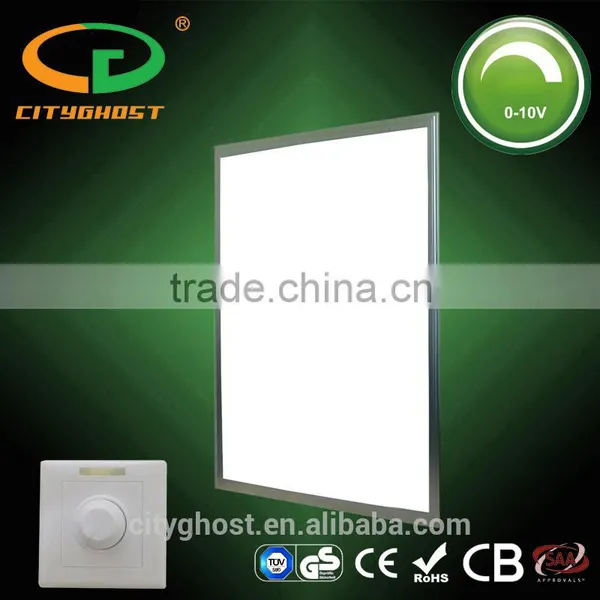

595X295X9MM 30W Ultra Slim 9MM Energy Sacing Trade Surance Products

Name: 595X295X9MM 30W Ultra Slim 9MM Energy Sacing Trade Surance Products
Brand: CITYGHOST
SKU: 129091909
Availability: InStock

595X295X9MM 30W Ultra Slim 9MM Energy Sacing Trade Surance Products thumbnail-1

595X295X9MM 30W Ultra Slim 9MM Energy Sacing Trade Surance Products photo-1

US$ 10 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

SMD3014

Warranty(Years):

Input Voltage(V):

170~265VAC

Contact Supplier Request Quote Chat Now

Shenzhen Cityghost Lighting Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD3014

Warranty(Years) 3

Input Voltage(V) 170~265VAC

Lamp Power(W) 30

Lamp Luminous Flux(lm) 2200

Lamp Luminous Efficiency(lm/w) 73

Color Temperature(CCT) Cool White

Working Temperature(℃) -20, +40

Working Lifetime(Hour) 50000

Lamp Body Material PC

IP Rating IP44

Certification CE, EMC, LVD

Place of Origin Guangdong, China

Brand Name CITYGHOST

Model Number P63-30SU

Features

1. Edgelite, bright, soft and comfortable luminosity

2. Premium SMD LED, >60% energy saving than fluorescent lamps

3. Distinguish circuit design ensures no interference with any LEDs when a single one malfunctions

4. External high PF constant current LED driver, instant start; no flickering and no humming; safe and reliable

5. Four sides illuminating, better heat sink, temperature rise <20deg., longer lifespan

6. Simple and splendid appearance

7. Easy installation: replace the grill lamp or false ceiling, or hang from the roof using chains

8. Mounted on walls as wall washer or back lighting for art drawings or advertisements

Model	QJL-P63-30S
Description	Build in Constant current LED panel light
Dimension	595X295X9MM
Lighting source	0.2W SMD3014 LED
LED QTY	150pcs
Power consumption	30W(includes driver)
Input voltage (Driver)	170~265VAC /50-60HZ
Efficiency	≥85%
PF	≥0.90
Input voltage (Lighting)	30~35VDC
Constant current	830mA
Operation temperature	-40~+50°C
CCT	2700-3000K,4500-5000K,6000-6500K
Light efficiency	73Lm/W
Luminous	2200lm(±5%)
Ra	Ra ≥ 70
Bean-angle	120 °
Protection grade	IP44
Temperature rising	< 20 °C
Relative humidity	10%-80%RH
Net Weight (includes driver)	1.8KG
Insulation class	CLASS II
Certificate	CE, RoHS

Packing specification

One panel in an Inner box, one master carton contain 10 inner boxes

Inner Carton Size: 67.5X32.5X4CM

Inner Carton G.W.: 1.8KG

Master Carton Size: 69X34X43CM

Master Carton G.W.: 27KG

Our factory:

LED Panel Light Applications;

The installation ways:

Other Popular Models

Specification Model	QJL-P15	QJL-P22	QJL-P33	QJL-P63	QJL-P66	QJL-P13	QJL-P16
Dimension ( mm)	150x150	200x200	300x300	600x300	600x600	1200x300	1200x600
Power consumption	8w	12W	24W	36W	48W	60W	72W
LED QTY	84 pcs	120 pcs	240 pcs	360 pcs	480 pcs	600 pcs	720 pcs
Input voltage (Driver)	90-135VAC or 175-265VAC /50-60HZ
Output voltage (Driver)	12~14V DC	12~14V DC	24~28V DC	36~42V DC	48~56V DC	60~70V DC	72~84V DC
Constant current	900mA	900mA	900mA	900mA	900mA	900mA	900mA
Efficiency	≥85%
PF	≥0.9
CCT	3000K, 5000K, 6500K
Luminous	560 lm	840 lm	1680 lm	2520 lm	3360 lm	4200 lm	5040 lm
Luminescence efficiency	70 lm/w	70 lm/w	70 lm/w	70 lm/w	70 lm/w	70 lm/w	70 lm/w
Net Weight (includes driver)	0.3KG	0.4KG	0.9KG	1.8KG	3.6KG	3.6KG	7.2KG
