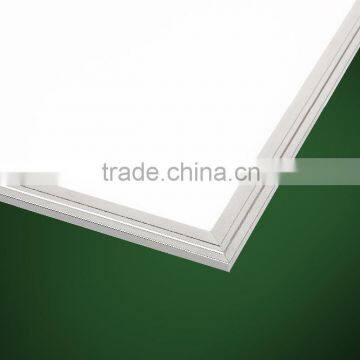

0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA

Shenzhen Cityghost Lighting Ltd.
0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA thumbnail-1
0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA thumbnail-2
0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA thumbnail-3
0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA photo-1
0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA photo-2
0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA photo-3
US$ 90.5 - 95.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD 4014 0.2W
Warranty(Years):
3
Input Voltage(V):
100-240VAC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 4014 0.2W
Warranty(Years) 3
Input Voltage(V) 100-240VAC
Lamp Power(W) 72
Lamp Luminous Flux(lm) 6480
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Other, 3000K/4000K/5000K/6000K
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification CCC, CE, EMC, GS, LVD, SAA
Place of Origin Guangdong, China
Brand Name CITYGHOST
Model Number PC312-72V



Specifications



Dimension  TTLLumenLuminousLED
(MM)ModelInput (AC)Power(LM)EfficacyQ'TY
     (LM/W)
195X195 (200x200)P22-12V170-265V12W936 78 60
295X295
(300X300)		P33-12V12W960 80 60
P33-18V18W1440 80 90
P33-24V24W1920 80 120
595X295
(600X300)		P63-18V18W1458 81 90
P63-24V24W2112 88 120
P63-30V30W2640 88 150
595X595
(600X600)		P66-24V24W2112 88 120
P66-30V30W2640 88 150
P66-36V36W3240 90 180
P66-48V48W4320 90 240
P66-60V60W5400 90 300

620X620
(600X600)

German Standard

P62036V36W3240 90 180
P62048V48W4320 90 240
P62060V60W5400 90 300
1195X195
(1200x200)		PC2-36V36W3132 87 180
PC2-48V48W4176 87 240
1195X295
(1200X300)		PC3-30V30W2550 85 150
PC3-36V36W3060 85 180
PC3-48V48W4320 90 240
PC3-60V60W5400 90 300
1195X595
(1200X600)		PC6-48V48W4320 90 240
PC6-60V60W5400 90 300
PC6-72V72W6480 90 360
PC6-90V90W8100 90 450



Features

  0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



*High efficiencient constant current 0~10V dimmable power supply, 0-100% dimming,  PF> 0.9



*Product benefit

1. Short lead time & customized products-- ensured by our In-house LED SMT machine, material cutting machine etc.

2. Very competitive prices- compared to the same good quality Led products in the market. (I suggest you to disassemble a sample of our panel light, you will see how good our quality is).

3.High quality SMD LED & Driver-- The luminaire lumen output is up to 90 lm/w.

4. All products are certified with TUV-CE(EMC&LVD), RoHS, GS/CB, SAA. 3 Years warranty.

5. No noise, no flickering.

6. Saving 60% electricity cost compared to traditional panel lights.



*Company info

1. Focusing on Led panel light for 7 years (since 2008)

2. 15 Patent designs.

3. Global Manufacturer Certificate -- TÜV on-site checked & approved.

4. Shenzhen Hi-Tech Enterprises Certificate.

5. Customer oriented professional service team for you.



Packaging

    0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



Installation

        0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



Application

      0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



*One stop shopping for Led panel lights

1) By outlook-- Ceiling flat panel / small round / small square, frameless / Invisible series (our patent design)

2) By light effect-- Brightness dimming, CCT dimming, RGB series.

3) By installation-- Recessed / Suspended with wire rope / Spring clips mounted / Push-to-fix mounting frame  (our unique design)



Test Report

      0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



        0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



Certifications

  0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



Factory Tour

    0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



   Delivery & After-Sales Service

     0-10V Dimming LED Panel Light 2x4' 72W TUV CE GS CB RoHS SAA



    FAQ

Q: What is the type of your LED sources?
A: Our high quality SMD Led is 3014 for round panel, 4014 for square panel and 5050 for RGB series. The luminaire luminous efficiency is 80-95 lm/W, CRI>80.



Q: What is the material of your LGP?
A: Our LGP is imported PMMA, "Missubishi" from Japan or "Chimei" from Taiwan with thickness 4mm.



Q: What is the material of your Aluminum frame and diffuser plate?
A: Our Aluminum frame is high quality & durable 6063#. We use fire proof PC diffuser with thickness 1.5mm.



  Remarks

1) Before using the panel light, please check if the local voltage is suitable.

2) Ensure that the connection is secure and correct to avoid short circuit that may lead to damaging.
