Specifications
1. ISO2000/CCC/CE certification2. compact, portable, suitable for welding small workpieces
Product Description

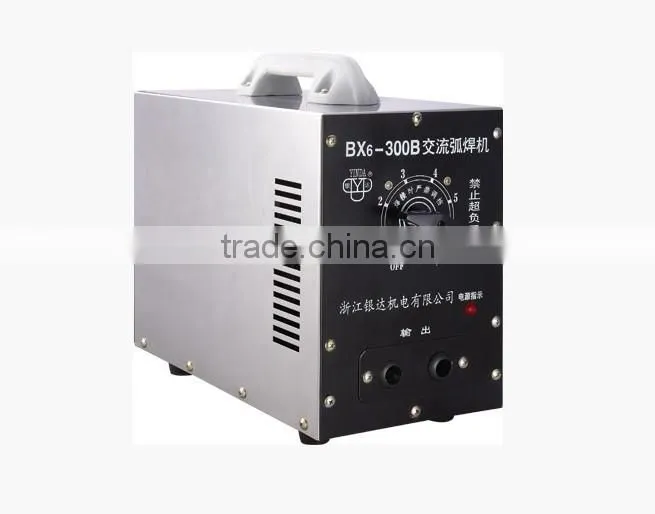

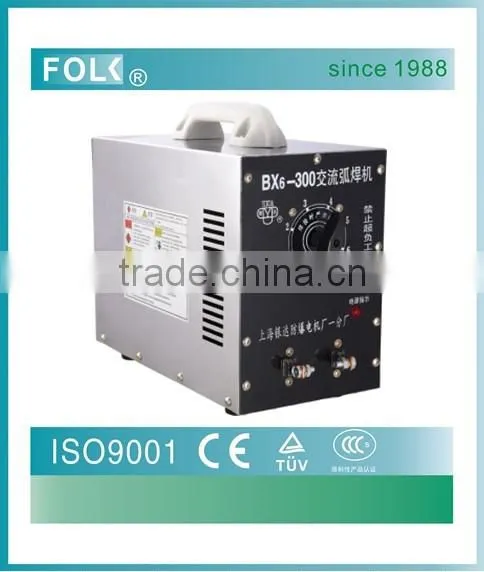

AC Arc Welding Machine
BX6-160 bx6-180 bx6-200 bx6-250 bx6-300 bx6-400 bx6-500 bx6-600
1. Two kinds of input power of 220V and 380V
2. Forced seven--step current adjustment and air--cooling structure.
3. Suit for welding small workieces.
Characteristic and usage:
Uses the new transformer and the unique structure of box, is advantageous for moving, has the handle and foot wheel, is advantageous for moving. Welding material: Low-carbon steel, high-tensile steel, medium-carbon steel, Low-alloy strural steel
Limited conditions:
To use the machine better, please observe the following condition: A ambient temperature is situated between-10º C and 40º C; B operational site altitude above sea level does not surpass 1000M. C In the surroun -ding air dust, the acid, the caustic gas or the matter and so on do not surpass the normal content, except in the welding process. D Not suitably in the air with salt to use long time. E The voltage undulation supplied by power is in rated value± 10%. F The operational site wind power is lower than for 1.5m /s. G Does not suit to use or work in the rain.
WET, ISO9001: 2000 quality certificates.
| TYPE | VOLTAGE(V) | RATED INPUT CAPACITY(KVA) | NO LOAD VOLTAGE (V) | RATED CURRENT(A) | CURRENT ADJUSTABLE RANGE | RATED DUTY CYCLE (%) |
| BX6-160 | 220/380 | 10.6 | 52 | 160 | 60-160 | 20 |
| BX6-180 | 220/380 | 11.5 | 52 | 180 | 70-180 | 20 |
| BX6-200 | 220/380 | 12.5 | 52 | 200 | 75-200 | 20 |
| BX6-250 | 220/380 | 15.6 | 52 | 250 | 80-250 | 20 |
| BX6-300 | 220/380 | 16.5 | 55 | 300 | 90-300 | 20 |
| BX6-400 | 220/380 | 19.5 | 55 | 400 | 100-400 | 20 |
| BX6-500 | 220/380 | 21 | 55 | 500 | 100-500 | 20 |
| BX6-600 | 220/380 | 22.5 | 65 | 600 | 110-600 | 20 |
| BX6-700 | 220/380 | 25.8 | 65 | 700 | 125-700 | 20 |
| BX6-800 | 220/380 | 27.5 | 65 | 800 | 125-800 | 20 |
| BX6-900 | 220/380 | 30.6 | 65 | 900 | 130-900 | 20 |
| BX6-1000 | 220/380 | 33.2 | 65 | 1000 | 130-1000 | 20 |
| BX6-1200 | 220/380 | 35.5 | 65 | 1200 | 130-1200 | 20 |
