China Manufacturer API 5CT NUE 4-1/2" P110 Tubing Coupling for Oilfield
- Shanghai Tianjin Qingdao
- T/T Credit Card
You May Like
-
Factory Low Price API 5ct NUE/EUE Tubing Coupling in J55/K55/N80/P110 Grade
-
China Manufacturer API 5ct 2 7/8 K55/N80/P110 Tubing Coupling
-
China Api 5ct 2 7/8" J55/K55 EUE Tubing Coupling
-
Hot Sale ! API 5CT 3 1/2" N80 EUE Tubing Collar/steel Nipple
-
API 5CT 4 1/2" J55/K55 STC Casing Couplings for Oilfield
-
Gold Supplier API 5CT J55 LTC OIL CASING COUPLING
Product Details
| Structure | Other, coupling | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Standard | Material | Other, J55,K55,N80,L80,P110 | |
| Brand Name | BLT | Place of Origin | Henan, China | |
| Model Number | 4 -1/2" P110(NUE) |
Product Description

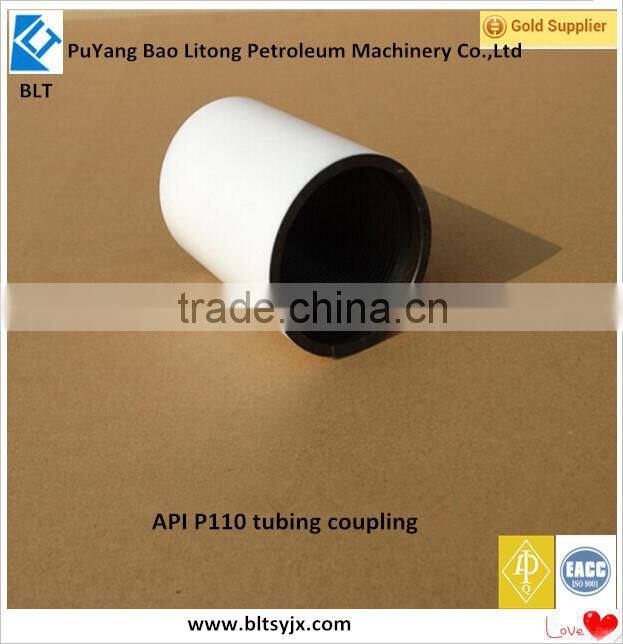

China Manufacturer API 5CT NUE 4-1/2" P110 Tubing Coupling for oilfield
Feature
1.Std Ref.: API 5CT 5B ISO9001, 2008
2.Grade: J55,K55, N80-1,N80-Q,L80,C90,P110
3.Size: tubing coupling 1.9"to4-1/2", casing coupling 4-1/2"to13-3/8"
Technical Parameter
China Manufacturer API 5CT NUE 4-1/2" P110 Tubing Coupling for oilfield
Size and Specifications
| ||||
Descriptiongs and size | Type of Tread | O.D*L(mm) | Weight(kg) | |
api 5ct P110 NUE tubing coupling for hot sale
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
2-3/8" | EUE | 77.80*123.82 | 1.55 | |
2-7/8" | NUE | 88.90*130.35 | 2.34 | |
2-7/8" | EUE | 93.17*130.35 | 2.4 | |
3-1/2" | NUE | 114.30*146.05 | 3.17 | |
3-1/2" | EUE | 120.65*146.05 | 4.1 | |
4" | NUE | 120.65*146.05 | 4.35 | |
4" | EUE | 127.00*152.40 | 4.82 | |
4-1/2" | NUE | 132.08*155.58 | 4.89 | |
4-1/2" | EUE | 141.30*158.75 | 6.05 | |
1. Name: tubing couplings | ||||
2. Std Ref: API 5CT | ||||
3.API couplings for oil tubing and casing. | ||||
4.Material:J55,K55,N80,L80,C90,P110,N80-1,N80-Q | ||||
5. Size:tubing coupling from 1.9"to 4-1/2" | ||||
6. Type:NU,EU(tubing coupling) | ||||
7.Surface treatment: whole phosphating, or inside phosphating and outside coating | ||||
8.We can supply tubing adapters per clients' request | ||||
9.Packing :by carton,wooden case ,wooden pallet or by customer requests | ||||
Package in detail
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
EUE tubing coupling
| 1.9 | 2.500 | 3.875 | 0.84 | 2352 | 1976 |
| 2 3/8 | 3.063 | 4.875 | 1.55 | 1152 | 1786 | |
| 2 7/8 | 3.668 | 5.250 | 2.40 | 800 | 1920 | |
| 3 1/2 | 4.500 | 5.750 | 4.10 | 512 | 1229 | |
| 4 | 5.000 | 6.000 | 4.82 | 392 | 1890 | |
| 4 1/2 | 5.563 | 6.250 | 6.05 | 392 | 2372 |
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
NUE tubing couplig
| 1.9 | 2.200 | 3.750 | 0.56 | 3468 | 1943 |
| 2 3/8 | 2.875 | 4.250 | 1.28 | 1690 | 2164 | |
| 2 7/8 | 3.500 | 5.125 | 2.34 | 800 | 1872 | |
| 3 1/2 | 4.250 | 5.625 | 3.71 | 512 | 1900 |
Certification

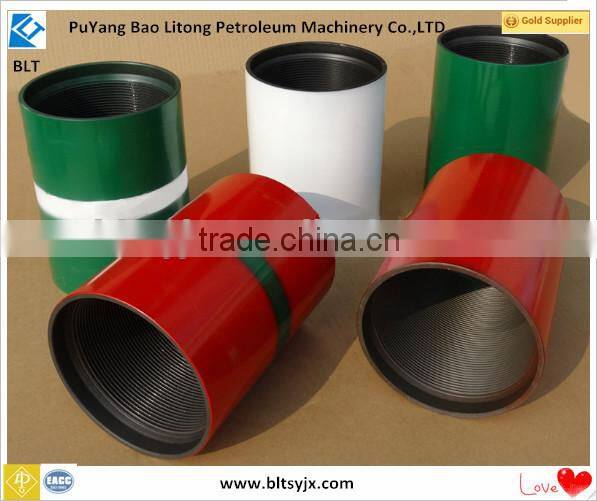

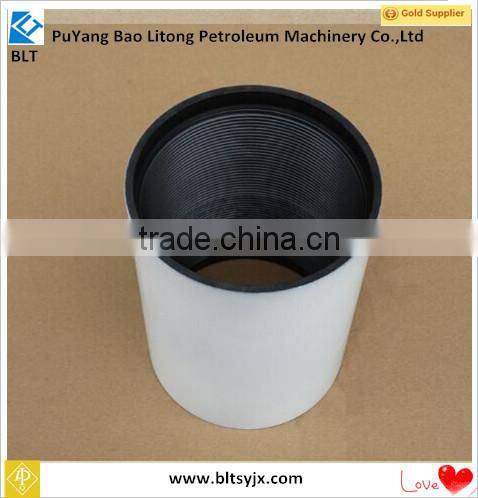

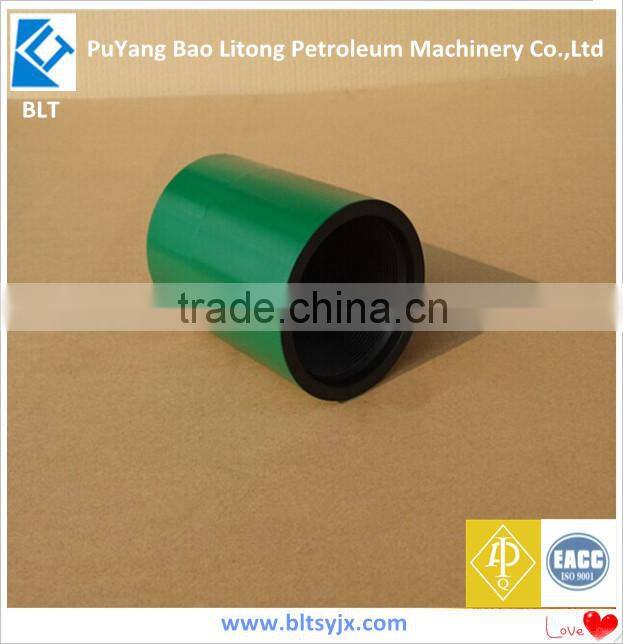

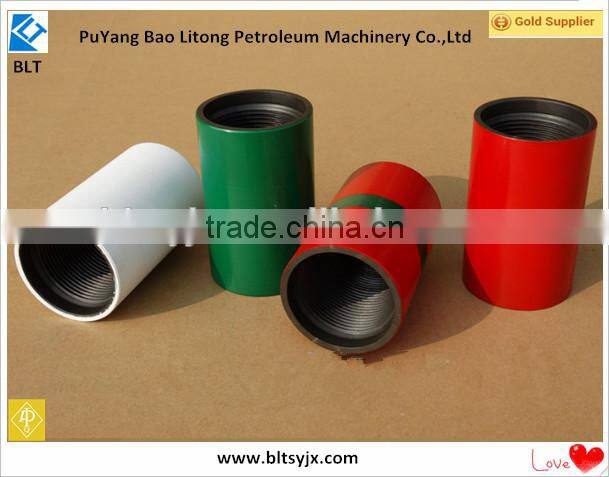

Detailed Pictures
Production process

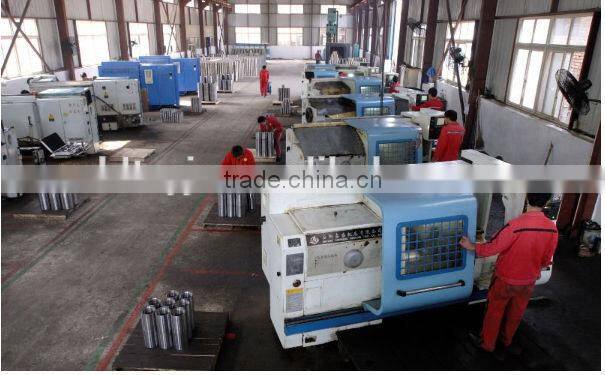

Workshop photo
