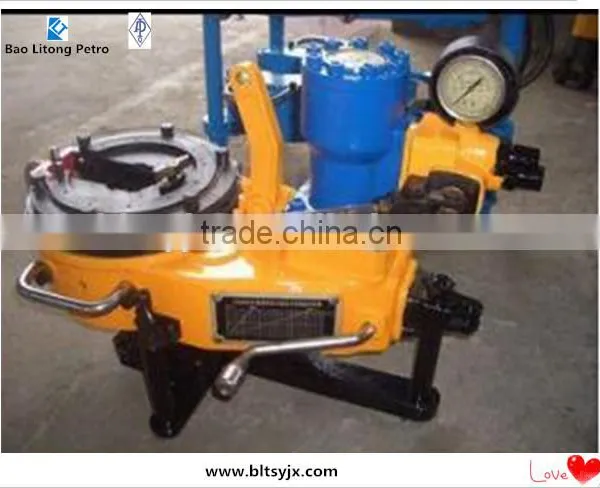

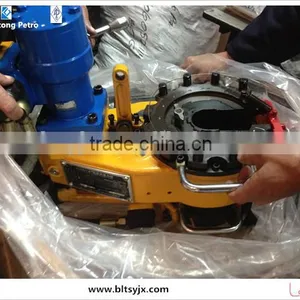

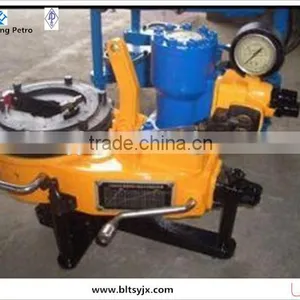

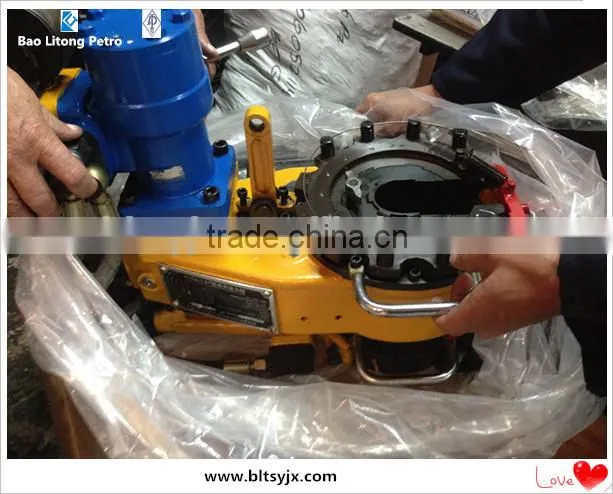

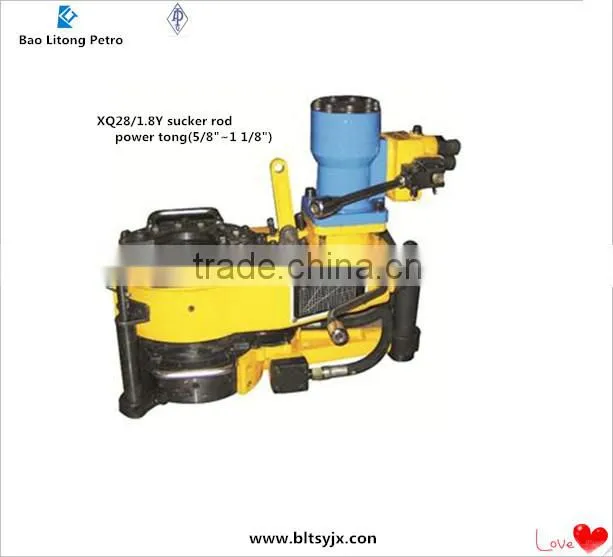

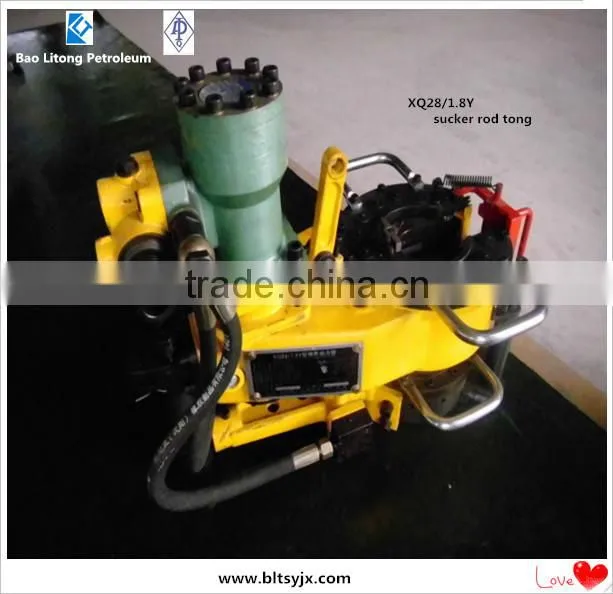

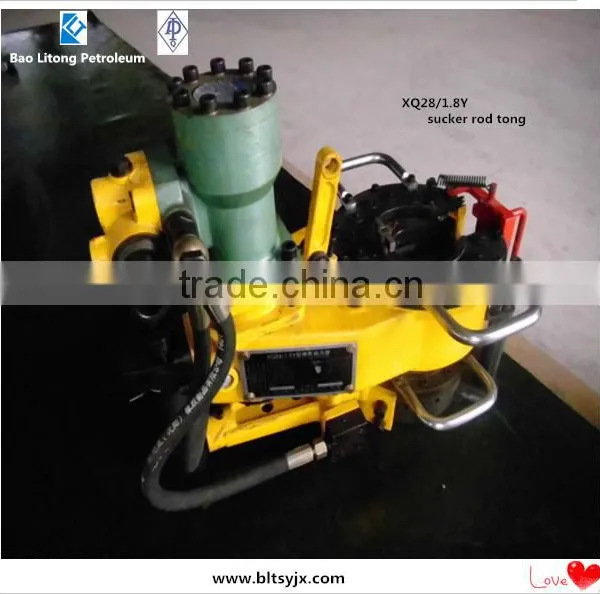

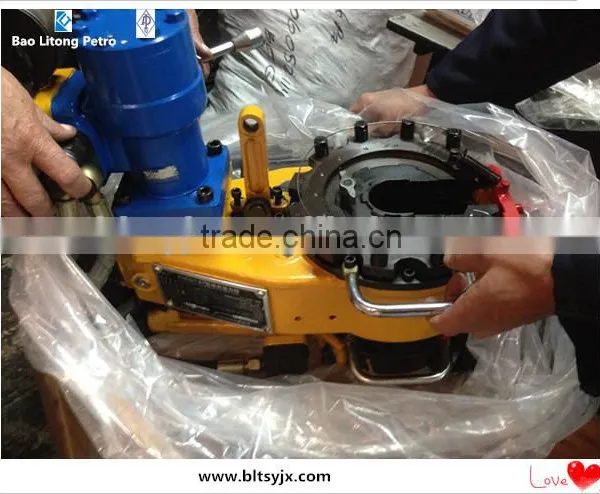

China supplier XQ28/1.8Y sucker rod power tong
Detail Informations
Sucker rod power tong is an other special purpose machinery to load or unload all kinds of sucker rod in oil field workover operations. The features are as follows,

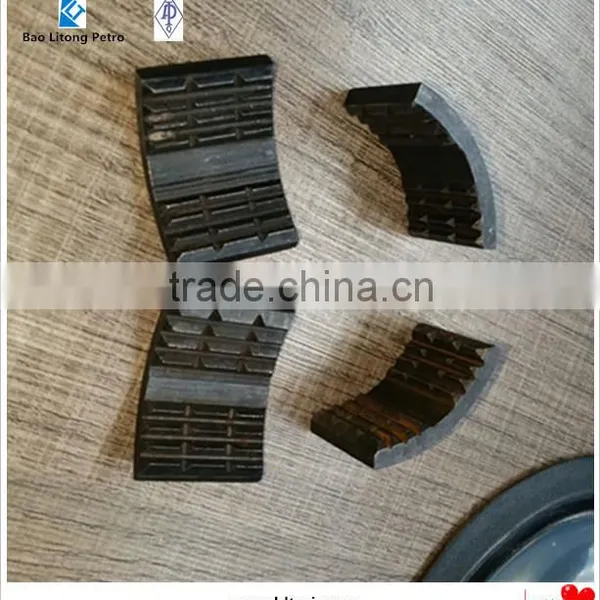

1.According to various specifications of sucker rod equipped with corresponding jaw plate
2.can choose torque control valves
3.good quality and reasonable price
Technical parameters
Model |
XQ28/1.8 |
XQ28/2.6 |
The range of master tong |
Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube 5/8"~11/8" |
Sucker rod GYG 16 19 22 25 28 5/8"~11/8" |
the range of Back tong |
Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube 5/8"~11/8" |
Sucker rod GYG 16 19 22 25 28 5/8"~11/8" |
High gear rated torque |
700 N.m |
1000 N.m |
Low gear rated torque |
1800 N.m |
2600 N.m |
High gear rated speed |
104 r/min |
98 r/min |
Low gear rated speed |
40 r/min |
32 r/min |
Rated the system pressure |
10 MPa |
10 MPa |
Maximum supply oil |
65 L/min |
80 L/min |
|
Overal dimension L×W×H(mm) |
543×334×404 |
670×383×490 |
Removed quality(including back clamp) |
105 kg |
100kg 220lbs |
For more informations,please feel free to contact us by
SKYPE: lindacheng98
Mobile:0086-13912509378
