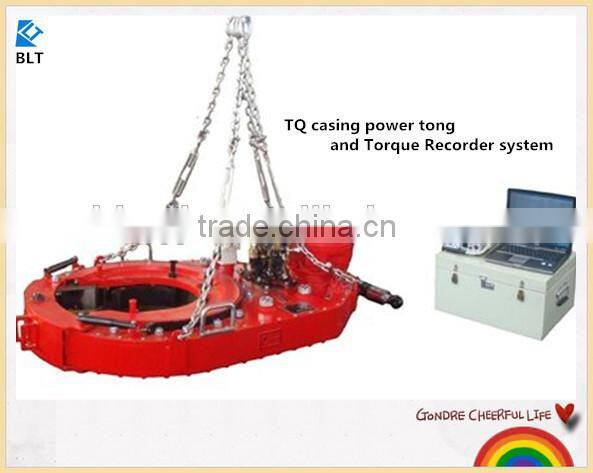

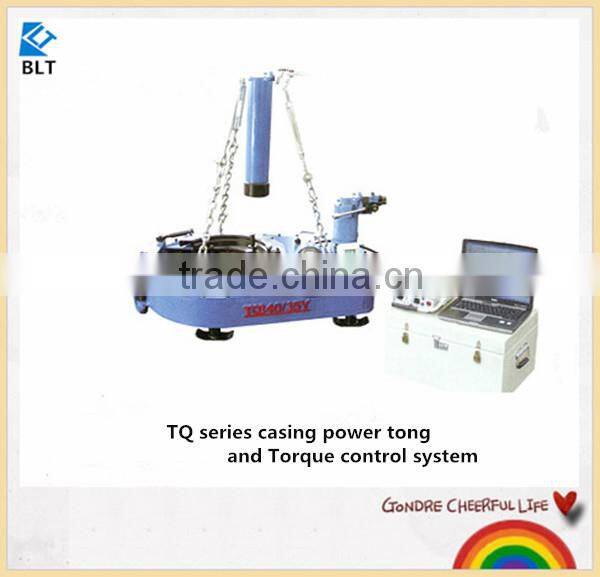

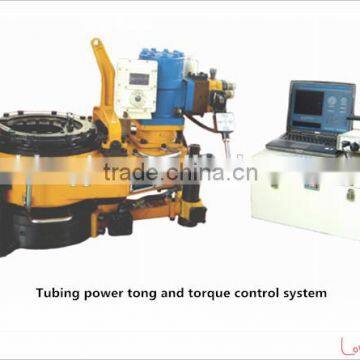

China manufacturer! Torque control systems for hydraulic casing power tong
1. Features
*Elastic body torque sensor is used to measure torque.the sensor is a strain sensor,having stable zero, high precision and high anti-interference ability.
*Coordinate with electromagnetic unloading valves in hydraulic power station so as to realize any automatic control of make-up torque.
*High precision, high-speed optical encoder records the make-up cyclomatic number.
*Display, control and record any make-up process data as well as record them at disc for query in the future.
*Carry out multiple page printing. An A4 paper may be printed with one or eight figures.
2. Main Technical Parameters
*Supply voltage: 220VAC±15%, 50~60 Hz (in recreational vehicle)
*Operating voltage: 24VDC (field power supply)
*Power consumption: 200W Max
*Measurement range: TQ340-35Y 36800N.m
*Control range: May be set.
*Detection accuracy: ≤2.5%
*Unloading discharge: 80L/min;
*Unloading response: 20ms;
*Ambient temperature: -20℃~+65℃;
*Environmental humidity: 10% to 80% RH (without any condensation).
*Volume Portable computer: 340×280×38
*Power signal converter: 210×75×270
*Torque display: 148×126×48.
*Packing volume: 600×450×320
*Weight: 50KG (approximation)
