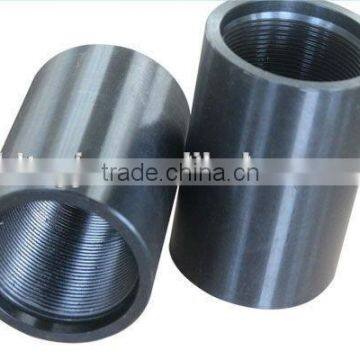

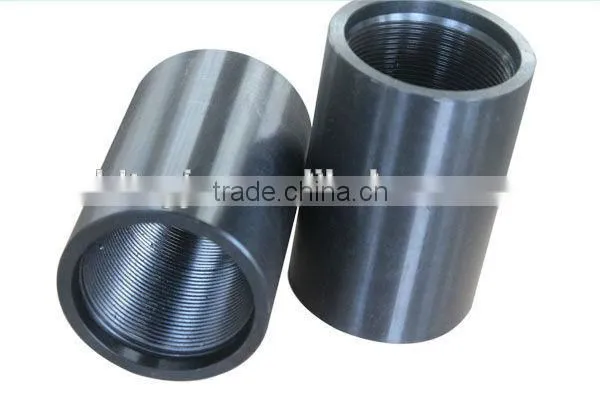

Hot Sale! API 2 7/8" N80 Steel Female Threaded Coupling EUE/NUE

Hot Sale! API 2 7/8" N80 Steel Female Threaded Coupling EUE/NUE thumbnail-1
Hot Sale! API 2 7/8" N80 Steel Female Threaded Coupling EUE/NUE photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Structure:
Universal
Flexible or Rigid:
Rigid
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Puyang Bao Litong Petroleum Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Universal
Flexible or Rigid Rigid
Standard or Nonstandard Standard
Material Other, J55,K55,N80,L80,P110
Brand Name BLT
Place of Origin Henan, China
Model Number 2 7/8" N80(NUE)

Specifications

API N80 Steel female threaded coupling EUE/NUE
1.Material:J55/K55/N80/L80/P110
2.Std ref:API 5CT & 5B
3.Phosphating,blueing

Hot sale!  API 2 7/8" N80 Steel female threaded coupling EUE/NUE



Features:



1.Type:coupling

2.Material:J55, K55, N80-1, N80-Q, L80, C90, P110

3.Size:from 2-3/8" to 4-1/2"
4.Std ref:API 5CT&5B

5.Placement:female

6.Technics:hot rolling

7.Surface treatment: Whole phosphating, or inside phosphating and outside coating

8.Packing: By carton, wooden case, wooden pallet, or by requirements of customers



Technical Parameters:



Name

Thread

Specifications

O.D*L(mm)

Weight(kg)

Load carring width(mm)

API 5CT Steel Tubing adaptor

NU

2-3/8"TBG

73.02*107.95

1.28

4.76

2-7/8"TBG

88.90*130.18

2.34

4.76

3-1/2"TBG

107.95*142.88

3.71

4.76

4"TBG

120.65*146.05

4.35

4.76

4-1/2"TBG

132.08*155.58

4.89

4.76

EU

2-3/8"UPTBG

77.80*123.82

1.55

3.97

2-7/8"UPTBG

93.17*133.35

2.4

5.56

3-1/2"UPTBG

114.30*146.05

4.1

6.35

4"UPTBG

127.00*152.40

4.82

6.35

4-1/2"UPTBG

141.30*158.75

6.05

6.35

1.Advantage:good sealing

2.Size:from 2-3/8"to 4-1/2"

3.Standard reference:API 5CT & 5B

4.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q

5.Surface treatment:whole phosphating,or inside phosphating and outside coating

6.Package:by carton, wooden case, wooden pallet or by customer request





Package informations

Specificaiton Tubing Size OD (inches) Coupling Size OD   (inches) Length (inches) Weight per Coupling (kgs ) Palletized Carton Quantity Palletized Carton Weight
(pieces) (Kgs)

  EUE tubing coupling



 1.9 2.500 3.875 0.84 2352 1976
2 3/8 3.063 4.875 1.55 1152 1786
2 7/8 3.668 5.250 2.40 800 1920
3 1/2 4.500 5.750 4.10 512 1229
4 5.000 6.000 4.82 392 1890
4 1/2 5.563 6.250 6.05 392 2372





Specificaiton Tubing Size OD (inches) Coupling Size OD   (inches) Length (inches) Weight per Coupling (kgs ) Palletized Carton Quantity Palletized Carton Weight
(pieces) (Kgs)

NUE tubing couplig



 1.9 2.200 3.750 0.56 3468 1943
2 3/8 2.875 4.250 1.28 1690 2164
2 7/8 3.500 5.125 2.34 800 1872
3 1/2 4.250 5.625 3.71 512 1900
4 4.750 5.750 4.35 392 1706
4 1/2 5.200 6.125 4.89 392 1917





Certificaitons

Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE

Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE

Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE



 Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE



Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE



Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE

Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE

Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE



Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE

Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE



Hot sale! API 2 7/8" N80 Steel female threaded coupling EUE/NUE



RFQ for your information





1. Q : are you a factory or a trade company?

A : Yes,we are a specilized petroleum machinery products factory for 12 years



2. Q:Where are your factory located in?how can i reach it?

A: our factory is located in PuYang City,HeNan province,you can take the High-speed

rail from Beijing or Shanghai , or by plane to Zhengzhou city.



3. Q: do you have API 5CT certification or other certification?

A: we have API 5CT &API 11b certification ,and ISO 9001 quality control certification



4.Q:for the quality control,how do your factroy control?

A: Firstly,all our seamless tubes,such as J55,K55,N80,L80,P110 are from china biggest

seamless factory,so Tensile Strength & Yield Strength can be assured



A: Secondly,each procedure strictly controlled,and the threads are conntrolled by lathe

and import molding cutter.
