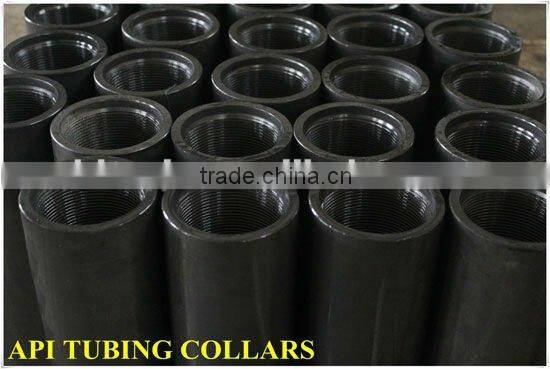

China Manufacturer ! Api Seamless Steel Pipe Sleeve Coupling
- Tianjin Qingdao Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Material | Other, N80 steel | Technics | Other, hot rolling | |
| Type | Coupling | Place of Origin | Henan, China | |

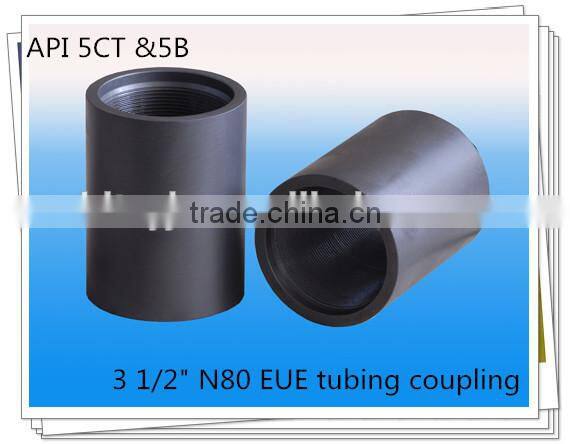

| Model Number | 3 1/2" N80 EUE | Brand Name | BLT | |
| Connection | Female | Shape | Equal | |
| Head Code | Other, Round |
Product Description
Specifications
api seamless steel pipe sleeve coupling1..Std Ref:API 5CT&5B
2.Material:J55,K55,N80,P110
3.Size:1.9" to 4-1/2"
4.Hot rolled
api seamless steel pipe sleeve coupling
Detailed product description
Our company is a leading petroleum machinery company, we maily manufacture and sell couplings, we can product different types of couplings , sucker rod coupling, tubing coupling, and casing coupling. With the advanced CNC lathe processing technology, we can manufacture various types of tubing and casing couplings. And we have got the API international quality system authentication. According to the production process is divided into couplings processing workshop and phosphating workshop. To ensure the products’ quality, we our company has established business relations with many large steel companies. The accuracy of the thread size is requested strictly according to the API standard. We’ll maintain the quality and reputation of products, and ensure the oil pipe, the connection for strength and sealing and so on. Besides, I believe you'll enjoy an all-round service if you coorperate with us.
Features:
1.Product Name:api seamless steel pipe sleeve coupling
2.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
3.Size:from 2-3/8" to 4-1/2"
3.Type:NUE EUE
4.Std ref:API 5CT&5B
5.Placement:female
6.Delivery time:15-30 working days after receipt of advanced payment
7.Surface treatment: Whole phosphating, or inside phosphating and outside coating
8.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
Name | Thread | Specifications | O.D*L(mm) | Weight(kg) | Load carring width(mm) |
API 5CT Tubing coupling | NU | 2-3/8"TBG | 73.02*107.95 | 1.28 | 4.76 |
2-7/8"TBG | 88.90*130.18 | 2.34 | 4.76 | ||
3-1/2"TBG | 107.95*142.88 | 3.71 | 4.76 | ||
4"TBG | 120.65*146.05 | 4.35 | 4.76 | ||
4-1/2"TBG | 132.08*155.58 | 4.89 | 4.76 | ||
EU | 2-3/8"UPTBG | 77.80*123.82 | 1.55 | 3.97 | |
2-7/8"UPTBG | 93.17*133.35 | 2.4 | 5.56 | ||
3-1/2"UPTBG | 114.30*146.05 | 4.1 | 6.35 | ||
4"UPTBG | 127.00*152.40 | 4.82 | 6.35 | ||
4-1/2"UPTBG | 141.30*158.75 | 6.05 | 6.35 |

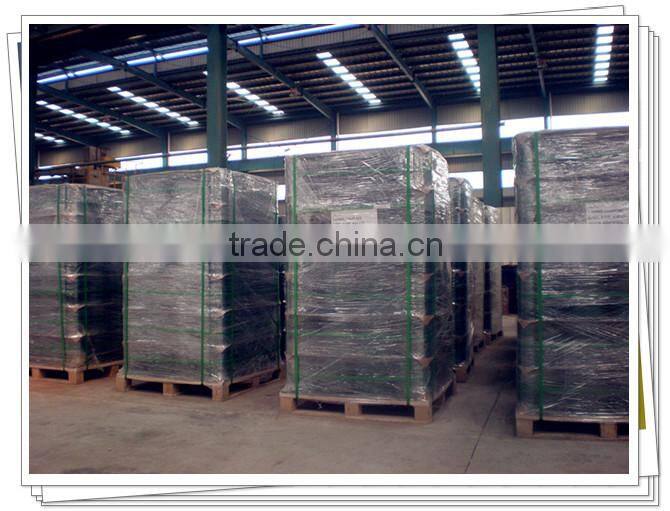

Package informations
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
| API EUE tubing couplings (J55,K55, N80,L80,P110) | 1.9 | 2.188 | 3.750 | 0.84 | 2800 | 2352 |
| 2 3/8 | 3.036 | 4.875 | 1.55 | 1444 | 2239 | |
| 2 7/8 | 3.668 | 5.500 | 2.40 | 792 | 1901 | |
| 3 1/2 | 4.500 | 5.750 | 4.10 | 448 | 1837 | |
| 4 | 4.750 | 5.750 | 4.82 | 320 | 1543 | |
| 4 1/2 | 5.563 | 6.500 | 6.05 | 252 | 1525 |
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
| API NUE tubing couplings (J55,K55,N80,L80,P110) | 1.9 | 2.188 | 3.750 | 0.56 | 2900 | 1624 |
| 2 3/8 | 2.875 | 4.500 | 1.28 | 1512 | 1936 | |
| 2 7/8 | 3.500 | 5.500 | 2.34 | 800 | 1872 | |
| 3 1/2 | 4.250 | 5.625 | 3.71 | 502 | 1863 | |
| 4 | 4.726 | 5.750 | 4.35 | 382 | 1662 | |
| 4 1/2 | 5.200 | 6.500 | 4.89 | 252 | 1233 |
