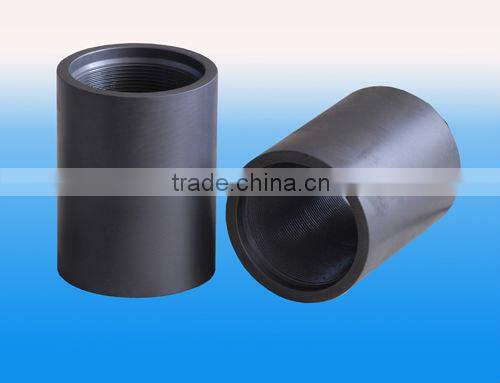

China manufacturer API 2 7/8 N80/L80 EUE thread connection
Detailed Product Description
Our company manufactures and sells tubing couplings, and we have got API Certificate for tubing couplings. tubing coupling is a connection for oilfield, the features are as follows:
1.Name:API 2 7/8 N80/L80 EUE thread connection
2.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
3.Size:from 2-3/8" to 4-1/2"
4.Placement:female
5.Advantage:OEM Service
6.Surface treatment: Whole phosphating, or inside phosphating and outside coating
7.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
Technical Parameters
Name |
Size |
Type of Thread |
O.D*L(mm) |
Weight(kg) |
Load carring width(mm) |
Standard reference |
|
API 2 7/8 N80/L80 EUE thread connection |
2-3/8"TBG |
NU |
73.02*107.95 |
1.28 |
4.76 |
API 5CT 5B |
2-3/8"UPTBG |
EU |
77.80*123.82 |
1.55 |
3.97 |
API 5CT 5B |
|
2-7/8"TBG |
NU |
88.90*130.18 |
2.34 |
4.76 |
API 5CT 5B |
|
2-7/8"UPTBG |
EU |
93.17*133.35 |
2.4 |
5.56 |
API 5CT 5B |
|
3-1/2"TBG |
NU |
107.95*142.88 |
3.71 |
4.76 |
API 5CT 5B |
|
3-1/2"UPTBG |
EU |
114.30*146.05 |
4.1 |
6.35 |
API 5CT 5B |
|
4"TBG |
NU |
120.65*146.05 |
4.35 |
4.76 |
API 5CT 5B |
|
4"UPTBG |
EU |
127.00*152.40 |
4.82 |
6.35 |
API 5CT 5B |
|
4-1/2"TBG |
NU |
132.08*155.58 |
4.89 |
4.76 |
API 5CT 5B |
|
4-1/2"UPTBG |
EU |
141.30*158.75 |
6.05 |
6.35 |
API 5CT 5B |
Package Informations
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
|
EUE tubing coupling
|
1.9 | 2.500 | 3.875 | 0.84 | 2352 | 1976 |
| 2 3/8 | 3.063 | 4.875 | 1.55 | 1152 | 1786 | |
| 2 7/8 | 3.668 | 5.250 | 2.40 | 800 | 1920 | |
| 3 1/2 | 4.500 | 5.750 | 4.10 | 512 | 1229 | |
| 4 | 5.000 | 6.000 | 4.82 | 392 | 1890 | |
| 4 1/2 | 5.563 | 6.250 | 6.05 | 392 | 2372 |
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
|
NUE tubing couplig
|
1.9 | 2.200 | 3.750 | 0.56 | 3468 | 1943 |
| 2 3/8 | 2.875 | 4.250 | 1.28 | 1690 | 2164 | |
| 2 7/8 | 3.500 | 5.125 | 2.34 | 800 | 1872 | |
| 3 1/2 | 4.250 | 5.625 | 3.71 | 512 | 1900 |
