Specifications
API 5CT pipe fitting couplings2.Type:pipe fitting
3.Material:N80 steel
4.Std Rfc:API 5CT & 5B
5.OEM Service offered

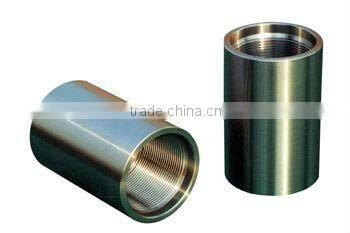

API 5CT pipe fitting couplings
Detailed Product Description
Our company manufactures and sells tubing couplings, and we have got API 5CT ificate for tubing couplings. tubing coupling is a connection for oilfield, the features are as follows:
1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
2.Size: tubing coupling from 2-3/8" to 4-1/2"
3.Type:NU , EU
4.Surface treatment: Whole phosphating, or inside phosphating and outside coating
5.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
Technical Parameters
Name | Size | Type of Thread | O.D*L(mm) | Weight(kg) | Load carring width(mm) | Standard reference |
api 5ct pipe fitting couplings | 2-3/8"TBG | NU | 73.02*107.95 | 1.28 | 4.76 | API 5CT 5B |
2-3/8"UPTBG | EU | 77.80*123.82 | 1.55 | 3.97 | API 5CT 5B | |
2-7/8"TBG | NU | 88.90*130.18 | 2.34 | 4.76 | API 5CT 5B | |
2-7/8"UPTBG | EU | 93.17*133.35 | 2.4 | 5.56 | API 5CT 5B | |
3-1/2"TBG | NU | 107.95*142.88 | 3.71 | 4.76 | API 5CT 5B | |
3-1/2"UPTBG | EU | 114.30*146.05 | 4.1 | 6.35 | API 5CT 5B | |
4"TBG | NU | 120.65*146.05 | 4.35 | 4.76 | API 5CT 5B | |
4"UPTBG | EU | 127.00*152.40 | 4.82 | 6.35 | API 5CT 5B | |
4-1/2"TBG | NU | 132.08*155.58 | 4.89 | 4.76 | API 5CT 5B | |
4-1/2"UPTBG | EU | 141.30*158.75 | 6.05 | 6.35 | API 5CT 5B |
Package informations
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
API 5CT Pipe fitting coupling(EUE)
(K55 N80,L80,P110) | 1.9 | 2.500 | 3.875 | 0.84 | 2352 | 1976 |
| 2 3/8 | 3.063 | 4.875 | 1.55 | 1152 | 1786 | |
| 2 7/8 | 3.668 | 5.250 | 2.40 | 800 | 1920 | |
| 3 1/2 | 4.500 | 5.750 | 4.10 | 512 | 1229 | |
| 4 | 5.000 | 6.000 | 4.82 | 392 | 1890 | |
| 4 1/2 | 5.563 | 6.250 | 6.05 | 392 | 2372 |
| Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
| (pieces) | (Kgs) | |||||
API 5CT NUE Pipe fitting couplings
(J55,K55,N80,L80,P110) | 1.9 | 2.200 | 3.750 | 0.56 | 3468 | 1943 |
| 2 3/8 | 2.875 | 4.250 | 1.28 | 1690 | 2164 | |
| 2 7/8 | 3.500 | 5.125 | 2.34 | 800 | 1872 | |
| 3 1/2 | 4.250 | 5.625 | 3.71 | 512 | 1900 | |
| 4 | 4.750 | 5.750 | 4.35 | 392 | 1706 | |
| 4 1/2 | 5.200 | 6.125 | 4.89 | 392 | 1917 |
RFQ for your information
1. Q : are you a factory or a trade company?
A : Yes,we are a specilized petroleum machinery products factory for 12 years
2. Q:Where are your factory located in?how can i reach it?
A: our factory is located in PuYang City,HeNan province,you can take the High-speed
rail from Beijing or Shanghai , or by plane to Zhengzhou city.
3. Q: do you have API 5CT certification or other certification?
A: we have API 5CT &API 11b certification ,and ISO 9001 quality control certification
4.Q:for the quality control,how do your factroy control?
A: Firstly,all our seamless tubes,such as J55,K55,N80,L80,P110 are from china biggest
seamless factory,so Tensile Strength & Yield Strength can be assured
A: Secondly,each procedure strictly controlled,and the threads are conntrolled by lathe
and import molding cutter.
