1P 2P 3 P 4P Mini Breaker Circuit C60N K60N C65N
Application:
This series circuit breaker belongs to the advanced level of the nineties in the world instead of the old generation of C45N. They have protective functions against short circuit and overload, and are used in lighting distribution systems in industry, commerce and dwelling, and protect fractional electric motors. They also have many merits of high breaking capacity,good reliability of sensitive action, convient multi-pole assorting, long using life etc. They are mainly adapted of the circuit of AC50/60Hz, 230V in single pole, 400V in double, three of four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal conditions. The products are produced according to IEC60898.
SPECIFICATIONS:
| Number of Poles | 1P,2P,3P,4P | |
| Rated current(A) | 1,2,3,4,6,10,16,20,25,32,40 | 50,63 |
| Breaking Capacity(A) | 6000 | 4500 |
| Rated Voltage_(V) | 230/400 | |
| Rated Frequency | 50/60Hz | |
| Endurance | ≥4000 | |
| Circumstance temperature | -5℃~+40℃ | |
| Electrical Life | No less than 6000 operations | |
| Mechanical Life | (O-C) no less than 20000 operations | |
| Protection degree | IP20 | |

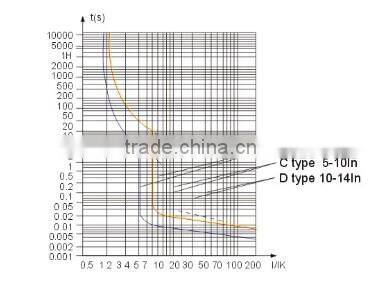

Characteristic Curve:
K60N 1P

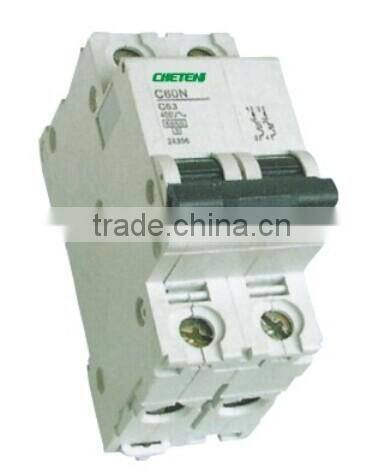

C60N 2P

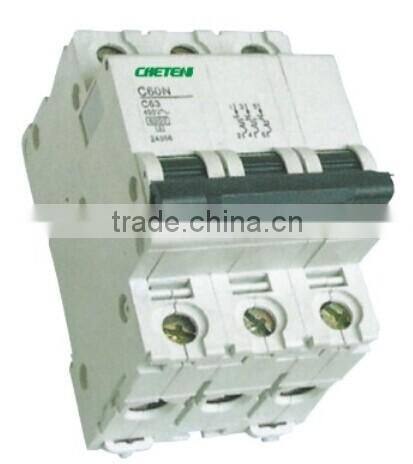

C60N 3P

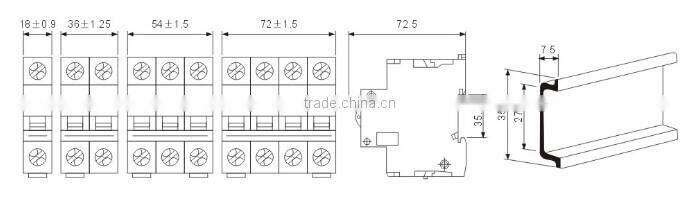

Dimensions:
