Help CenterLSN Series Low Voltage Mini Circuit Breaker/ MCB Circuit Breaker
Related Products
-
AEG91 Miniature Circuit BreakerUS$ 0.88 - 0.88MOQ: 1 Unit -
L7/F&G Miniature Circuit BreakerUS$ 0.6 - 1MOQ: 100 Units
-
AEG Mini Circuit Breaker 6A-63AUS$ 0.6 - 1MOQ: 1000 Units
-
Smart Electric CapacitorUS$ 150 - 250MOQ: 10 Units
-
SMICO/Power Connectors/Bolted Aluminium Connector/GLL SeriesUS$ 0.3 - 2MOQ: 100 Pieces
Specifications
Mini Circuit Breaker1.Rated voltage:400V
2.Rated current:2A-63A
3.Application: Low voltage
Introduction
Mini circuit breaker is suitable for the location of AC 50Hz or 60Hz, rated operating voltage 230V or below, rated current 63A or below, in order to protect illuminating and distribution circuit and equipment used in the office building, residential area and similar building against overload and short-circuit, besides, it also can be used to switch circuit infrequently under normal condition.
Feature
1.The product is neoteric in structure, light in weight, reliable and excellent in performance.
2.It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics

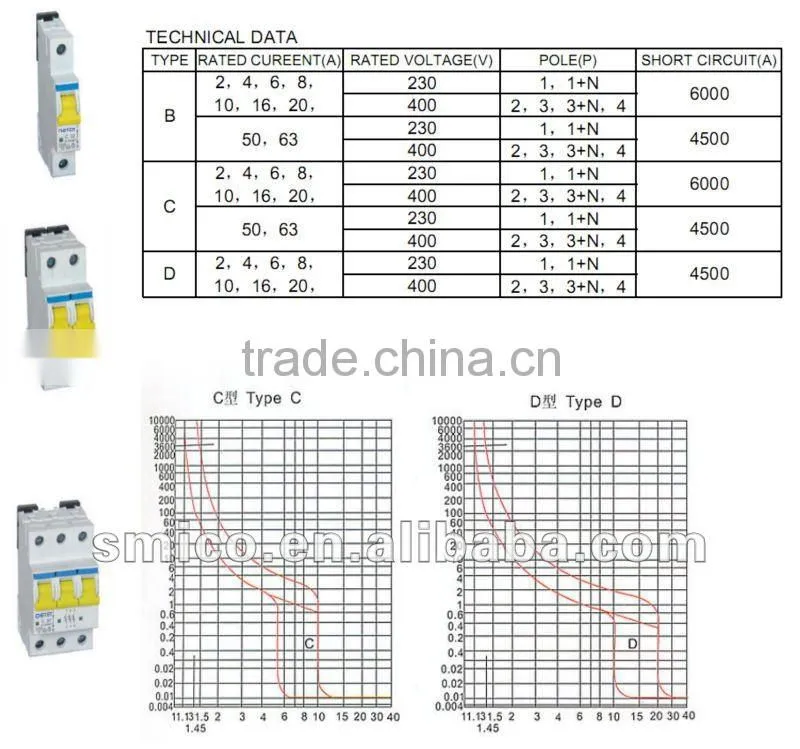

Technical data
Breaking Capacity (A) |
4500 |
Rated Voltage (V) |
230/400 |
Rated Frequency |
50/60Hz |
Endurance |
≥4000 |
Circumstance Temperature |
-5iC ~ +40iC |
Electrical Life |
no less than 6000 operations |
Mechanical Life |
(O-C) no less than 20000 operations |
Protection Degree |
IP20 |
