Specifications

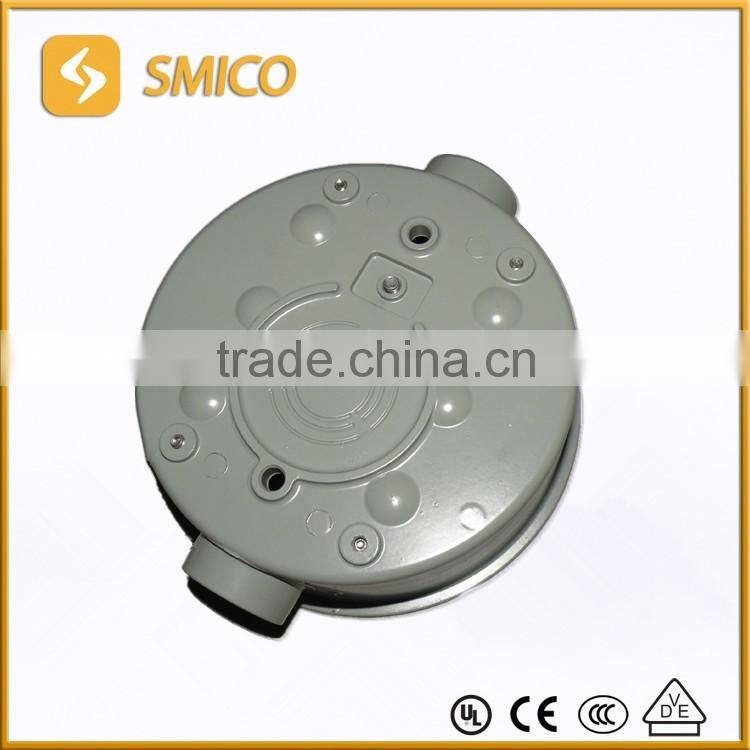

Round Meter Socket 100A1. 100Amps,120~240VAC,
2. Single phase,4 terminal,2 or 3 wire,Fix hub size:1/2",3/4",1"1-1/4
3.High
Specifications

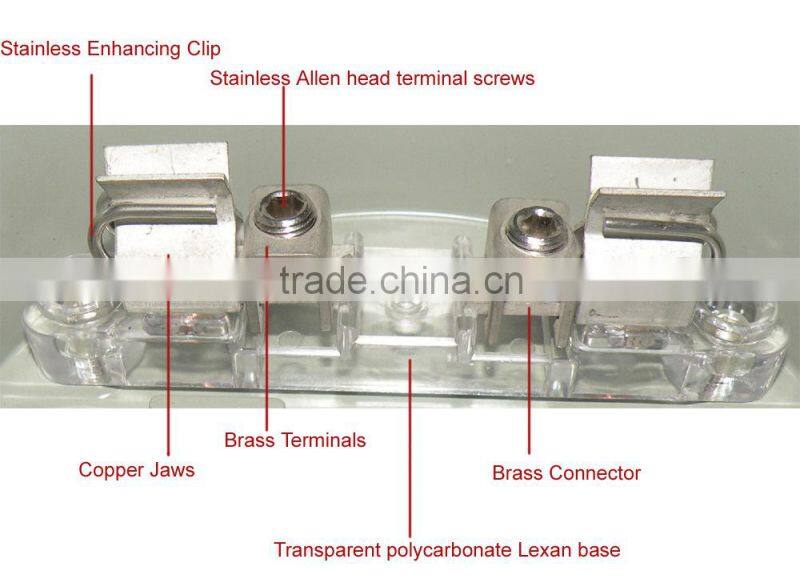

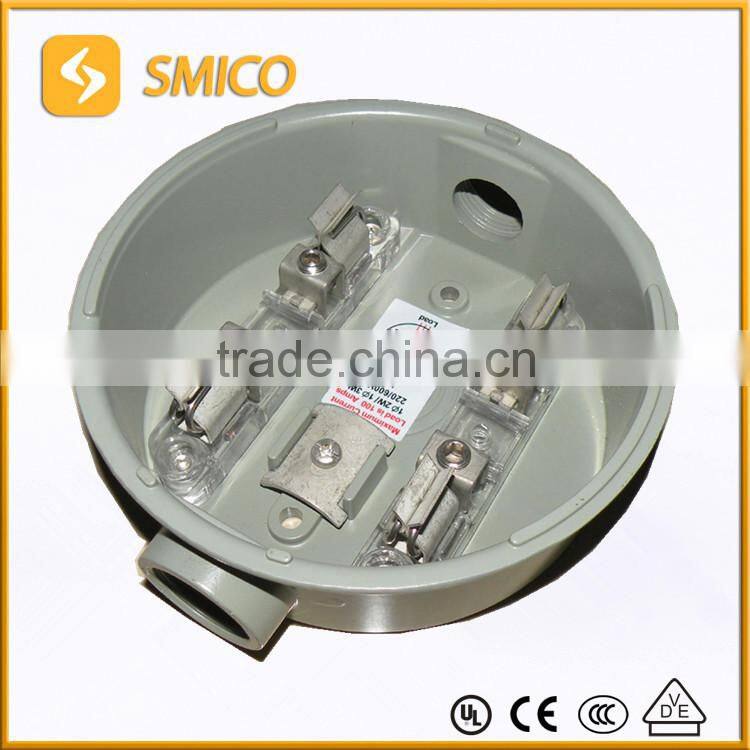

•100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire Copper Jaw,Copper or aluminum connector
•The Diecast Aluminum enclosure.Electrostatically applied epoxy and polyester resins,which are baked on.Gray color exterior.
•The current carrying parts are made of phosphor copper.
•The ground connector is designed to in sure a positive electrical connection by effectively clamping the conductor against a serrated surface.

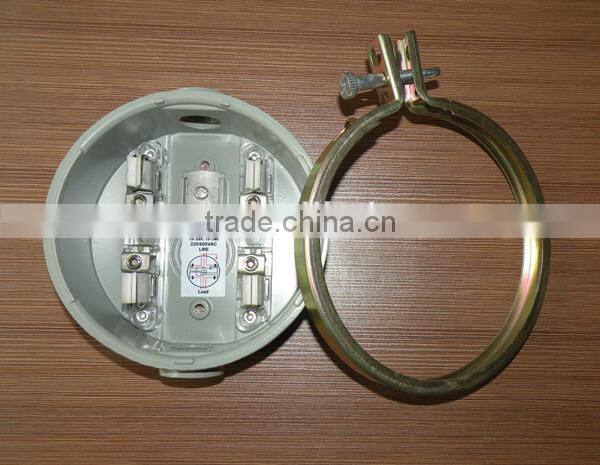

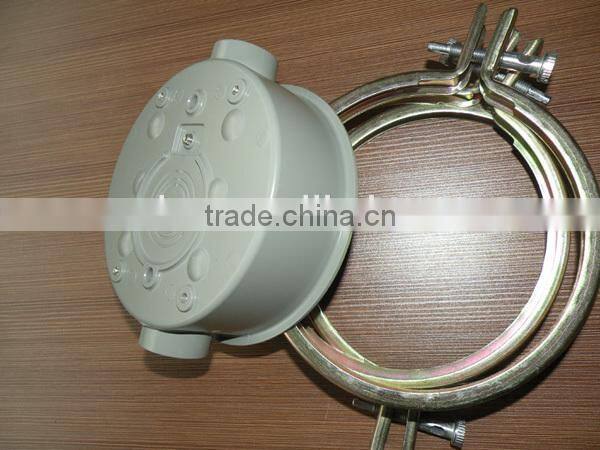

Stainless steel sealing ring

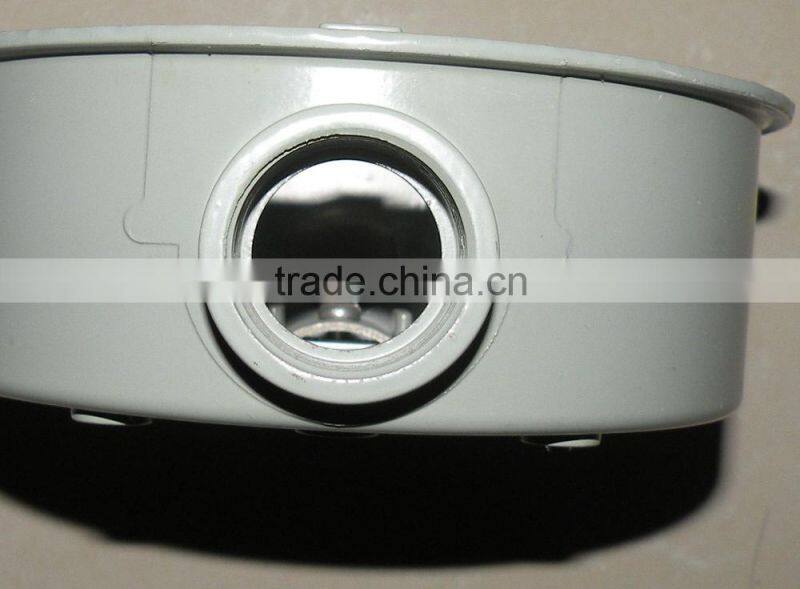

Fix hub size:1/2,3/4,1,1-1/4 for option
Applications:
1.Temporary Service
2.Outdoor Advertising
3.Small Customer Service
4.Other Low Amperage Requirements
Features: Our enclosure is made of die cast aluminum. The electrostatically applied epoxy and polyester resins, which are baked on, form a durable, light gray exterior. The current carring parts are of copper alloy. The ground connector is designed to insure a positive electrical connection by enseffectively clamping the conductor against a serrated surface.
