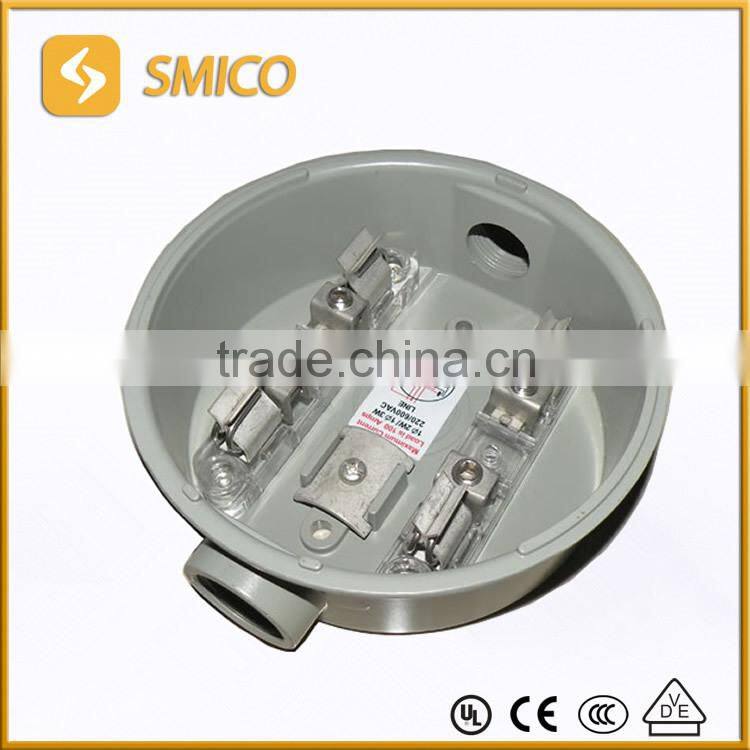

Cheap Metal 100A Power Meter Socket / Round Meter Socket
Cheap Metal 100A Power meter socket / Round Meter Socket
Features:
1) Line and load lugs:1/0 MAX, Cu-Al
2) Connectors: Made of carbon steel; screw-type
3) Rating: 100 Amp Continuous Duty, 600 Vac

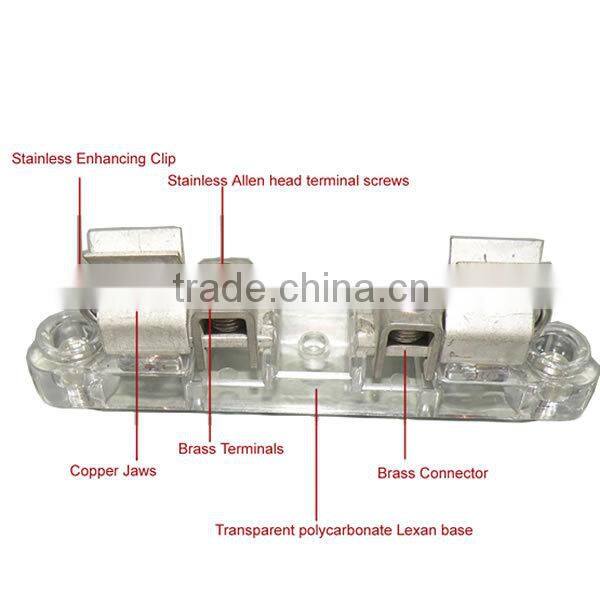

4) Jaws: Heavy duty tin plated copper jaw.
5) Bypass: None
6) Blocks: The meter jaw mounting block molded glass-filled polyester with CTI rating of 190.

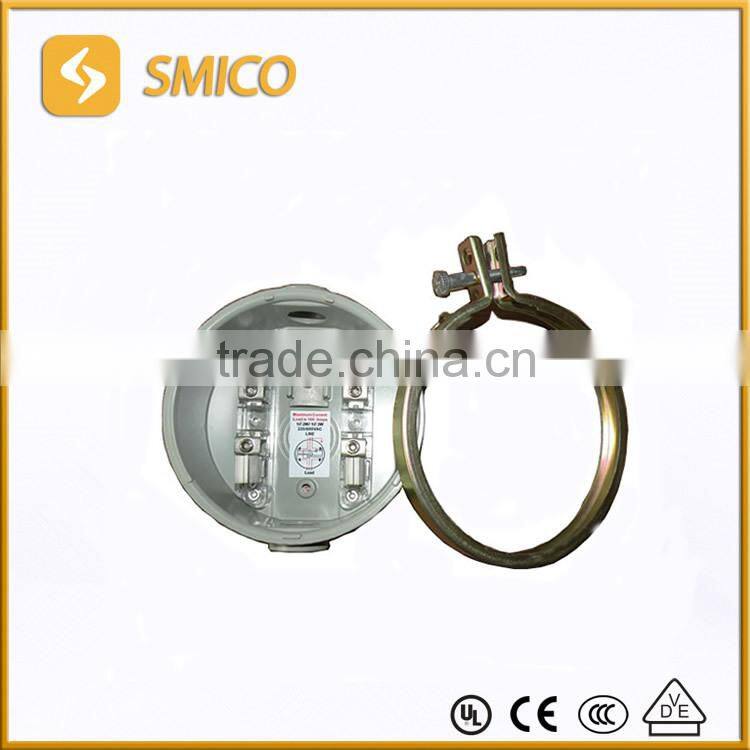

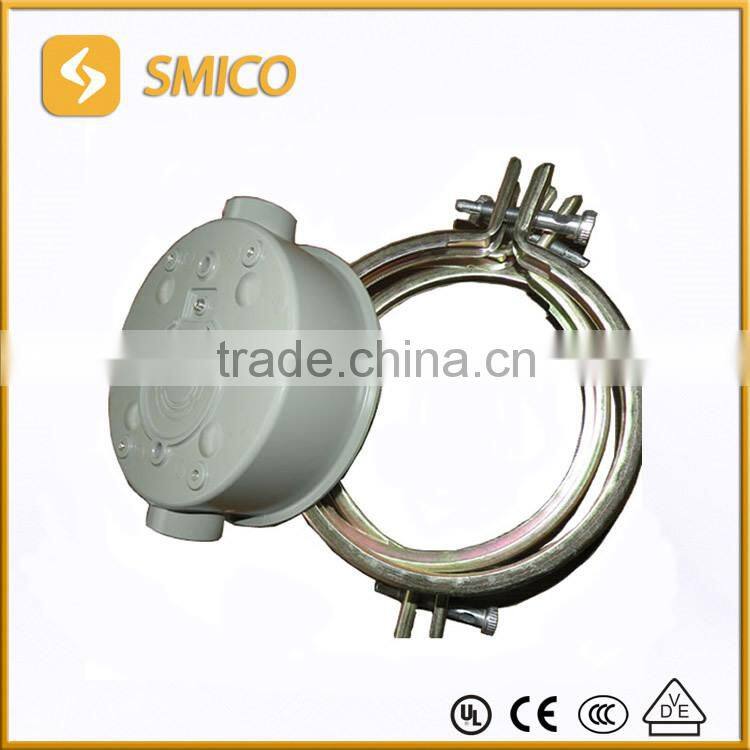

7) Sealing ring: Stainless steel, Sold seperately
8) Enclosure: Die-cast aluminium with gray cathpdic epoxy powder finish

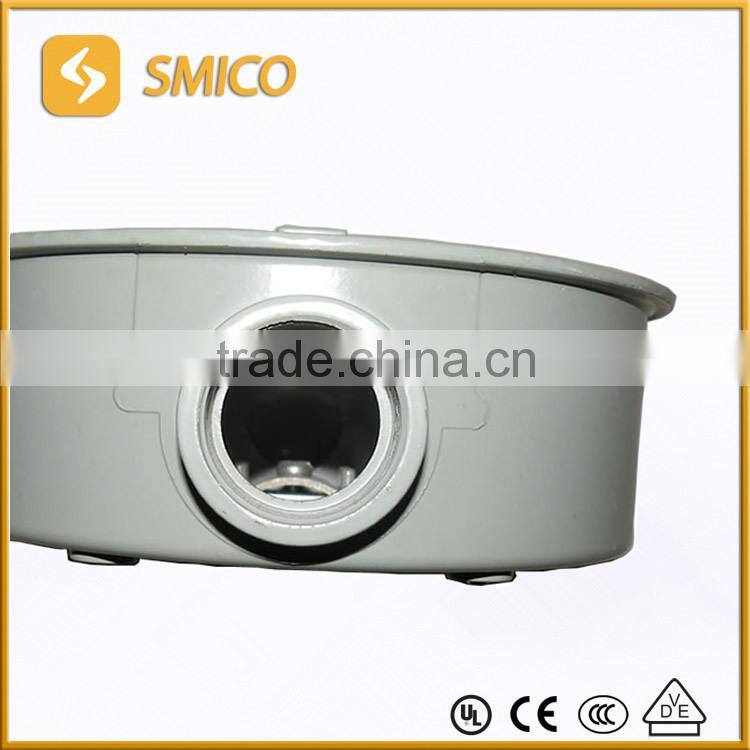

9) Hub or hub plate: Fixed, top and bottom
10) Locking: Sealing ring has lock provision
11) Interior: Units are supplied with four terminals.
| Cat.No | Description | Length of yoke | Fixed Hubs Size | Stds Pack |
| CHMB-100B | 1 phase, 100A,4 jaw | 4mm/10mm | 1/2" | 30 |
| CHMB-100C | 1 phase, 100A,4 jaw | 4mm/10mm | 3/4" | 30 |
| CHMB-100D | 1 phase, 100A,4 jaw | 4mm/10mm | 1" | 30 |
| CHMB-100E | 1 phase, 100A,4 jaw | 4mm/10mm | 1-1/4" | 30 |
Note: Pls inform the length of yoke when place an order
| Cat.No. | Stainless Steel Sealing RING | |
| SR-100 | SRN-100 | |
| Locking | Slip Type | Screw Type |
| Thickness | 0.35mm | 0.37mm |
| Stds Pack | 120 | 120 |
