Specifications
suspension composite insulators1.Application:High Voltage
2.CE ROHS CCC

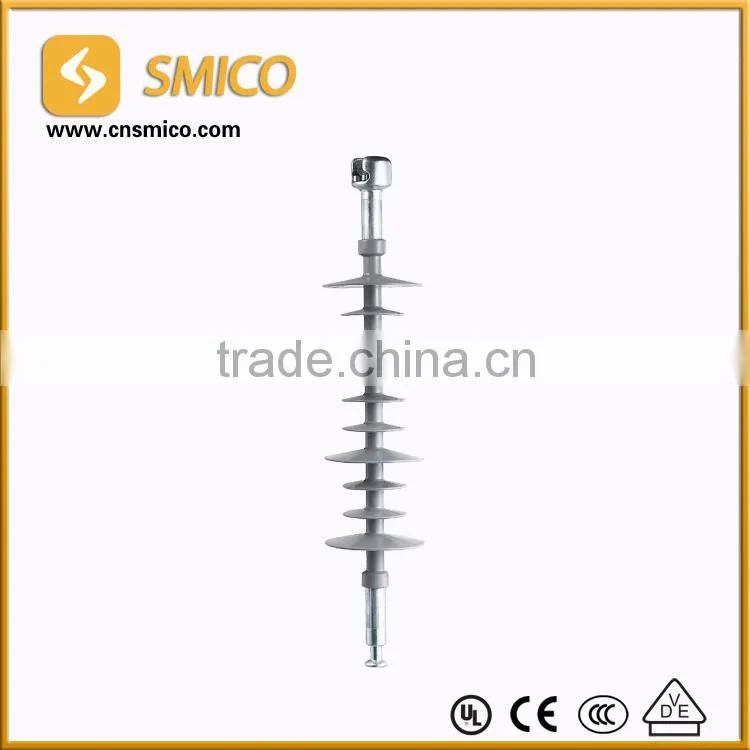

SMICO FXBW series suspension composite insulators
product prorerty
• Good electrical specification, strong mechanical strength, tensile bending intension of the epoxy glass fiber rod of internal load bearing is double than normal rolled products, 8-10 times of high strength porcelain material, can effectively improve the reliable of safe operation.
• Fine anti-pollution, strong prevent flash accident, and the wet withstand voltage and pollution withstand voltage is 2-2.5 times than the same creep age distance porcelain insulator, and not to cleanup, can safe operate in the serious pollution areas.
• Small volume, lightweight (only for the same voltage grade of porcelain insulator 1/6-1/9), lightness structure, to easy for transportation and installation, the shed has favorable waterproof performance .which the whole structure assure the internal insulation is not wet, not need to test of prevent insulation and cleanup, to reduce the routine maintenance work capacity.
Details
Product Model |
Rated voltage (kV) |
Rated mechanical load(KN) | Structure height H.(mm) | Insulating distance Li. (mm) |
Min Creep age distanee(mm) |
Lightning impulse withstand voltage (peak)(kV) |
P.Fwet withslend voltage (virtual value)(kV) |
| FXBW4-12/70 | 12 |
70 |
370 | 200 | 480 | 75 | 42 |
| FXBW4-12/100 | 12 |
100 |
405 | 200 | 480 | 75 | 42 |
| FXBW4-24/70 | 24 | 70 | 550 | 370 | 850 | 185 | 75 |
| FXBW4-24/100 | 24 | 100 | 590 | 370 | 850 | 185 | 75 |
| FXBW4-35/70 | 35 | 70 | 650 | 450 | 1225 | 230 | 95 |
| FXBW4-35/100 | 35 | 100 | 690 | 450 | 1225 | 230 | 95 |
| FXBW4-66/70 | 66 | 70 | 900 | 710 | 1980 | 410 | 185 |
| FXBW4-66/100 | 66 | 100 | 940 | 710 | 1980 | 410 | 185 |
| FXBW4-110/70 | 110 | 70 | 1240 | 1000 | 3315 | 550 | 230 |
| FXBW4-110/100 | 110 | 100 | 1240 | 1000 | 3315 | 550 | 230 |
| FXBW4-220/100 | 220 | 100 | 2240 | 1900 | 6300 | 1000 | 395 |
| FXBW4-220/160 | 220 | 160 | 2240 | 1900 | 6300 | 1000 | 395 |
| FXBW4-330/100 | 330 | 100 | 2950 | 2600 | 9075 | 1425 | 570 |
| FXBW4-330/160 | 330 | 160 | 2950 | 2600 | 9075 | 1425 | 570 |
| FXBW4-500/160 | 500 | 160 | 4080 | 3730 | 12750 | 2250 | 740 |
