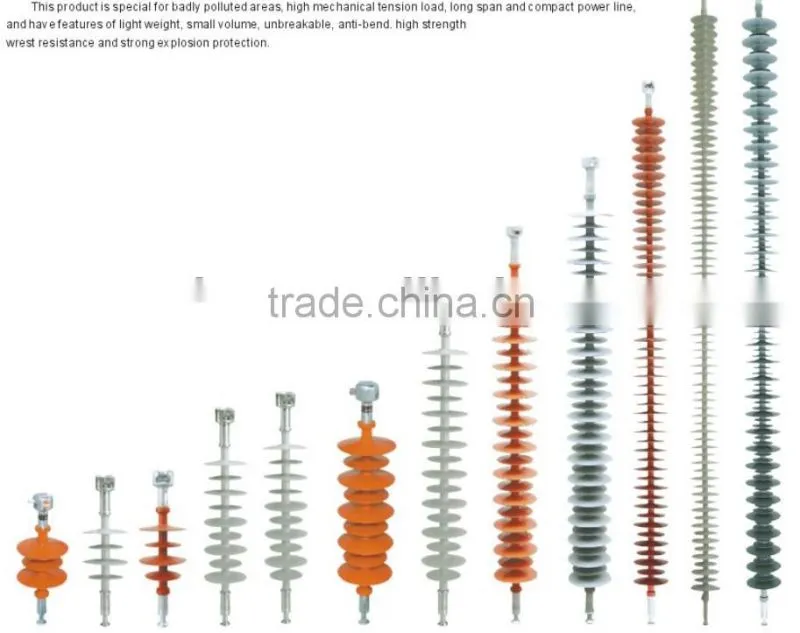

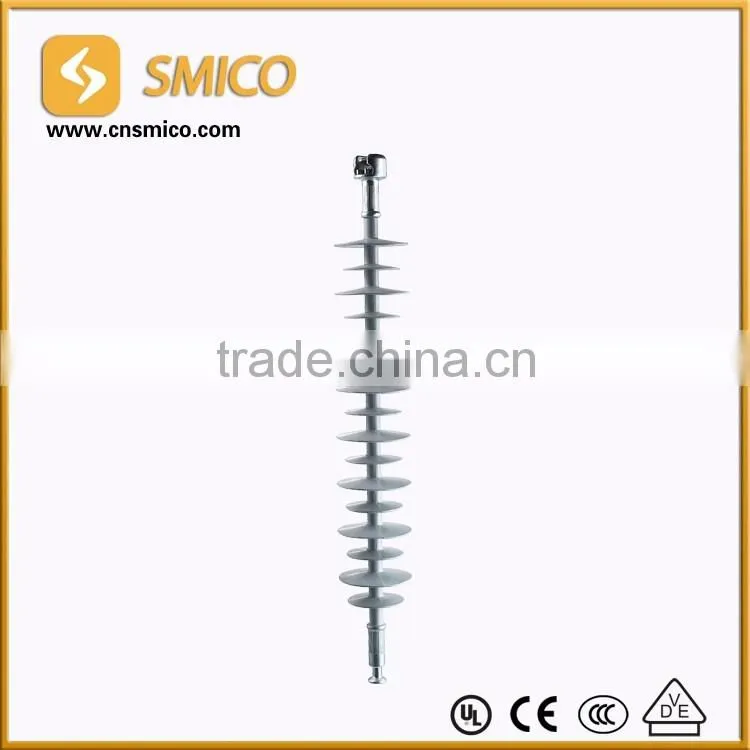

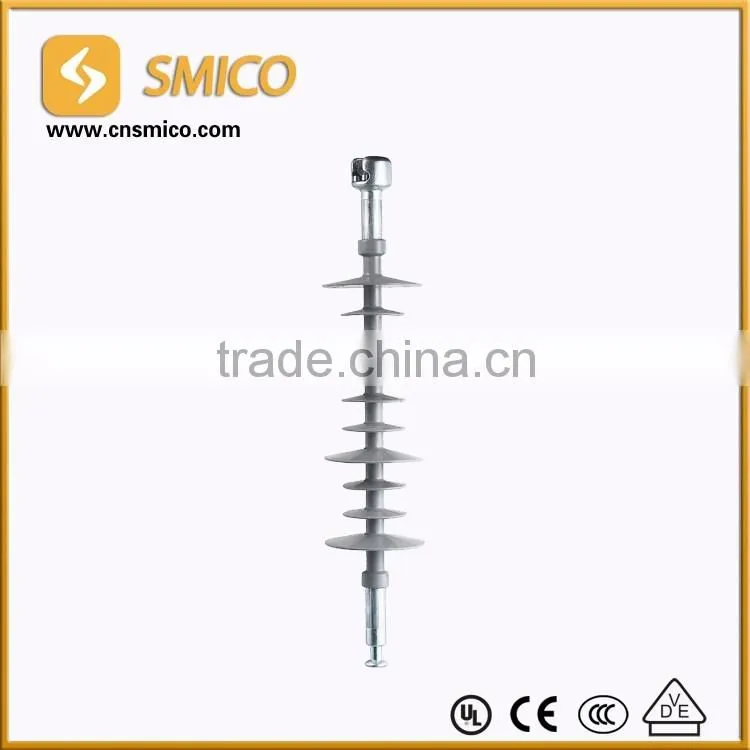

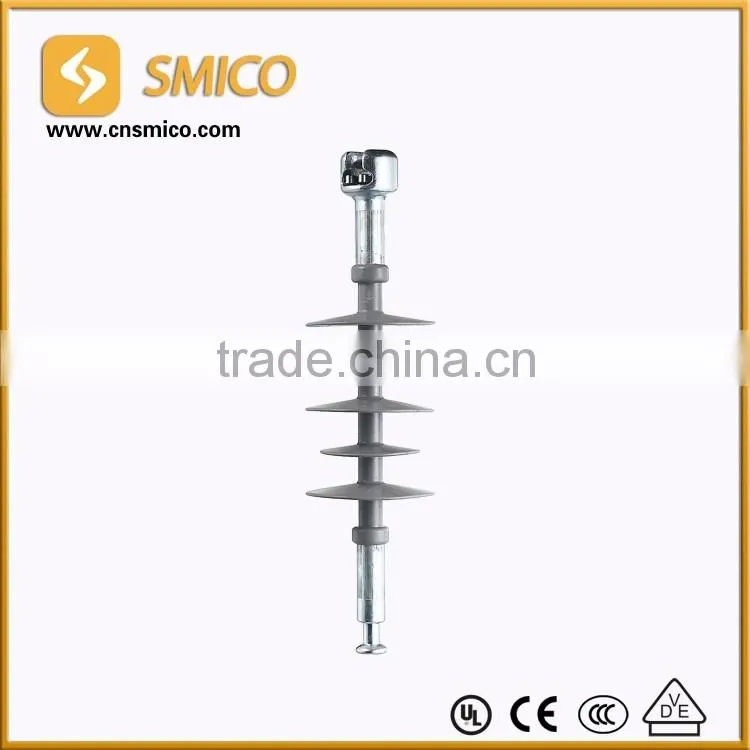

Help CenterFZSW High Voltage Composite Insulator/suspension Insulator
Related Products
-
11kv FPQ Pin Composite InsulatorUS$ 1 - 30MOQ: 100 Pieces -
High Voltage Cross Arm Composite Insulator/Polymer InsulatorUS$ 10 - 30MOQ: 10 Pieces
-
Smico High Voltage Suspension Pin Composite InsulatorUS$ 1 - 10MOQ: 100 Pieces
-
High Voltage Suspension Composite Insulator/composite Polymer InsulatorUS$ 2 - 100MOQ: 100 Pieces
-
High Voltage ArresterUS$ 5 - 30MOQ: 10 Pieces
Introduction

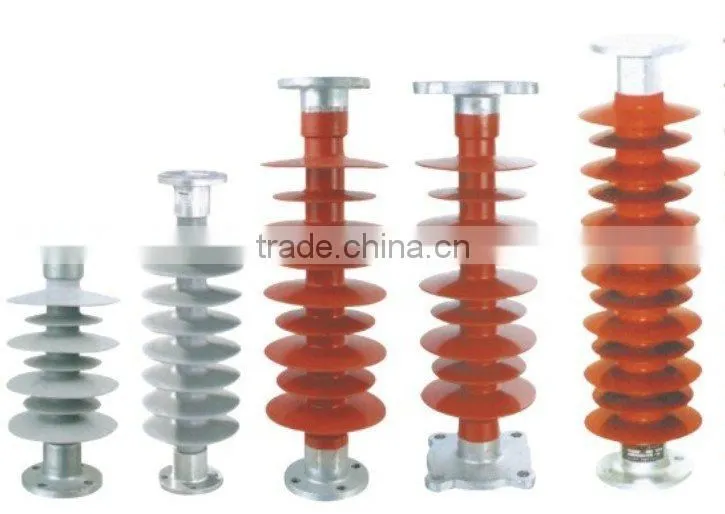

composite post line insulator is applied to high voltage power line service, with features of good hydrophobic property,
anti ageing, antieakage trace and electrical erosion proof, tensile strength and bending strength, strong mechanical strength, shock resistance good quakeproof and brittle failure proof, light weight, easy to install, and the installation size of top and base are the same with that of porcelain pin type, the can be exchanged used with each other.
Features:
1.Secure and reliable operation on high mechanical strength.
2.Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability.
3.Good electric performances
4.Strong anti-pollution falshover ability.
5.High anti-aging performances which is perfect for utilization under conditions of high altitude.
6.Easy for maintenance.
Technical data
Type |
Rated voltage(kV) |
Specified mechanical load(kN) |
Section length(mm) |
Min Arc distance(mm) |
Leakage distance(mm) |
Lightning impulse withstand BIL(kV) |
Power frequency withstand (wet) (kV) |
FZSW-12/4 |
12 |
4 |
215 |
290 |
100/90 |
75 |
42 |
FZSW-24/8 |
24 |
8 |
400 |
750 |
142 |
150 |
65 |
FZSW-36/6 |
36 |
6 |
450 |
946 |
148/118 |
185 |
95 |
FZSW-66/6 |
66 |
6 |
760 |
1886 |
160/130 |
410 |
185 |
FZSW-66/8 |
66 |
8 |
760 |
2010 |
220/190 |
410 |
185 |
FZSW-110/10 |
110 |
10 |
1220 |
3530 |
220/190 |
500 |
230 |
FZSW-220/10 |
220 |
10 |
2440 |
7060 |
220/190 |
1000 |
395 |
1.Q:Are you manufactory or trade company?
A:We are the manufactory in Wenzhou,Zhejiang Province,China.
2.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.OEM is welcomed.
Your Logo can be puted on our products.And we can make package according to your design.
3.Q:What is usual payment term for orders?
A:We accept terms of T/T in advance,Western Union.
