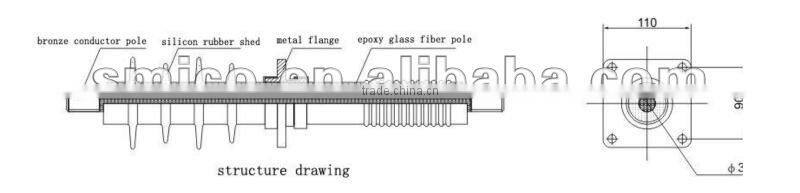

Help CenterDry Wall Composite Insulator/ Dry Wall Composite Bushing
Related Products
-
Cross-arm Composite InsulatorNegotiableMOQ: 1 Piece -
ArresterNegotiableMOQ: 10 Units
-
SMICO Export Products 500KV 160KN Glass Composite Pin Insulators High VoltageUS$ 0.9 - 9.99MOQ: 100 Pieces
-
SMICO Novelty Products For Sell 24KV 33KV 36KV Pin Composite Line Post InsulatorUS$ 0.9 - 9.99MOQ: 100 Pieces
-
SMICO Export Goods Fiberglass Rod 11Kv Disc Insulator For Electrical Power LineUS$ 0.9 - 9.99MOQ: 100 Pieces
Specifications
Dry wall composite bushing1.Type: FGCW series
2.Rated voltage: 10KV,35KV,66KV and 110KV
3.Rated current: 200-1600A
Introduction
Composite dry wall bushing is a new model wall through bushing,which used newmodel insulating material in
the internal insultion, and used highperformance,high temperature silicon sulfide hydrocarbon in theexternal
insulation,it accords with the trend in development of nonoiland minaturiz ation of the power department,it is satisfied with the requirement of the urban & rural electrical net rebuild of the newgeneration high voltage
products.
Normal service conditions:
1.The ambient air temperature is no higher than +40 degree. no lower than -40 degree.
2.The altitude above sea level does not exceed 1500m
3.AC Power frequency does not exceed 100Hz
4.Maximum wind speed does not exceed 35m/s
5.The earthquake intensity does not exceed 7 degrees
Main technical parameters
Product Model |
Rated voltage(kV) |
Rated current(A) |
Lightning impulse withstand voltage(peak)(kV) |
P.F 1min wet withslend voltage(virtual value)(kV) |
Bending break load(N) |
Permitted bending load(N) |
FCGW-10/220~630 |
10 |
200~630 |
75 |
30 |
1250 |
625 |
FCGW-12/630~3150 |
12 |
630~3150 |
75 |
30 |
1250 |
625 |
FCGW-20/630~3150 |
20 |
630~3150 |
150 |
60 |
1250 |
625 |
FCGW-35/630~3150 |
35 |
630~3150 |
200 |
80 |
1250 |
625 |
