Specifications
flame triple torch1. Flame triple/ fourfold torch straight line bevel station
Flame triple torch/ fourfold torch straight line bevel station
mainly used for straight line bevel on steel plate.

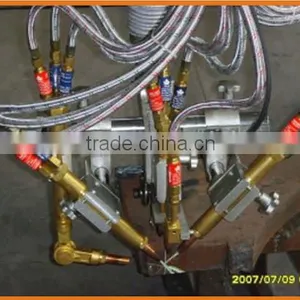

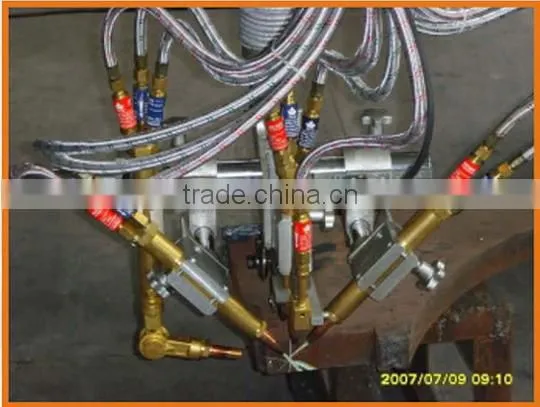

Its structure is to fixed 3 torches on one station. First Torch is used for cutting of under bevel.
Second torch for vertical cutting, Third for cutting of upper bevel. By this cutting then can achieve bevel with certain accuracy.

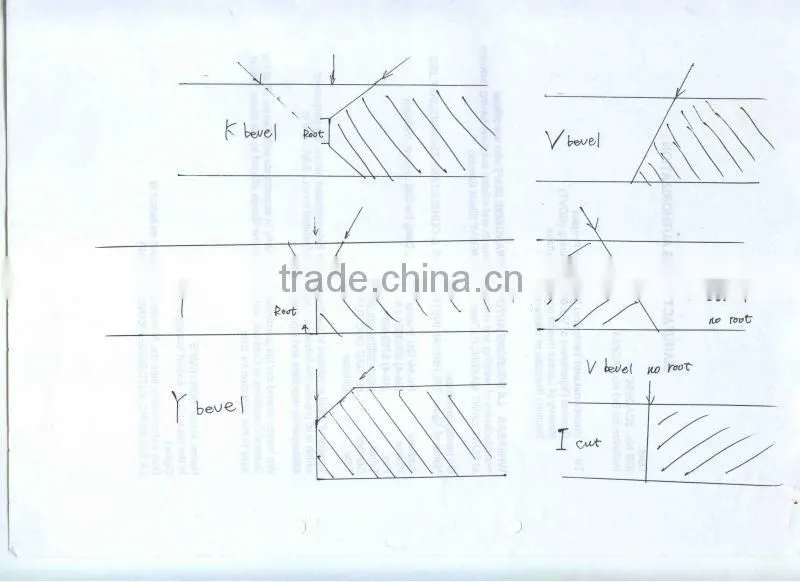

The bevel types are: V, X, Y, K. The bevel angle is 0-45º.
Because the bevel angle is relative to the plate thickness, therefore there is limited to the bevel thickness.
The max bevel thickness is 75mm. Please refer to the table for cutting thickness and angle of Flame triple torch straight line bevel station.
We also can add preheating torch and big angle bevel cutting torch on Flame triple torch straight line bevel station according to the production requirement of customers.
That is flame fourfold torch straight line bevel staion.
