XLG-600 CNC Pipe cutting machine

Specifications

CNC pipe cutting machine
Main cutting mode covers O-branch I-branch

3. CNC pipe cutting machine  Main technical parameter
Cutting pipe diameter: 60-600mm
Work piece ovality : <=2%
Work-piece length: <=6500mm
Cutting speed: 100-750mm/min
Traveling speed: 100-5000mm/min
Oscillation angle of cutting torch: <=45%
Number of control shaft:4
1.Work-piece rotation axis: (stepless speed regulation)
2.X axis axial shiftig shaft of barrow along work-piece
3.Plane oscillating shaft of cutting torch in X-Z axis.
4.Vertical shifting shaft of cutting torch barrow
Spindle bore that steel tube can go through:dia<=260mm
Maximum course: X direction: 6000mm Z direction: 350mm.

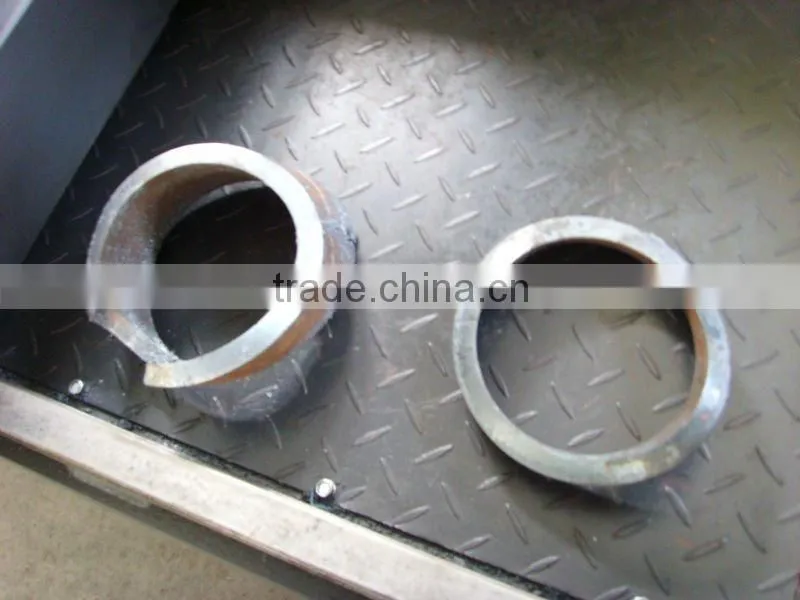

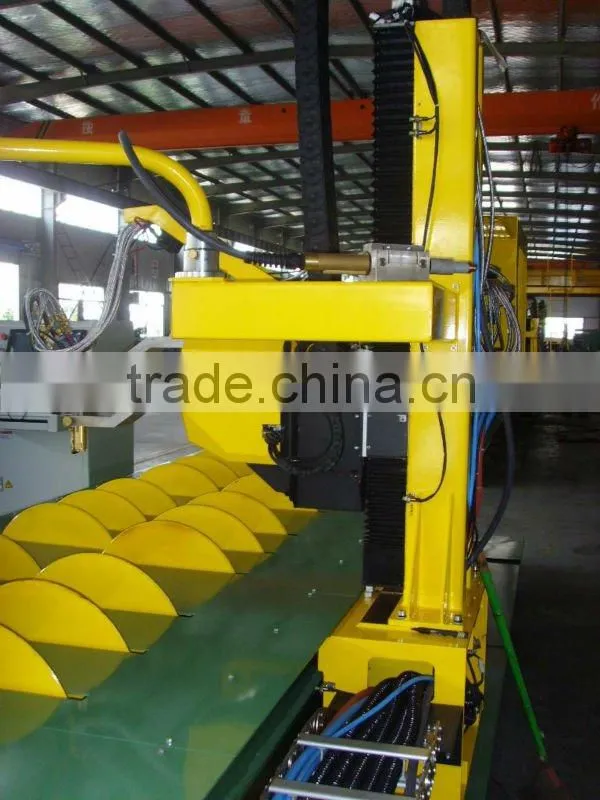

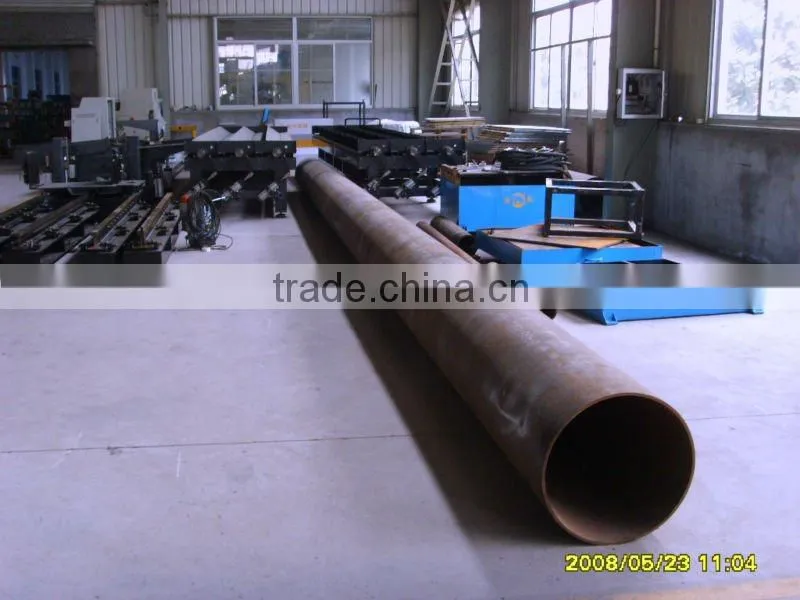

4.picture reference
