Specifications
welding equipment welding machine h beam welding machine1.h beam
2.steel fabrication
3.steel building,steel structure

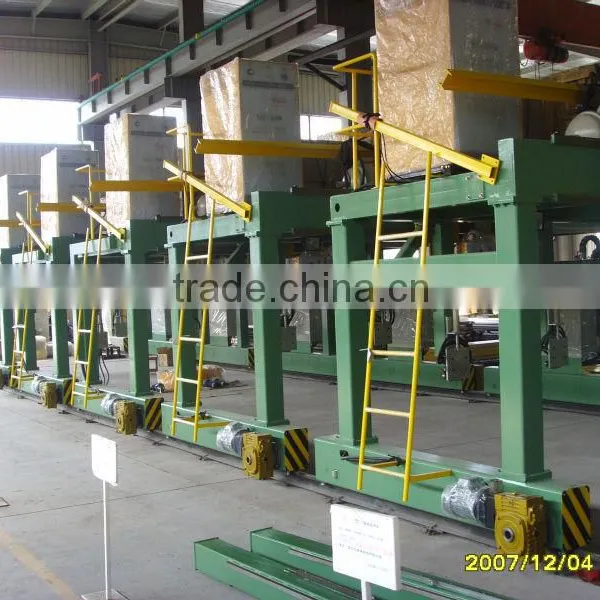

Technology of Gantry heavy h beam I beam box beam automatic submerged arc welder welding equipment welding machine h beam welding machine
This machine is combined of auto-moving gantry, auto submerged arc welder, solder recycling system, guiding arc device etc. Using frequency variation can adjust the speed of welding moving. Using electric circuit control can get the result of stable arc; large range of current adjustment and the function of auto filling is pit. The machine is applied to the machinery manufacture, steel structure such industries. Product main featureThe control part is composed of MZK-3 or NA-3, NA-5 welder control box and external control box.
Parameter of Gantry heavy h beam I beam box beam automatic submerged arc welder welding equipment welding machine h beam welding machine
Flange width |
200-800 mm |
Web height |
200-1500 mm |
H beam length |
4000-20000 mm |
Rail span |
4000 mm |
Rail length |
24000 mm |
Welding speed: 250-1000 mm/min (according to welding technology) |
|
Rapid speed |
3000 mm/min |
Welding type |
Fillet welding in the flat position |
Welding wire |
Φ3-Φ5 mm |
Flux recovery unit |
100 kg×1 |
Drive mode |
Dual drive |
Control mode |
Inverter step less speed adjustment |
Power supply |
380 V/3 PH/50 HZ |
Machine power |
9 kW exclude welder |
Process of Gantry heavy h beam I beam box beam automatic submerged arc welder welding equipment welding machine h beam welding machine
Products of Gantry heavy h beam I beam box beam automatic submerged arc welder welding equipment welding machine h beam welding machine
H beam process for a complete prodction line
Professional package and timely shipment
Independent,professional and serious quality control team
Reliable production capability is made sure by advaned facilities and good management
Application of Gantry heavy h beam I beam box beam automatic submerged arc welder welding equipment welding machine h beam welding machine
Products sample and exihibitons
