Specifications

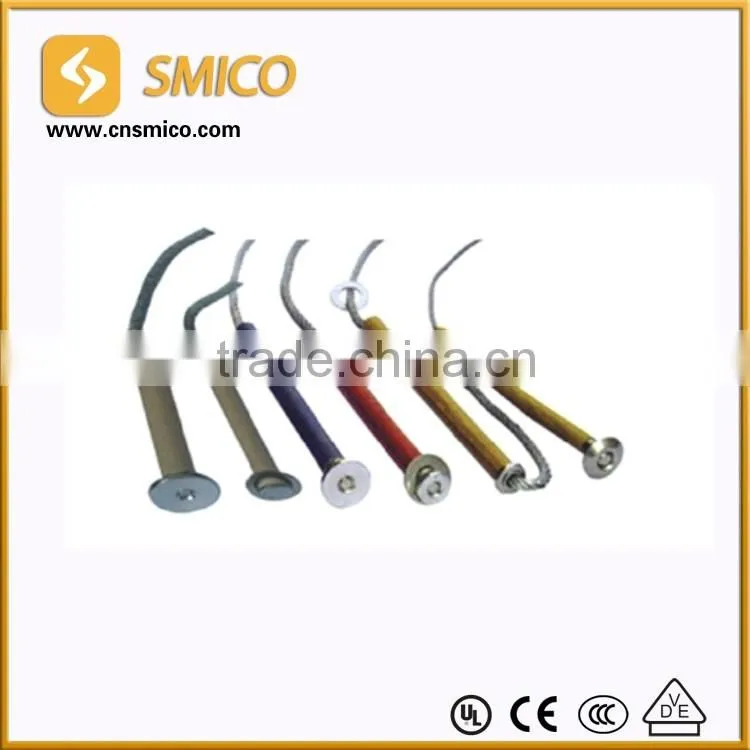

High voltage fuse link1.Rated Current: 1-300A
2.Rated Voltage: 11KV-38KV
3.Length:23''L or 31''L /according to requirement
Introduction
Our fuse link is divided into "K"and "T "type, the product is made of “K”type fuse link is 6-8 melting speed, and “ T”type with 10-13 melting speed, these two types off are link are popularized
by national resource department and are widely applied to drop-off type fuse of 11-36 KV grade.
Features:
Rated current :1A-300A
Rated Voltage :11KV-27KV (Length :530MM-600MM)
Rated Voltage :33KV-38KV (Length :787MM)
Standard: IECV-282
High breaking capacity
High mechanical strength
Application: Drop-off type fuse of 11-36KV grade
Main technical parameters:
Rated Current, A |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
F(mm) |
1~25 |
12.5±0.2 |
19±0.2 |
Note 1 |
2.0 |
8.0 |
30~40 |
12.5±0.2 |
19±0.2 |
Note 1 |
3.0 |
8.0 |
50~75 |
19±0.2 |
NA |
Note 1 |
5.0 |
10.0 |
100~120 |
19±0.2 |
NA |
Note 1
|
7.0 |
10.0 |
140~200 |
19±0.2 |
NA |
Note 1 |
7.0 |
12.0 |
Mechancial dimensions:
