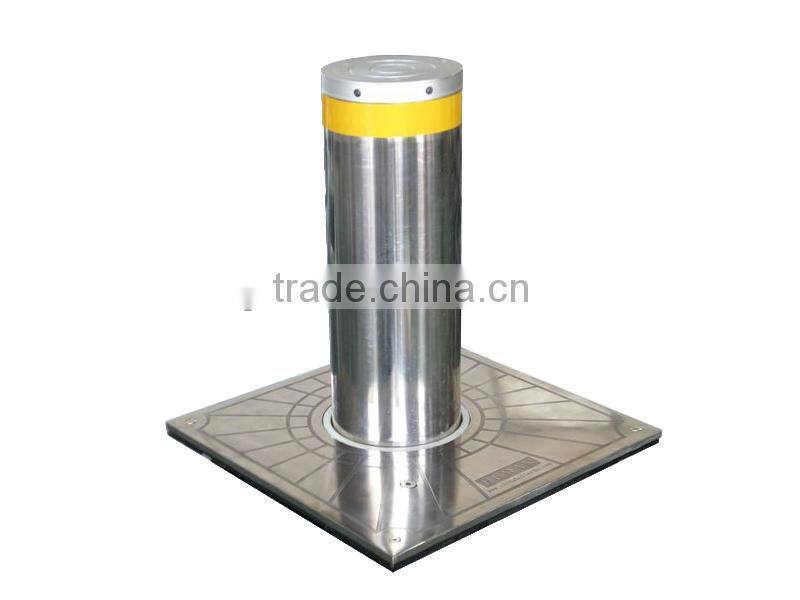

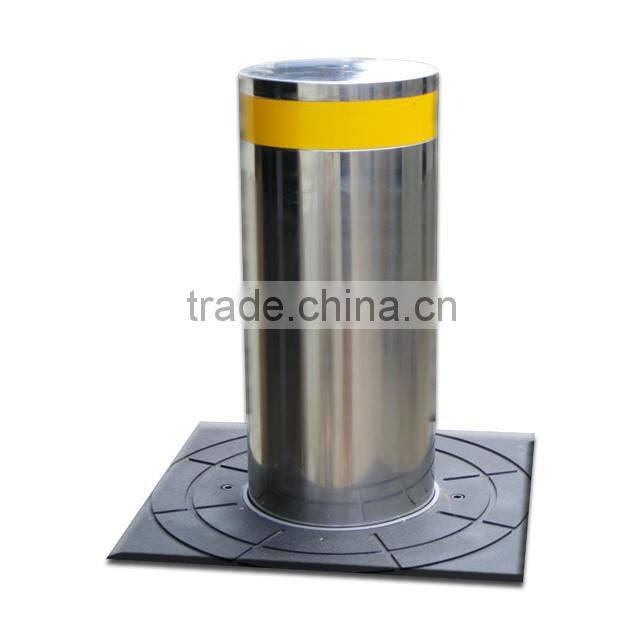

Hydraulic Steel pipe bollards made of 6mm thickness 304# stainless steel(ISO9001-2008Approved)

Specifications

1,Electro-hydraulic-mechanically
2,Retractable bollard
3,6mm thickness 304# Stainless steel
4,Speedy and durable

The automatic Bollard is an electro-hydraulic-mechanically operated retractable bollard system.

The system can be quickly and easily operated. It is suitable for both security and access control applications.





 Applications

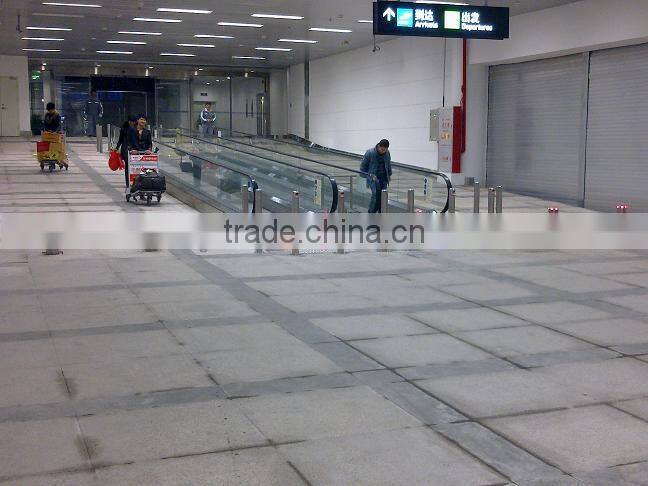

The system   is designed to bring desired environmental and aesthetic enhancements to perimeter security,   securing   perimeter   access without   providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots ,    government   buildings ,  sports stadiums ,  amusement  parks , airports, shopping  centers ,  hospitals  , and   apartment complexes.





I.  Technical data

    1) Motor power supply:  AC380V 50/60Hz

    2) Control power supply:  AC220V 50/60Hz

    3) Rising time:  3~4 second

    4) Falling time:  2~3 second

    5) Inner tube diameter:  168/219/273mm (D)

    6) Rising height:  400-1000mm (H)

    7) Rising power:  ≥400Kg

    8) System working temperature:  -25°C~ +75°C

9) Controller:  remote control / keyboard

10) Material: 304# Stainless steel (202#Stainless steel is optional)

II. Characteristic

    1) Steady and safe due to the Omron plc control system

    2) Speedy and durable due to the use of hydraulic pressure

    3) Lower down the bollards by handle valve in case of power failure or fault of automatic system

    4) Raise up the bollards by handle pump in case of power failure or fault of automatic system

    5) Bollard is made of 304# Stainless steel .Also Galvanization is durable and stainless

    6) Optimization of frame structure, high anti-impact capability, high loading capability

7) Protecting key avoids mis-operation



Product Overview:



Certifications:

ISO9001-2008



CE





Patent Right



Factory View:





Test Machine:



A.High and low temperature and humidity detector





B.Aging room (60°C aging 72 hours)



C. Salt Spray Tester



D. Simulate transport tester





E. UV Spraying fade detector
