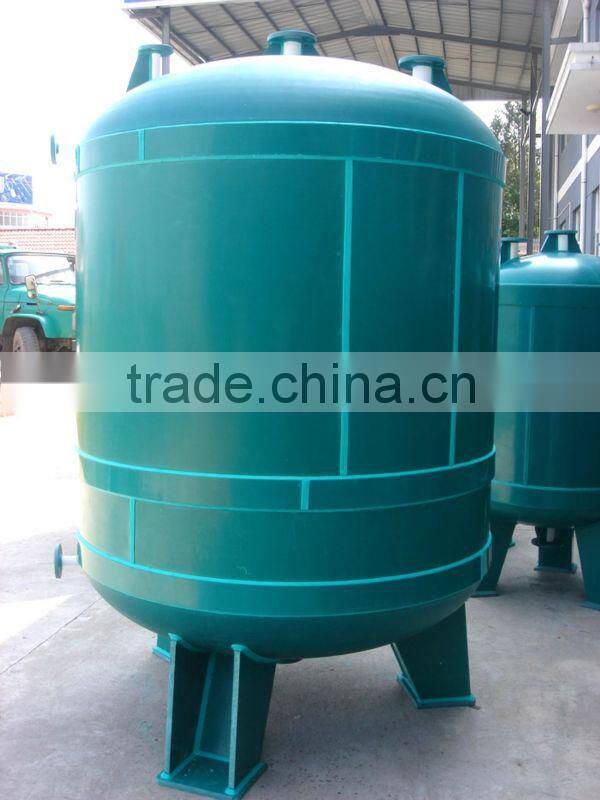

Storage Pressure Vessel/chemical Tank Manufacturer
- Qingdao Tianjin
- T/T Money Gram
You May Like
-
Storage Pressure Vessel/chemical Tank Manufaacturer
-
Double Layer Storage Tank/oil Container Manufacturer
-
Product Informaiton: Part Number: 163 500 0349 Material: PP,PA High Temp.:double Layer Storage Tank/oil Container Manufacturer
-
All Volumes of Cement Silos on Hot Sale
-
High Quality Cement Silo Designed for Exportation
-
All Volumes of Cement Silos on Hot Sale
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Luqiang | Model Number | LQR | |
| Dimension(L*W*H) | as ned | Capacity | 0.5~1,000 m³ | |
| Weight | 1-15t |
Product Description
Specifications
1,Max working pressure:20Mpa2,Max working steel thickness: 400mm
3,Max single product weight: 640ton
This product is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Technical specification | parameters | Subject | parameters |
| |||
tank | Item Number | CLG2400-50 LPG tanker | Liquid Indictor | Model | UHZ-518C14 |
| |
Overall dimensions(mm) | 11657×2428×3028 | Version | Magnetic |
| |||
Net weight(Kg) | 10760 | Norminal pressure | 2.5Mpa |
| |||
Vessel type | III | Scope of testing | 50-2300mm |
| |||
Designing pressure | 1.77Mpa | Precision | 2.5 |
| |||
Working pressure | 1.61Mpa | Safety Valve | Model | A42F-2.5-80 |
| ||
Designing temperature | -19~50 | Version | Built-in |
| |||
Filling Medium | Propane | Norminal pressure | 2.5 Mpa |
| |||
Corrosion margin | 1.0mm | Nominal diameter | DN80 |
| |||
Volume | 50m3 | Openning pressure | 1.68-1.76 Mpa |
| |||
Heat treatment | bulk | Re-seating pressure | 80% of openning pressure |
| |||
Filling factor | 420kg/m3 | Handling System | Norminal Diameter | Feed pip | DN80 | ||
Material | 16MnR | Drain pip | DN80 | ||||
Hydraulic test pressure | 2.22 Mpa | Admission port | DN50 | ||||
Gas tight test pressure | 1.77 Mpa | Sewage outfall port | DN80 | ||||
Cylinder thickness | 13.56mm | Vent nozzle port | DN80 | ||||
Head thickness | 13.53mm | stand | GB150-1998 steel pressure vessels |
| |||
Service time | 10 years | Safety regulation of pressure vessels |
| ||||
