Help CenterSuperior EL Sheet /EL Backlight /EL Panel at Any Size and Shapes
Related Products
-
Yellow Cuttable el Panel A4 Size for CuttingUS$ 6 - 264.9MOQ: 1 Piece -
Custom EL Lamp for DIY SizeUS$ 6 - 264.9MOQ: 1 Piece
-
White EL Backlight Panel Manufacture Shenzhen OEM AcceptableUS$ 6 - 264.9MOQ: 1 Piece
-
Various EL for OEM DesignUS$ 6 - 264.9MOQ: 1 Piece
-
Brightest el Panel /electro-luminescent Panel at High Brightness 150cd/m2 WhiteUS$ 6 - 264.9MOQ: 1 Piece
Specifications
1.el sheet high brightness2.Accept any size and shapes
3.Quick leadtime,24hours quality testing
4.CE/ROHS
1. EL backlight / EL lamp /EL panel /EL sheet/EL backlight panel / EL light sheet :
It is a sheet-typed flat light emitting device emitting light by inducing alternating voltage to the fluorescent material that are evenly distributed between two electrodes having high conductivity
2. EL backlight structure :
3. EL backlight Specifications :
3.1. EL features :
| EL panel | Standard size | A0/A1/A2//A3/A4/A5/A6 ,Also accept OEM customerized size and shapes |
| Thickness : | 0.3~0.5mm | |
| Max size : | 100cm*200cm for 1 pcs ,larger sie can be joint by several panels ; Joint line gap is only 0.5mm non-lighting line | |
| High brightness: | 100~150cd.m2 | |
| Color | White on/pinkoff ,white on/white off ,blue/green/red/yellow/purple and etc any color | |
| Long lifespan | el sheet can continuously work for more than 10000hours depending on working environment and duty cycle . | |

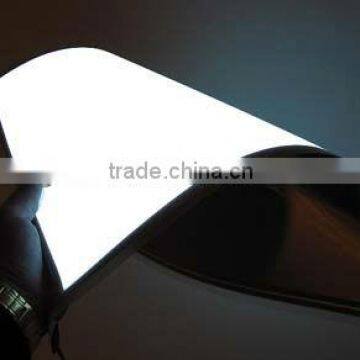

| EL panel advantages | Thin ,lightweight ,flexibility ,can be bent and rolled ,low power consumption , | |
| Green Product | no hazard ,no heat generated . | |
| Usage | For indoor & outdoor | |
| EL Inverter | EL inverter input voltage | AC90V~AC240V / DC12V/ DC24V ,50~60HZ |
| Output voltage | AC110V /800HZ | |
| Safety Certification | CE/ROHS.SGS/FC |
3.2. EL technic paramters:
| Speciality | Item | Paramter | Condition |
| EL inverter | Voltage input | AC90v~120V | |
| Frequency input | 50~60HZ | ||
| Current | 0.25A | ||
| Power | 28W | ||
| EL Panel | Luminosity at start | 85~150cd/m2 | |
| Half life | 8000hours | Keep irradiance | |
| Natural life | 20000hours | keep irradiance | |
| Circumstance | Working temperature | -50 °C~60 °C | |
| Deposited temperature | -65 °C~85 °C | ||
| Strike of temperature | -30 °C/70 °C |
4. EL Backlight standard size and Inverters pictures:
| EL backlight Standard Size | ||||
| Size | Overall width (cm) | Overall length (cm) | Illuminated width (cm) | Illuminated length (cm) |
A0 | 84.1 | 118.9 | 81.7 | 116.5 |
| A1 | 59.4 | 84.1 | 57.3 | 82 |
| A2 | 42 | 59.4 | 40.82 | 58.22 |
| A3 | 29.7 | 42 | 28.36 | 40.66 |
| A4 | 21 | 29.7 | 20 | 28.7 |
| A5 | 14.8 | 21 | 14.04 | 20.24 |
| A6 | 10.5 | 14.8 | 9.74 | 14.04 |
5. Irregular EL backlight in differents types and shapes :
5.1. We can make customerized size at any size and shapes .

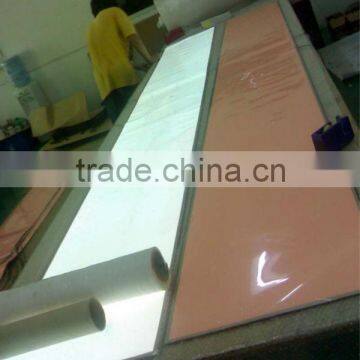

Max size is 100cm*200cm lighting size in one piece without any joint . Larger size can be done by jointing several panels .
5.2.Special Cuttable EL backlight : need customerized with multiple connector
you can cut it into any shapes with your like ,but you must keep the connector on panel as the following photo :
5. Angel Shine Advantages of EL
- Any size and shapes ,can make size larger than 100*200cm for indoor & outdoor .
High quality with long lifespan
Professional technicaion to creat attractive animation modes
CE.ROHS.SGS.FCC certification
Short Leadtime ,quick delivery
Competitive price at top quality ,phosphor and silver material are imported from Japan ,US .
Lightweight ,flexibility ,can be bent and rolled
24hours long quality testing before delivery
6. EL backlight Applications :
- LCD back light for industrial machinery
- Interior or exterior decoration
- Advertising Display in Exhibition & Expo
- Night Leisure for security ,Night club
- Display of Bus ,Taxi ,Train; Truck advertising,subway ,railway ,airports
- Automotive wraps ;,Street Funiture
- Hotels ,supermarket ,chainstores ,commercial centers,
7. More available EL backlight for choosing ,also welcome customer's OEM designs at any sizes and shapes.
For more details ,kindly cotact our online sales for further discussion .
