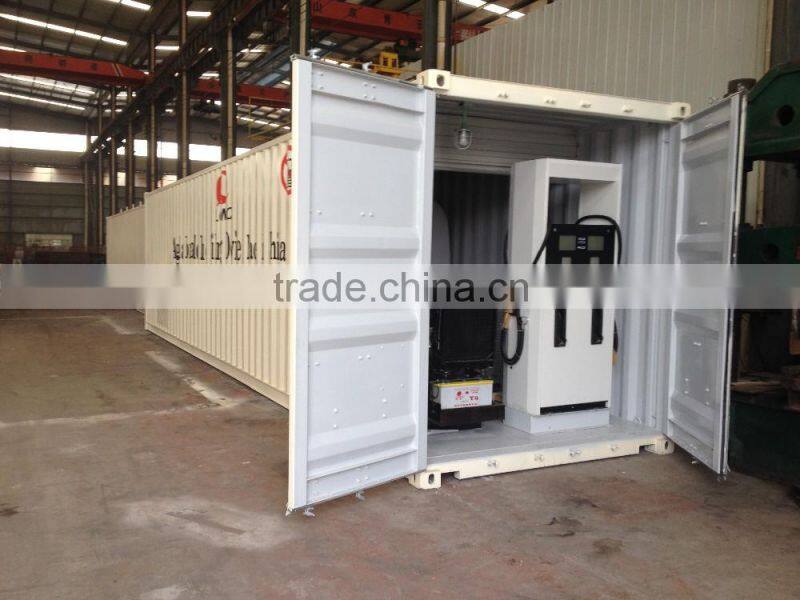

High Quality Skid-mounted Refueling Device Exported to Africa

Factory direct supply the blocking explosion-proof skid mounted mobile gas station, mobile gas station, gas station type, can be made into 20 feet 30 feet by 40 feet container, container moving oil supply system, as an alternative or complement to traditional gas station provides service, work desk with refueling door, lever type mobile gas station is a closed container type, the blocking explosion-proof skid mounted gas station(device) explosion barrier material storage tank using the latest technology, when encountered fire, shooting, welding, lightning, electrostatic, accidents will not explode, with automatic fire extinguishing system, explosion-proof lights, water lights, the blocking explosion-proof skid mounted gas station (device) is safe explosion-proof, energy-saving environmental protection, affordable, small occupation area, convenient installation, construction time is short, low cost, no environment limit is not affected by the inside and outside of the station, safety distance limit, easy migration characteristics, products widely used in downtown, traffic and transportation company, bus station, station, port, wharf, airport, large construction sites, factories and mines, parking lot, urban and rural community, the internal logistics companies, enterprises, rural and urban, gas station, container shift The gas station is completely autonomous, well-equipped, just a few hours can operation, mobile /,strong flexibility, without the cost of land, can contain 2oil, self suction pump (row), with double gas gun oiling machine, with no spark explosion-proof motor, aluminum alloy gate, durable, safe and reliable.

Specifications:

1) The fuel tank used for storage oil (diesel, gasoline, etc.) in static, but can not use for transportation.
2) The shape and size based on the design of container.
3) The capacity can be adjusted according to the customer, generally around 50,000-68,000L.

4) Painting System: Three coats paint
                               First: Epoxy zinc rich primer
                               Second: Epoxy high build
                               third: Polyurethane surface painting

 5) Outer shell material: 6mm Iron Inner / 6mm Iron Outer (double wall)

Description:

1) Manufacturer of Tanks Service Stations Gas Station, petrol fuel station.

2) The tank station can be equipped as a complete gas station | service station for cars, trucks and diesel locomotives or as tank container for yachts and boats.
3) The tank station can also be applied as airfield gas station (gas station/service station for helicopters).
4) Own integral current supply.
5) International transportation permission for ship, rail and road (CSC).
6) General construction supervision approval as storage tank.
7) Extremely robust and high static firmness.
8) Double-wall structure with vacuum leakage indicator.
9) Protective arrangement of the equipment inside the tank body.

 Standard Tank Features:

• Enclosed bounded tank design
• Reduced maintenance costs
• Needs only suitable level hard standing for sitting on site
• Easily transportable
• Corner casting for offloading
• Galvanized ladder at front and bounded pump bay
• Platform for inspection
• 80nb Camlock Male Tanker hose filler c/w Dust Cap connection.
• 80nb Fire Safe Flanged Ball Valve
• Non Return Valve.
• Ant-isyphon valve
• Tank with pump bund, ladder at front(Ladder also can be designed at side wall)
• 600mm dia manway access to internal tank
• Vent valve
• Unit sandblasted to SA2
• Front mounted security doors (optional)
• Tank signage
• Overfill protection valve.
• Three coat Hempen paints, color customized

 Used Place:

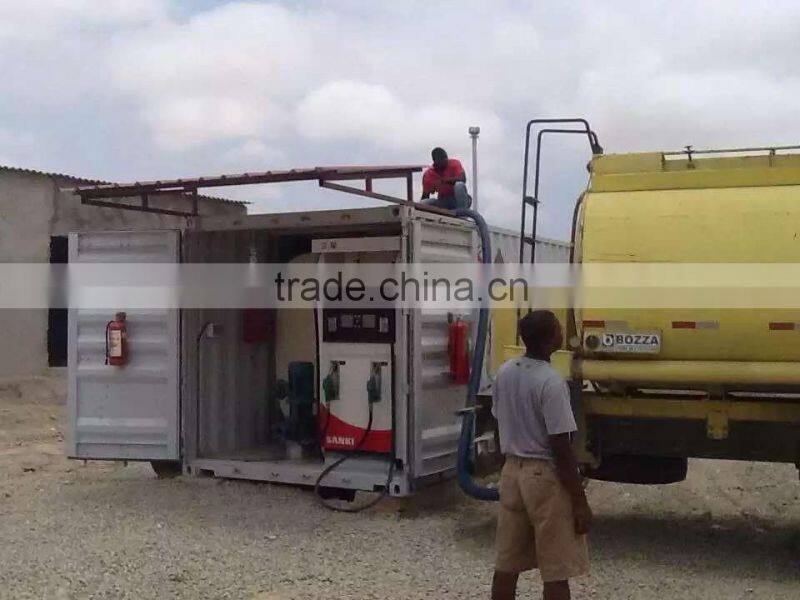

The product is a mobile fuel station, not limited to the time and place. As long as the customer is willing, there can be a customer's premises. Widely used in urban communities, bus stations, ports, airports, large construction sites, highways, parking places, factories, gas stations within companies, and other fixed or temporary sites. The product has good reputation in the international guests. Because the production is limited, the products in short supply.

Special requirement from the customer is available.
