Short Range 3-15cm RFID Car Parking Payment System for Pay-to-park Parking Lots

WQ-861 Car parking system for both occasional parker and registered parker

For a occasional parker, when he comes to entry, he himself presses a button to take a proximity card from entry controller, after thatthe entry barriers auotmatcilly opens and he enters, when he exit where a manual-pay-station is installed nearby, he gives his card to the guard, and the guard read the card into a card reader, parking amount will be shown on the computer, then the parker pay cash and then barrier open and he leaves.

For a registered parker, he swipes this registered proximity card onto entry controller, the entry barrier will automatically open and he enters, the same will happen at exit.

Eqippments as belows:

1, Entrance Equipment:

A), Automatic Barrier (straight arm)

B), Vehicle sensor 1 and cable

C), Equipments for RFID

      a, Box for entry

      b, Control board

      c, ID reader

      d, Card machine

      e, Vehicle sensor 2 and cable

      f: Led Graphic Display

      g: Voice prompt (optional)

      h: Villa intercon system (optional)

      i: power

      j: transformer power (optional)

2,  Exit Equipment:

A), Automatic Barrier (straight arm)

B), Vehicle sensor 1 and cable

C), Equipments for RFID

      a, Box for exit

      b, Control board

      c, ID reader

      d: Led Graphic Display

      e: Voice prompt (optional)

      f: Villa intercon system (optional)

      g: power

      h: transformer power (optional)

3), Management center

A), ID card register

B), Management software and software dog

C), Management computer (no quote)

D), Communication shift

E), ID card

F), The main engine of Villa intercon system (optonal)

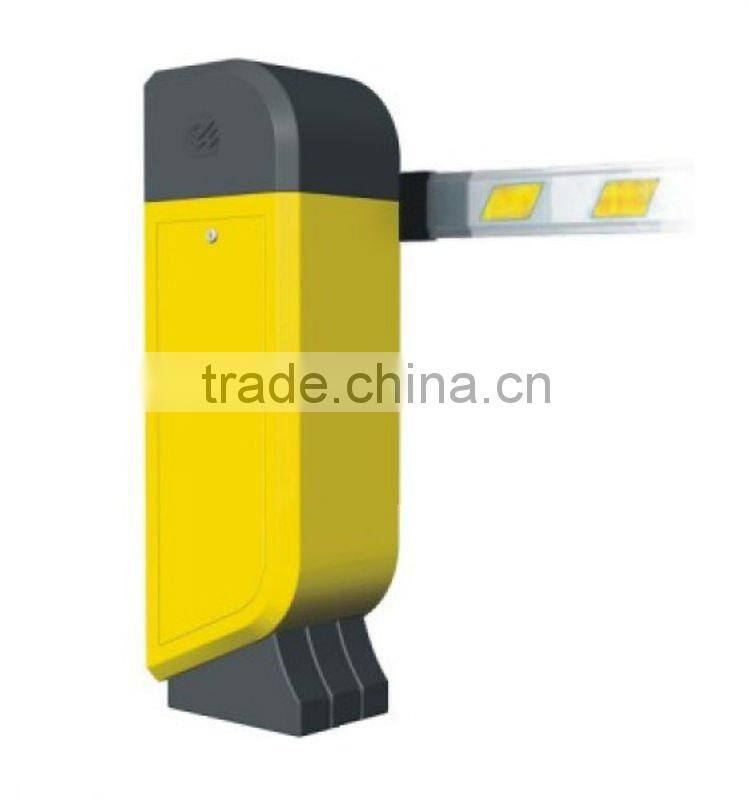

Details of barriers:

size: 330 x 330 x 1100mm

Arm Material: aluminum alloy

Housing  material: 1.8mm cold-rolled steel

Voltage: 220V ± 10, 110 ± 10%

Net weight: 49kg

Motor voltage: 220V

Gross weight: 50kg

Protection grade: IP65

Rail up or down time: 4 to 6 seconds

Transmission sine linkage

Boom type: straight

Rated  power: 80W

Boom length: ≤6000mm

Frequency: 50 to 60Hz

Boom dimension (W x H): 45 x 100mm

Working temperature: -45 to +80 degrees Celsius

Boom weight: 5.5kg

Operating humidity: ≤90% RH (non-condensing)

Operation life: ≥500million times</ul>

Details of Box:

Material: 1.8mm cold-rolled stainless steel

Size:  460*430*1500CM

The system can be achieved by fixed card reader and temporary card two ways

Fixed User open railing barrier by fixed card swiping,

Temporary users entry by getting the temporary card, then computer will display fee, and the users confirm to release after charging
