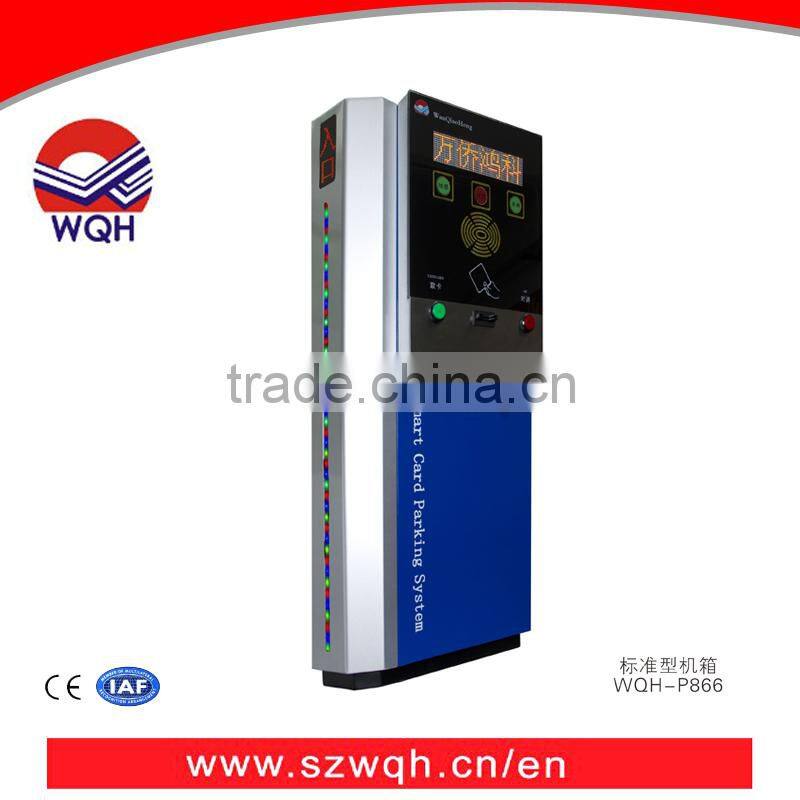

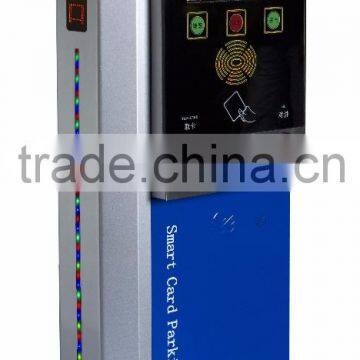

Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk

Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk photo-1
Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk photo-2
Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk photo-3
US$ 300 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Parking ticket machine
Height (mm):
520
Width (mm):
300
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Parking ticket machine
Height (mm) 520
Width (mm) 300
Place of Origin Guangdong, China
Brand Name Wan Qiao
Model Number WQH-P866
Warranty 1 Years, one year

   Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk

Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk

Features:

1.parking ticket machine
2. Voice prompt

3.1 year warranty
4. With Cerificates CE and ISO 9001-2008
5. Both for registered and hourly parker
6.LED/Interphone available



Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk




Specifications:





Name Car parking ticket payment machine
Operating voltage 220V ± 15% 60/50Hz
IC / ID card reader time ≤ 0.1s
Communication RS232/RS485
Baud rate 19200bps/e/8
Spit card / Tunka / spit ticket / scan function (optional)
Paper tickets Material Thermal paper
Paper tickets Size 80 × 70mm
Roll Size 80mm
Ticket time 1s
Scan read the information time 0.1s
Ambient temperature -30 ~ 60  (working) -40 ~ 80  (Storage)
Humidity ≤ 95% non-condensing
Voice prompts Standard System Voice Content
Display Customize the display, supports 10 characters; display brightness ≥ 400cd / m
Standard paging function standard paging function
Chassis dimensions 520 * 300 * 1350 mm



Functions:



1) Multiple network mode, can realize remote data and image transmission;

2) 32-bit ARM dual-core processing technology;

3) Easy to install, debug and maintain;

4) IC, ID, bar code, RFID available in one control board

5) Nesting function available;

6) Extendible long distance read function;

7) Off-line working available;

8) Extendible plate-number identification and auto-printing;
9) Automatic card dispenser;

10) voice prompt available;

11) Flexible system configuration, can be extended to multi-level parking lot management system;

12) waterproof, dustproof and rustproof case

13) Modular structure, high integration

Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk

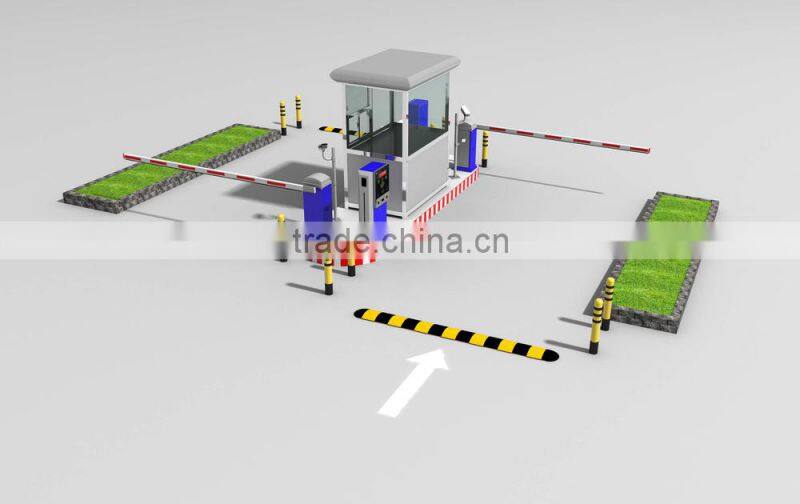

Advantages of Our Parking System:

1. The system can be achieved by fixed card reader and temporary card two ways
Fixed User open railing barrier by fixed card swiping.
2. Temporary users entry by getting the temporary card, then computer will display fee, and the users confirm to release after charging.


Products & Production Line View:(For parking ticket payment marchine)



Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk



Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk



Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk



Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk





Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk





 Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk







Trade Shows

        Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking KioskAwesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk

Packaging & Shipping

Packaing&Shipping,



*Package for Parking ticket payment marchine :

Honycomb Board Box or Plywood Board



*Shipping for Barrier gate:

By air: DHL,Fedex,UPS,TNT,EMS or by sea

Delivery:5-15 working days

Awesome !!! Large LED Screen Display Parking Pay Stations/Parking Meters/Parking Kiosk



Why Choose us



* WQH Tech (Wan Qiao Hong Technology Co., Ltd) is one of the leading designer and manufacturer

of the parking barrier gate, pedestrian barriers and turnstile with 10 years’experience in this industry



* We provide good quality products with reasonable and competitive price



* To improve production efficiency, our company brings in Japanese Amada Fully automatic CNC punch press,CNC cutting bed,CNC bending machine. CNC EDM, Lathe, Milling, Electrostatic spraying, Injection line equipemnts and so on.



* We have excellent skilled workers and technicians for producing good quality Parking payment ,barrier gates and turnstiles



* 12 months warranty;



* Choose the cheapest and safest forwarder;



* Track the order until you get the goods.





Premium Quality Automatic Payment Parking Ticket Machine with factory competitive price , Welcome to contact us !
