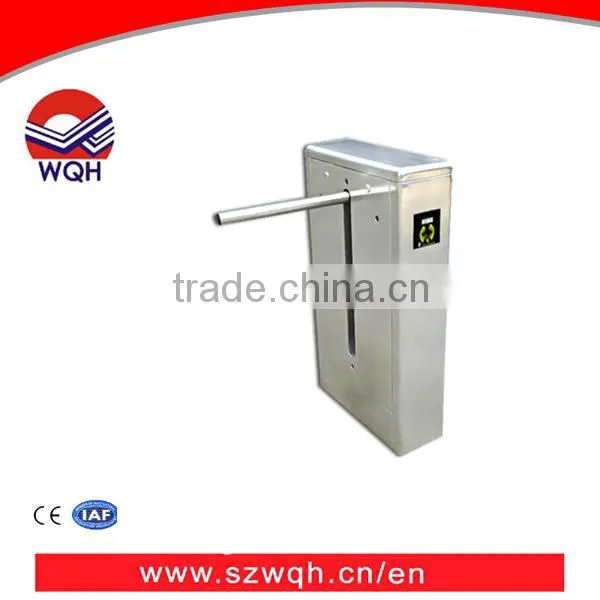

Door Access Control 304# Half Height Turnstile Gate Single Arm

   Door access control 304# half height Turnstile gate

         Stainless steel 304#  Turnstile gate

The WQ-DDZ01 is designed to provide unsupervised access control for office or building. The impenetrable contruction eliminates any unauthorized access to restricted areas. To gain authorized passage through the F100, the user must present a valid card for the access control system. Upon presentation of the valid card. the F100 will unlock and allow the user to pass through the direction requested. The turnstile can also work with push button, finger print and face recognition access control system.

Technical datas:

Product functions and features

1 With a self-test and alarm function, user-friendly maintenance and use

2 Through the main control on the half-built small-press plate, programmable devices running status

3 Mechanical structure, sensor features dual anti-trap, in the process of telescopic boom reset when you meet resistance, automatically stop or in the default time motor stopped working

4 Sound, light alarm functions, including unlawful entry, trailing alarm

5 Erosion control features, in the absence of gate opening signal is received, the arm automatically locked

6 Telescopic synchronization

7 With automatic reset function, gate opening, after a specified period of time does not pass; the system will automatically cancel the user's current access permissions

8 Power off automatically after the channel open, power-on self-closing

9 Connecting with a variety of reading devices which can be linked to the work of receiving the signal relay switch

10 May be one-way or two-way control personnel access to

11Managing computer directly through the remote control and management

12Counting function can be expanded

13Chassis lengthened, telescopic boom material selection

Certifications:

ISO9001-2008

CE

Patent Right

Factory View:

Test Machines:

A.High and low temperature and humidity detector

B.Aging room (60°C aging 72 hours)

C. Salt Spray Tester

D. Simulate transport tester

E. UV Spraying fade detector
