For Community Safety Entrance Access Control Automatic Stainless Steel Half Height Turnstile Gate With Sample Available
Indonesia market hot selling Automatic Stainless steel 304# half height Turnstile gate(ISO9001-2008 and CE approved) for Community Apartment Entrance Access control
We are a professional manufacturer of High Speed Barrier, Automatic Barrier, Car Parking Management System, Turnstiles, Flap gate, Road Blocker, Long Range RFID Reader and Traffic Control Products etc.
We are certified with SGS,CE, ISO9001 who treats quality as our first priority. All our products have been tested with high temperature, low temperature, humidity cabinet, and aging testing.
WQH is ready to serve you anytime, we look forward to hearing form you and cooperating in the near future.
You are welcome to visit our website at :http://wan-qiao.en.china.cn / and any interest please contact me . we will be happy to give you our lowest quotation upon receipt of your detailed requirements.
Call Michelle for more details :
Specifications
2,304# stainless steel
3,24 volt operating system
4,Apply to manage people
5,OEM is welcome

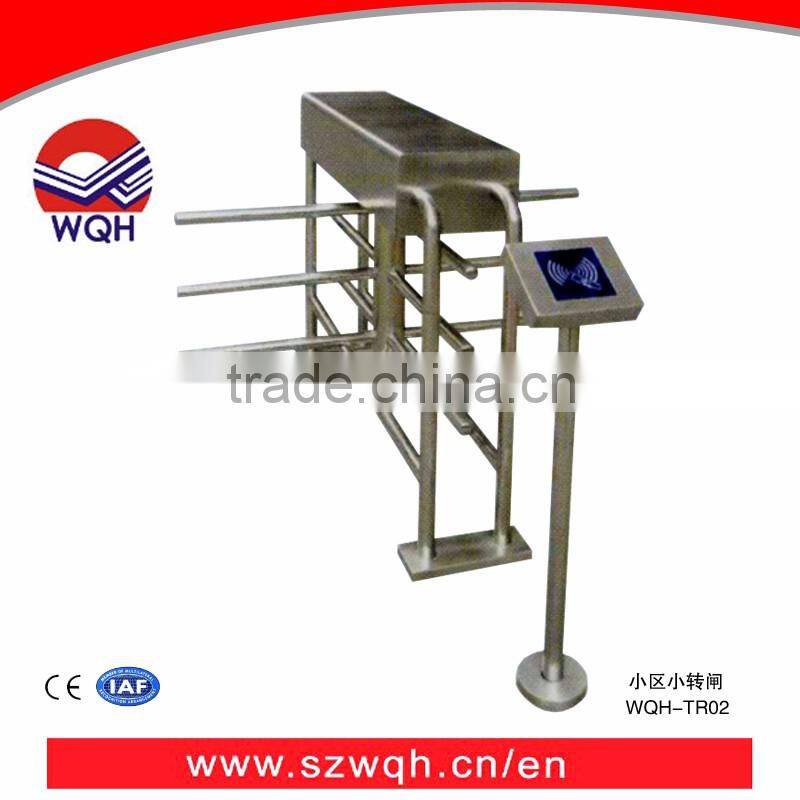

Door access control Stainless steel 304# half height Turnstile gate(ISO9001-2008 and CE approved)
Application:
Mainly used in airport, bus station, office building ,parks, attractions, exhibition hall doors, residential, etc.
Technical data:
Name | Half Height Turnstile | Model | WQ-TR02 |
Housing Size | 1200x1000x1150mm | Passing speed | 30 person/min |
Housing Material | 202or304 grade stainless steel optional | Working Voltage | AC220V±10V,50HZ |
Net Weight | 200kg | Motor voltage | 220V |
Gross Weight | 215kg | Protection grade | IP65 |
Control type | IC/ID/Barcode control | Transmission | Sine Linkage |
Boom type | Straight | Rated Power | 80W |
Boom length | ≤700mm | Frequency | 50~60Hz |
Logic voltage | 24v | Working temperature | -45°C--+80°C |
Working mode | one directional or | Operating humidity | ≤90% non-condensing |
Communication Interface | RS485/RS232 | Operation life | ≥5 million times |
Product features
1 , Self-test and alarm system function, user-friendly maintenance and use, through the master board built-in button, the device can be set up, with all kinds of IC, ID cards, Barcode, magnetic cards
2, Can be extended to small trading system to achieve charging function
3 ,With a count function, at any time to control the number
4 ,Can be set to normally open, normally closed mode of operation to meet the regulatory requirements
5, Using infrared sensors, with illegal entry alarm, followed by the police, the normal people by preventing the clip
6 ,Having a uniform standard external electrical interface with other control devices mounted, easy integration, and through remote control and management of computer
7 ,With other smart card equipment composition Card
8 ,Supporting for direct access to the display channel current state of the pedestrians, guiding the proper and efficient pedestrian movement
9,Supporting the blackout floodgates in order to meet regulatory requirements

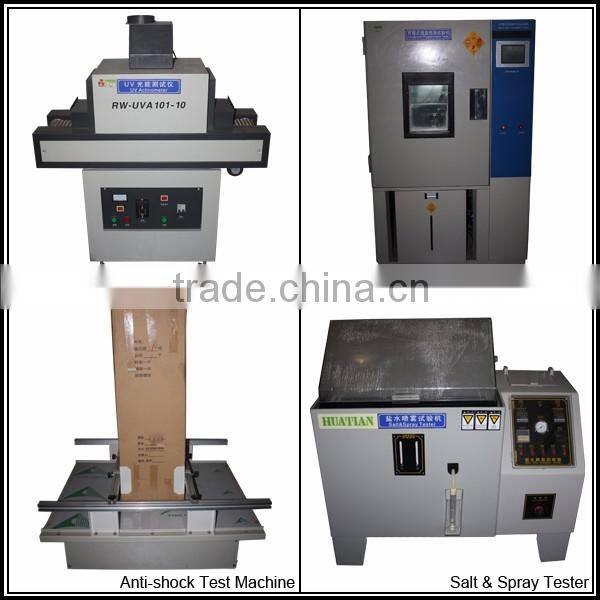

Test Machines:
A. High and Low Temperature and Humidity Detector
B. Aging Room(60°C aging 72 hours)
C. Salt Spray Tester
D. Simulate Transport Tester
E. UV Spraying Fade Detector
