Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > UL USB Adapter 5V1A Travel Charger

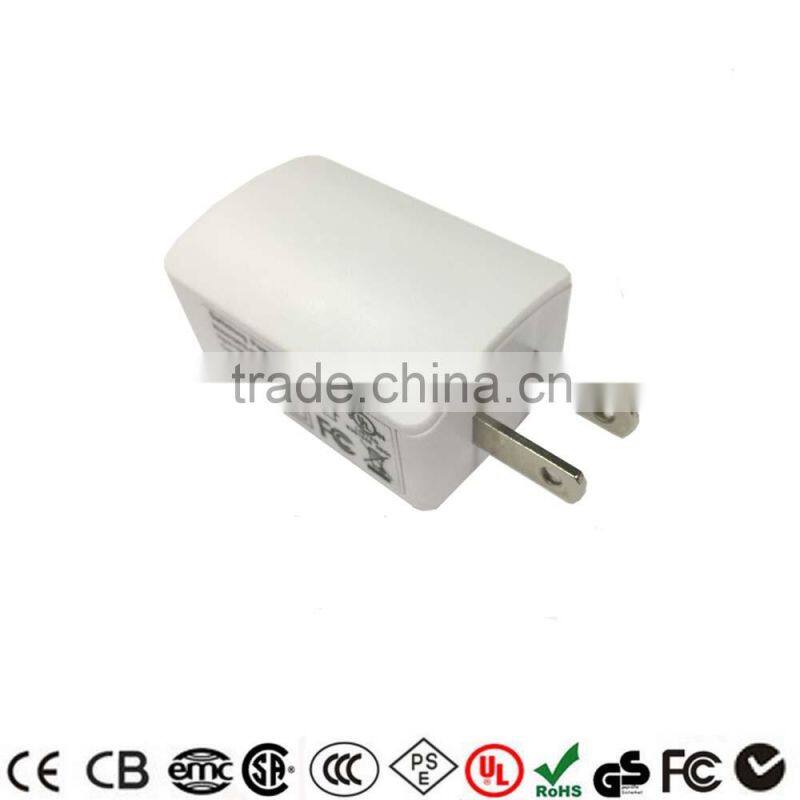

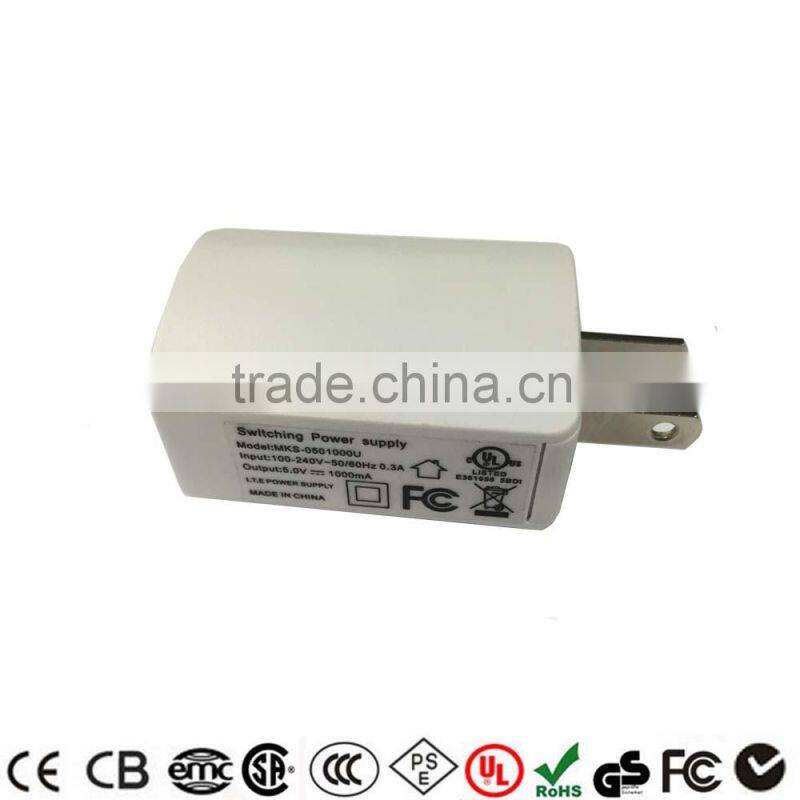

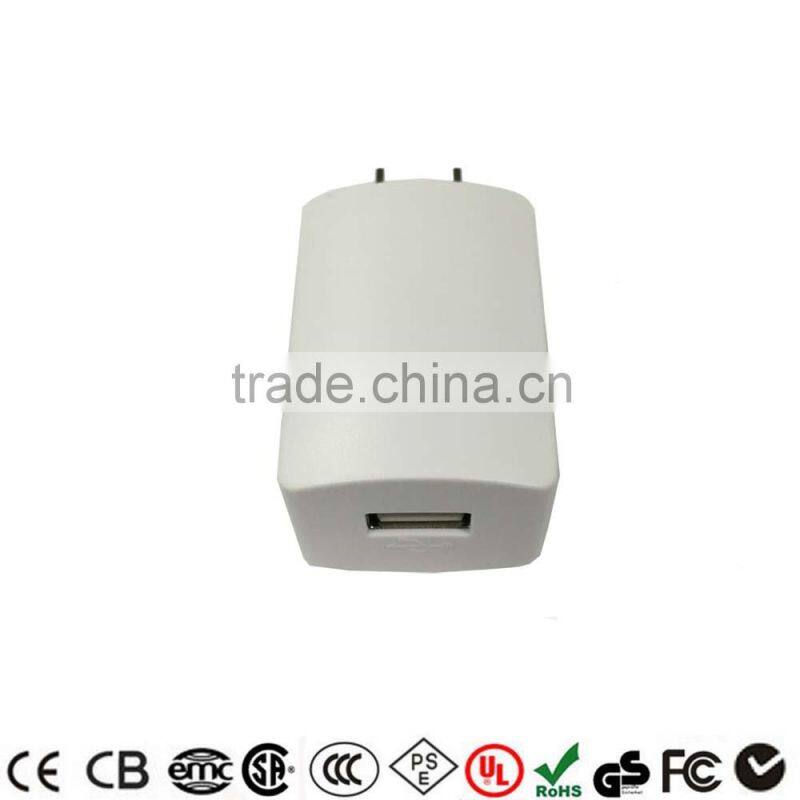

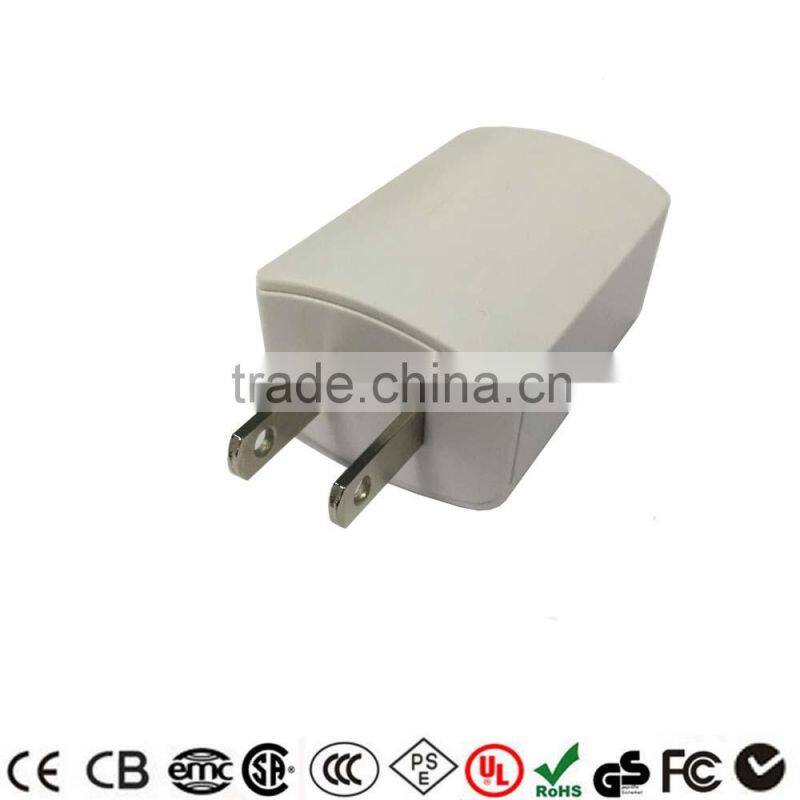

UL USB Adapter 5V1A Travel Charger

UL USB Adapter 5V1A Travel Charger thumbnail-1
UL USB Adapter 5V1A Travel Charger thumbnail-2
UL USB Adapter 5V1A Travel Charger thumbnail-3
UL USB Adapter 5V1A Travel Charger thumbnail-4
UL USB Adapter 5V1A Travel Charger photo-1
UL USB Adapter 5V1A Travel Charger photo-2
UL USB Adapter 5V1A Travel Charger photo-3
UL USB Adapter 5V1A Travel Charger photo-4
US$ 1.05 - 1.24 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM / MERRYKIND
Model Number:
AC DC Adapter
Contact Supplier Request Quote Chat Now
Shenzhen Fuqing Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM / MERRYKIND
Model Number AC DC Adapter
Usage Other, Switch, Phone/ Small home appliance/game player
Output Type DC
Connection Plug In
Product Description

UL USB adapter 5V1A travel charger


Output Type: DC

Connection: Plug In

Color: Black/White

Input voltage: AC100~240V

Frequency: 50-60Hz

Output power: 5W

Output voltage: 5V

Output current: 1A

Certificate: UL CE GS PSE CCC ROHS

Warranty: Two Years

AC plug: USA EURO UK AUS Plugs

Product Name: USB adapter/ ac dc power adapter / switch adapter


Shenzhen Fuqing Technology Co., Ltd. manufactures power transformers, audio transformers, high-frequency transformers, rectifiers, chargers, switching power adapter etc. We are passionate about what we do, giving you quality products at the right price and providing reliable solutions. That is why we have good name in the fields our product involved including information industry, household appliances, lighting industry, consumer electronics industry. We can produce more than 1000,000pcs Per month with 7 advanced production lines. Besides, We got kinds of SAFETY GENCY APPROVAL from our main markets for our products,like the UL,GS,CE,PSE,CB,3C,etc.

Product Parameters




INPUT
Input Plug
UL ,JP, EU, UK,AU,3C Standards available
VOLTAGE RANGE
100 - 240 V  AC
FREQUENCY RANGE
50-60Hz
AC INPUT CURRENT
1.5A max at 230VAC at full load
INRUSH CURRENT
40A at 230VAC
LEAKAGE CURRENT
0.75mA max at 240VAC






OUTPUT
VOLTAGE
5V DC
VOLTAGE RANGE
±5%
CURRENT
1000mA
RANGE POWER
5W
RIPPLE & NOISE
≤100mVp-p
VOLTAGE TOLERANCE
±3%
LINE REGULATION
±3%
LOAD REGULATION
±3%
Turn On Delay Time
<3S  at AC 110V and full load




PROTECTION
Over-Current Protection
120%~150% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
120%~150%
Protection type: Shut down output voltage on to recover
Short Circuit Protection
RTH>70℃
Protection type: Shut down output voltage, repower on to recover


ENVIRONMENTAL
WORKING TEMPERATURE
-20 ℃~50℃
STORAGE TEMPERATURE
-20 ℃~50℃
WORKING HUMIDITY
20%~80%RH
STORAGE HUMIDITY
20%~70%RH
Detailed Images
Main Power Supply


USB Adaptor


Commonly parameters:

Plug:EU,UK,AU,JP,UL,3C
Input:100-240V AC
Frequency:50-60Hz
Output:DC    5V    1000MA                           5V    1200MA
                         5V    2000MA                          6V    1000MA
                         6V    500MA                             6V    2000MA
                         9V    500MA                             9V    600MA
                         9V    1000MA                          12V   500MA
                         24V  500MA



Switching Adaptor

Commonly parameters:

Plug:EU,UK,AU,JP,UL,3C
Input:100-240V AC
Frequency:50-60Hz
Output:DC  5V 1000MA             5V 1200MA             5V 2000MA             5V 3000MA

                       6V 1000MA             6V 500MA               6V 2000MA
                       9V 500MA                9V 600MA               9V 1000MA             9V 2000MA

                       12V 500MA             12V   1000MA         12V  1500MA

                       15V   1000MA
                       24V 500MA             24V   700MA            24V 1000MA

Linear Adaptor

Model:MKD-280450200

INPUT:120V AC 60Hz (USA)    OUTPUT:3-24V   DC

             100V AC 50Hz (JP)                    50--600mA

             220V AC 50Hz(CN)

             230V AC 50Hz (EU)

             240V AC  50Hz(AU)






Model:MKD-351200350

INPUT: 120V AC 60Hz (USA)     OUTPUT:3-24V DC
             100V AC 50Hz (JP)                      50--800mA
             220V AC 50Hz(CN)
             230V AC 50Hz (EU)
             240V AC 50Hz(AU)



Model:MKA-482401000

INPUT: 120V AC 60Hz (USA)    OUTPUT:3-24V DC
              100V AC 50Hz (JP)                     50--1500mA
              220V AC 50Hz(CN)
              230V AC 50Hz (EU)
              240V AC 50Hz(AU)



Model:MKA-572402000

INPUT:120V AC 60Hz(USA)      OUTPUT:3-24V DC
             100V AC 50Hz(JP)                       50--2000mA
             220V AC 50Hz(CN)
             230V AC 50Hz(EU)
             240V AC 50Hz(AU)

Certifications
Company Information

About Us


Shenzhen Fuqing Technology Co., Ltd. was founded in 2004 and produce power adaptor from 2000, Located in Changfeng Industrial Park, Dongkeng Community, Gongming Office, Guangming New District, Shenzhen, China. There are 200 like-minded Staffs in our factory. Covering the area of 2500 m2, our factory is equipped with advanced facilities for production and development. We adopt advanced manufacturing technique and we got the ISO9001 certificate in 2001,and got kinds of SAFETY AGENCY APPROVAL from our main markets for our products. We are aimed at quality and value for money. We are proud of experienced and professional Team, good quality products, Modern equipment, on time delivery and wholeheartedly service.

Our Services
Sample
We offer free adaptor samples within 3 pieces.
Adaptor samples should be sent after we receive your courier fee.

Customization
Product : we can produce your requested product after the comfirmation of our Technicists.
Package : PE Bag , White Box,Blister Box or Customized Packaging.


Choosing Us
Our goal is to be a responsible organization, contributing to our community and producing quality positive products.
Our products are guaranteed to be the best quality we look forward wholeheartedly to providing you with quality products and service.









Packing & Delivery

Packaging Details:

Free PE bag or white box for each power adapter

Blister Package or customized please contact us.


Delivery Detail:

International Express: 3-5 workdays

Air Shipping: 5-7 workdays

Sea Shipping: 20-28 days
