Help CenterJD-180 Light Weight Angle Meter Sensor
Related Products
lightweight angle meter sensor
1.Discription

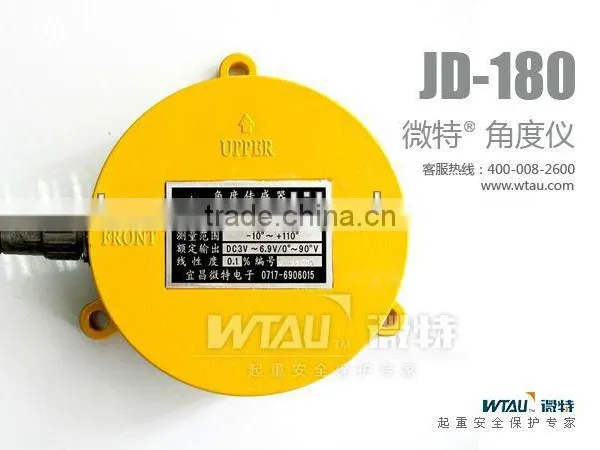

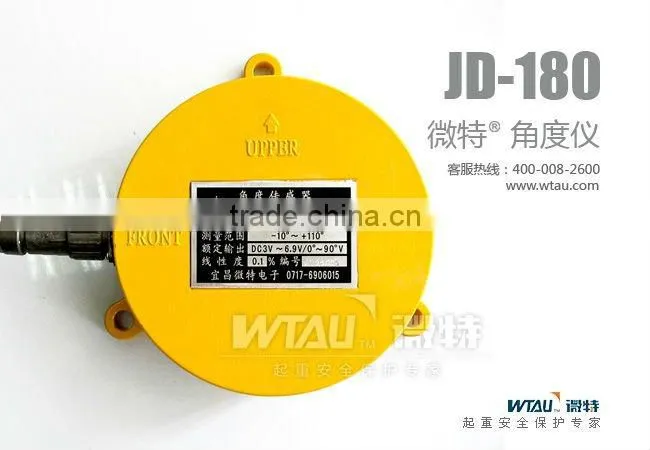

JD - 180 type Angle Meter is composed of potentiometer and pendulum; It can be installed on crane boom. The boom on point of view is measured by the heavy hammer driving potentiometer rotating, then output corresponding voltage;
2.Main Technical Data for Angle Meter
Model: JD180-L (Left Mounted) JD180-R (Right Mounted)
Components:conductive plastic potentiometer (CPP)
Measuring Range: -10°~+110°
Rated Output: DC3~6.9V/0 ~ 90°
Working Voltage: DC15V
Linearity:0.1,0.5,1%
Impact Resistance: 20g15~20ms
Water Resistance: Waterproof
Working Humidity: 10~95%
Working Temperature: -20~+60°C

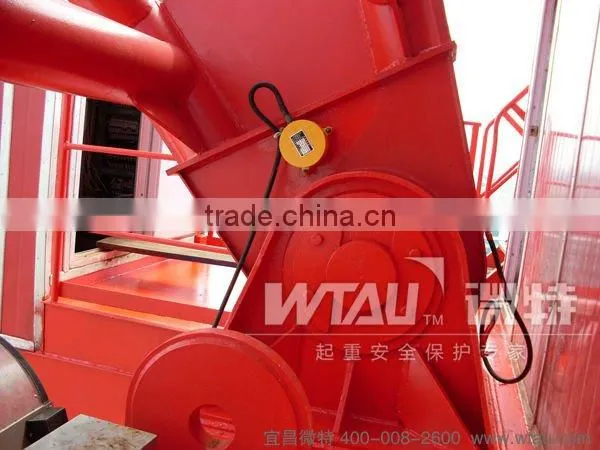

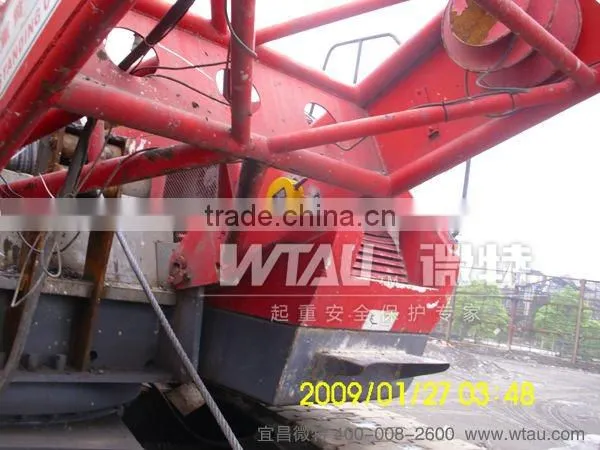

Installation Picture Show
Welcome to visit us!
Yichang WTAU Electronic Equipment Co. Ltd is a national high-tech enterprise which located in the “Hydropower capital”— Yichang. WTAU is committed to researching , developing and producing safety devices for crane cranes , automatic monitoring control systems , etc. WTAU puts the principle “make sure the lifting equipments are operated safely and reliably” as our duty and takes the high-tech as the core. WTAU has awarded many patents and major achievements of science and technology. The Torque Limiter, Weight Limiter, Anemometer ,etc. which are researched independently are widely used in electrical, chemical, steel, metallurgy, construction, ports, shipping and other industries.
