Help CenterWTZ-A270 Overload Limiter for Cranes Weight Measurement
Related Products
Specifications

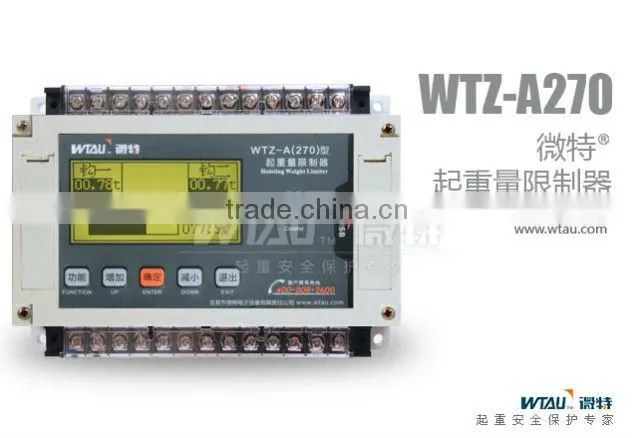

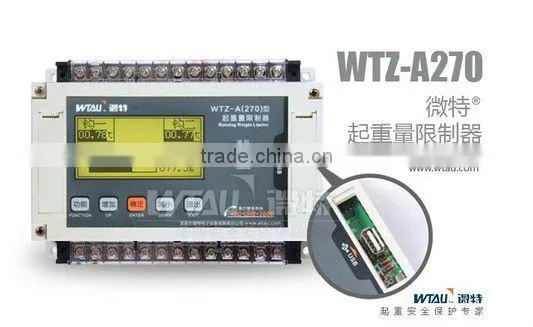

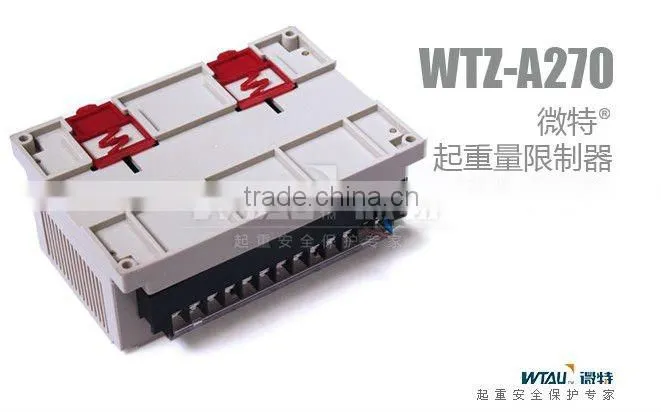

WTZ-A270 load moment limiter
1.Stable system
2.1 year quality gurantee
3.Easy to operate
4.Long service life
WTZ-A270 load moment limiter
1.Description
WTZ-A270 load moment limiter is a new type of smart weigh overload protector, which measures the changes of the weight of the loaded goods by a preset weight sensor and displays the actual load instantly on the display instrument. When the load reaches the given point of rated load, the acousto-optic alarm of the hoisting weight limiter will be triggered, with the switching value output displayed. The whole system is composed of sensor, connecting cable, microcomputer host and so on. The device is designed and manufactured in accordance with requirements of GB 12602-2009 “Lifting Machinery Overload Protection Devices” and GB / T 3811-2008 “Crane Design Specification”.
With reasonable layout, easy installation, simple operation, WTZ-A270 load moment limiter works well with high accuracy and other advantages.
2. WTZ-A270 load moment limiter Main technical parameters
Display Instrument Size: 64*128LCD
Resolving Ability: 0.1T or 0.01T
Synthetic Errors: ≤5%F.S.;
Output Signal: RS485 or 4-20mA
Working Condition: -20°C~70°C
Relative Humidity: 90%RH(20°C)
Power Supply: AC 220V ±10% DC24V±10%
IP Grade: IP44
Alarm Volume:>60db
Installation:DIN rail mounted installation
Input Signal: Less than 3 controls
Output Control: Less than 5 controls
Output Way:4-20mA,RS485,Relay
3.Main Functions
1.multilevel password protection function
2.Memory function at power-off moment, long continuous service
3.It has watchdog appliance and strong antijamming capability
4.Easy installation and debugging
5.High universality, applicable to different conditions.
WTZ-A270 load moment limiter produced by Yichang WTAU electronic equipment co.,ltd.
achieves national advanced level and it is recognized for major scientific and technological achievements in Hubei province. Otherwise, it obtains Hubei scientific and technological achievements certificate.
WTZ-A270 load moment limiter
Yichang WTAU Electronic Equipment Co. Ltd is a national high-tech enterprise which located in the “Hydropower capital”— Yichang. WTAU is committed to researching , developing and producing safety devices for crane cranes , automatic monitoring control systems , etc. WTAU puts the principle “make sure the lifting equipments are operated safely and reliably” as our duty and takes the high-tech as the core. WTAU has awarded many patents and major achievements of science and technology. The Torque Limiter, Weight Limiter, Anemometer ,etc. which are researched independently are widely used in electrical, chemical, steel, metallurgy, construction, ports, shipping and other industries.
