Tower Crane Monitoring

Specifications

  tower crane monitoring

Description

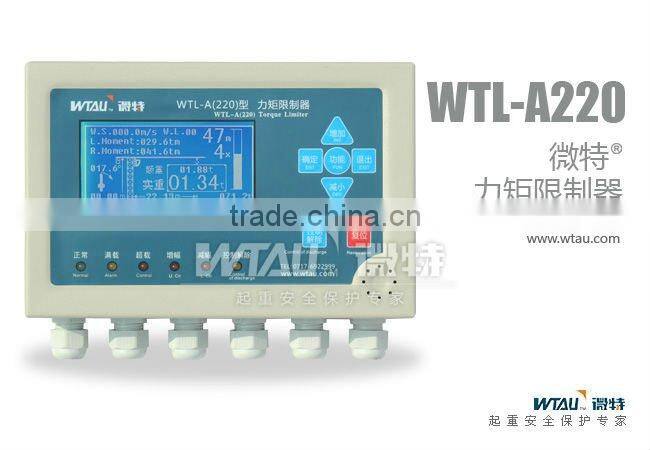

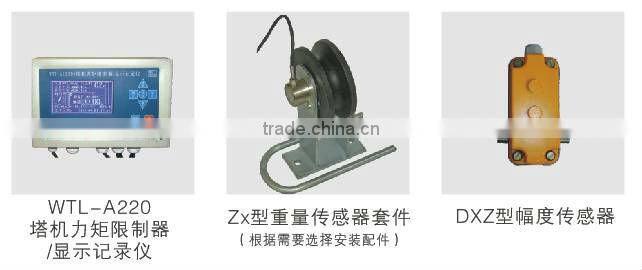

WTL-A220 tower crane monitoring  is a safety device specially designed for tower crane, it’s also called for Crane Safety Guard or Black Box for Tower Crane.

electronic load controller

Technical Data;

• Weight Measurement Range: 0T~400T
• Resolving Ability: 0.1T
• Synthetic Errors: ≤5%F.S.;
• Equipped with Output Interface RS485
• Working Condition: -20°C~60°C
• Relative Moisture under Working Condition: 90%RH(20°C)
• Working Voltage: AC 220V ±25%
• Preset Output Contact Capacity: AC220V 7A
• IP Grade: weight sensor with IP68; Monitor with IP54
