Japan PSE Certificate AC to AC Adapter Power Transformer with Valid Copy

FOB Price

USD $1.18 - $1.53 / Piece

500 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	OEM / MERRYKIND	Model Number:	AC AC Adapter
Usage:	Other, Switching	Output Type:	Other, AC, Single	Connection:	Plug In

Product Description

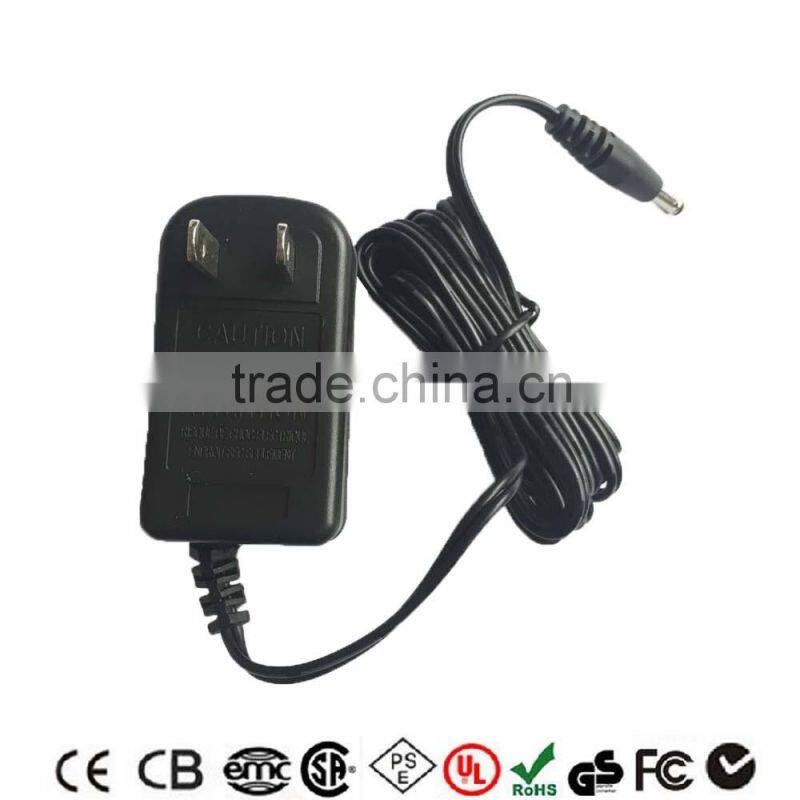

AC AC POWER SUPPLY/ LINEAR ADAPTER

Output Type: AC

Connection: Plug In

Input:AC 100V

Frequency: 50 Hz

Output voltage: 3-12V AC

Output current: 100-600 mA

Certificate: UL CE GS PSE SAA ROHS etc.

Warranty: 2 years

Shenzhen Fuqing Technology Co., Ltd. manufactures power transformers, audio transformers, high-frequency transformers, rectifiers, chargers, linear adapter,switching adapter etc. We are passionate about what we do, giving you quality products at the right price and providing reliable solutions. That is why we have good name in the fields our product involved including information industry, household appliances, lighting industry, consumer electronics industry. We can produce more than 1000,000pcs Per month with 7 advanced production lines. Besides, We got kinds of SAFETY GENCY APPROVAL from our main markets for our products,like the UL,GS,CE,PSE,CB,SAA,FCC,3C,etc.

Detailed Images

Product Parameters

INPUT	Input Plug	EU Standard (JP, UL, UK,AU,3C standards available)
	VOLTAGE RANGE	AC 100V
	FREQUENCY RANGE	50 /60 Hz
	AC INPUT CURRENT	1.5A max at 230VAC at full load
	INRUSH CURRENT	40A at 230VAC
	LEAKAGE CURRENT	0.75mA max at 240VAC
OUTPUT	VOLTAGE	AC 3-12V
	VOLTAGE RANGE	±5%
	LOAD CURRENT	100-600mA
	RANGE POWER	0.5-2W
	VOLTAGE TOLERANCE	±3%
	LINE REGULATION	±3%
	LOAD REGULATION	±3%
	Turn On Delay Time	<3S at AC 110V and full load
PROTECTION	Over-Current Protection	120%~150% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage Protection	120%~150% Protection type: Shut down output voltage on to recover
	Short Circuit Protection	RTH>70℃ Protection type: Shut down output voltage, repower on to recover
ENVIRONMENTAL	WORKING TEMPERATURE	-20 ℃~50℃
	STORAGE TEMPERATURE	-20 ℃~50℃
	WORKING HUMIDITY	20%~80%RH
	STORAGE HUMIDITY	20%~70%RH

Main Power Supply

USB Adaptor

Commonly parameters:

Plug:EU,UK,AU,JP,UL,3C

Input:100-240V AC

Frequency:50-60Hz

Output:DC 5V 1000MA 5V 1200MA

5V 2000MA 6V 1000MA

6V 500MA 6V 2000MA

9V 500MA 9V 600MA

9V 1000MA 12V 500MA

24V 500MA

Switching Adaptor

Commonly parameters:

Plug:EU,UK,AU,JP,UL,3C
Input:100-240V AC
Frequency:50-60Hz
Output:DC 5V 1000MA 5V 1200MA 5V 2000MA 5V 3000MA

6V 1000MA 6V 500MA 6V 2000MA
9V 500MA 9V 600MA 9V 1000MA 9V 2000MA

12V 500MA 12V 1000MA 12V 1500MA

15V 1000MA
24V 500MA 24V 700MA 24V 1000MA

Main Products

Model:MKD-280450200

INPUT:120V AC 60Hz (USA) OUTPUT:3-24V AC

100V AC 50Hz (JP) 50--600mA

220V AC 50Hz(CN)

230V AC 50Hz (EU)

240V AC 50Hz(AU)

Model:MKD-351200350

INPUT:120V AC 60Hz (USA) OUTPUT:3-24V AC
100V AC 50Hz (JP) 50--800mA
220V AC 50Hz(CN)
230V AC 50Hz (EU)
240V AC 50Hz(AU)

Model:MKA-482401000

INPUT:120V AC 60Hz (USA) OUTPUT:3-24V AC
100V AC 50Hz (JP) 50--1500mA
220V AC 50Hz(CN)
230V AC 50Hz (EU)
240V AC 50Hz(AU)

Model:MKA-572402000

INPUT:120V AC 60Hz(USA) OUTPUT:3-24V AC
100V AC 50Hz(JP) 50--2000mA
220V AC 50Hz(CN)
230V AC 50Hz(EU)
240V AC 50Hz(AU)
