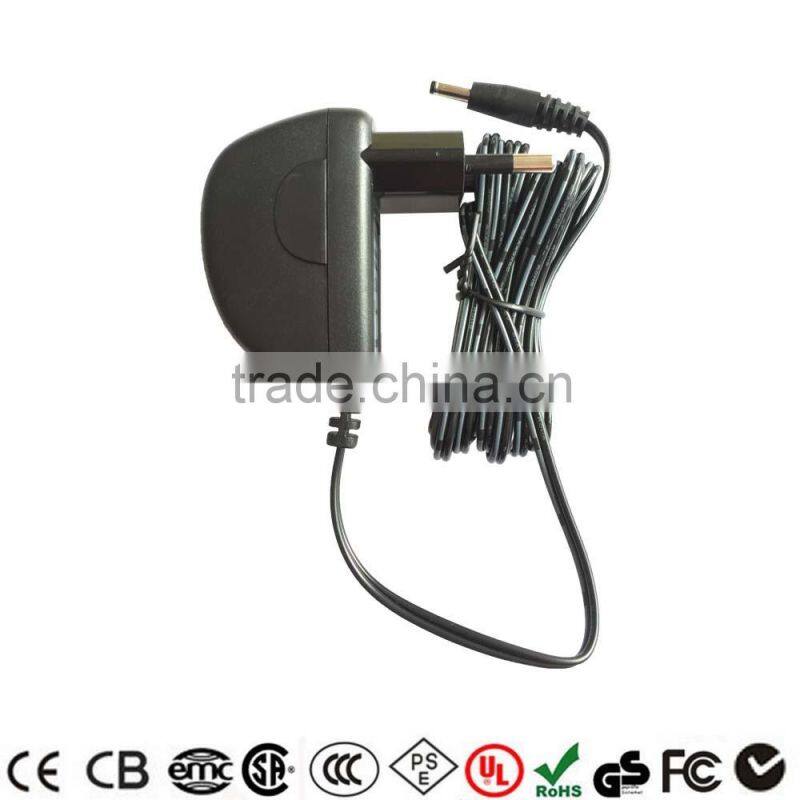

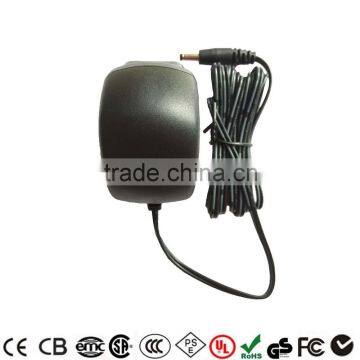

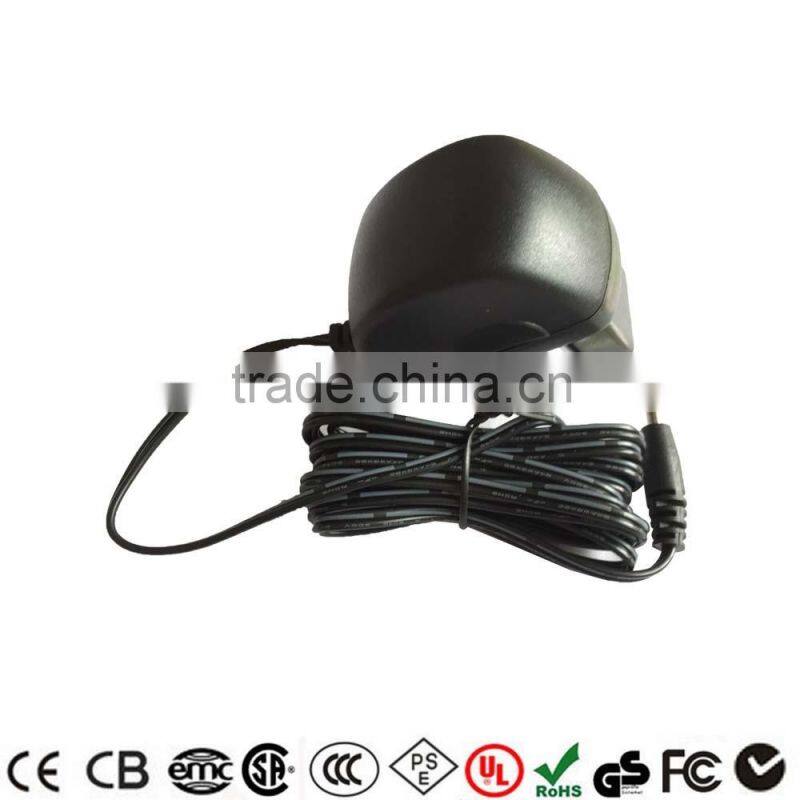

AC/AC Adapter Linear Power Supply

Shenzhen Fuqing Technology Co., Ltd.
AC/AC Adapter Linear Power Supply thumbnail-1
AC/AC Adapter Linear Power Supply thumbnail-2
AC/AC Adapter Linear Power Supply thumbnail-3
AC/AC Adapter Linear Power Supply thumbnail-4
AC/AC Adapter Linear Power Supply photo-1
AC/AC Adapter Linear Power Supply photo-2
AC/AC Adapter Linear Power Supply photo-3
AC/AC Adapter Linear Power Supply photo-4
US$ 1.25 - 1.86 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM / MERRYKIND
Model Number:
AC AC Adapter
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM / MERRYKIND
Model Number AC AC Adapter
Usage Other, Switching
Output Type Other, DC, Single
Connection Plug In
Product Description

AC DC POWER SUPPLY/ LINEAR ADAPTER

Output Type: AC

Connection: Plug In

Input:AC 100V 120V 220V 230V 240V

Frequency: 50/60 Hz

Output voltage: 3-24V AC

Output current: 100-2000 mA

Certificate: UL CE GS PSE SAA ROHS etc.

Warranty: 2 years



Shenzhen Fuqing Technology Co., Ltd. manufactures power transformers, audio transformers, high-frequency transformers, rectifiers, chargers, linear adapter,switching adapter etc. We are passionate about what we do, giving you quality products at the right price and providing reliable solutions. That is why we have good name in the fields our product involved including information industry, household appliances, lighting industry, consumer electronics industry. We can produce more than 1000,000pcs Per month with 7 advanced production lines. Besides, We got kinds of SAFETY GENCY APPROVAL from our main markets for our products,like the UL,GS,CE,PSE,CB,SAA,FCC,3C,etc.

Detailed Images
Product Parameters




INPUT
Input Plug
EU Standard (JP, UL, UK,AU,3C standards available)
VOLTAGE RANGE
AC 100V 120V 220V 230V 240V
FREQUENCY RANGE
50 /60 Hz
AC INPUT CURRENT
1.5A max at 230VAC at full load
INRUSH CURRENT
40A at 230VAC
LEAKAGE CURRENT
0.75mA max at 240VAC






OUTPUT
VOLTAGE
AC 3-24V
VOLTAGE RANGE
±5%
LOAD CURRENT
100-2000mA
RANGE POWER
0.5-48W
VOLTAGE TOLERANCE
±3%
LINE REGULATION
±3%
LOAD REGULATION
±3%
Turn On Delay Time
<3S  at AC 110V and full load




PROTECTION
Over-Current Protection
120%~150% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
120%~150%
Protection type: Shut down output voltage on to recover
Short Circuit Protection
RTH>70℃
Protection type: Shut down output voltage, repower on to recover


ENVIRONMENTAL
WORKING TEMPERATURE
-20 ℃~50℃
STORAGE TEMPERATURE
-20 ℃~50℃
WORKING HUMIDITY
20%~80%RH
STORAGE HUMIDITY
20%~70%RH
Main Power Supply


USB Adaptor


Commonly parameters:

Plug:EU,UK,AU,JP,UL,3C
Input:100-240V AC
Frequency:50-60Hz
Output:DC    5V    1000MA                           5V    1200MA
                         5V    2000MA                          6V    1000MA
                         6V    500MA                             6V    2000MA
                         9V    500MA                             9V    600MA
                         9V    1000MA                          12V   500MA
                         24V  500MA



Switching Adaptor

Commonly parameters:

Plug:EU,UK,AU,JP,UL,3C
Input:100-240V AC
Frequency:50-60Hz
Output:DC  5V 1000MA             5V 1200MA             5V 2000MA             5V 3000MA

                       6V 1000MA             6V 500MA               6V 2000MA
                       9V 500MA                9V 600MA               9V 1000MA             9V 2000MA

                       12V 500MA             12V   1000MA         12V  1500MA

                       15V   1000MA
                       24V 500MA             24V   700MA            24V 1000MA

Main Products

Model:MKD-280450200

INPUT:120V AC 60Hz (USA)    OUTPUT:3-24V DC

             100V AC 50Hz (JP)                    50--600mA

             220V AC 50Hz(CN)

             230V AC 50Hz (EU)

             240V AC  50Hz(AU)






Model:MKD-351200350

INPUT:120V AC 60Hz (USA)    OUTPUT:3-24V DC
             100V AC 50Hz (JP)                      50--800mA
             220V AC 50Hz(CN)
             230V AC 50Hz (EU)
             240V AC 50Hz(AU)



Model:MKA-482401000

INPUT:120V AC 60Hz (USA)    OUTPUT:3-24V DC
              100V AC 50Hz (JP)                    50--1500mA
              220V AC 50Hz(CN)
              230V AC 50Hz (EU)
              240V AC 50Hz(AU)



Model:MKA-572402000

INPUT:120V AC 60Hz(USA)     OUTPUT:3-24V DC
             100V AC 50Hz(JP)                      50--2000mA
             220V AC 50Hz(CN)
             230V AC 50Hz(EU)
             240V AC 50Hz(AU)
