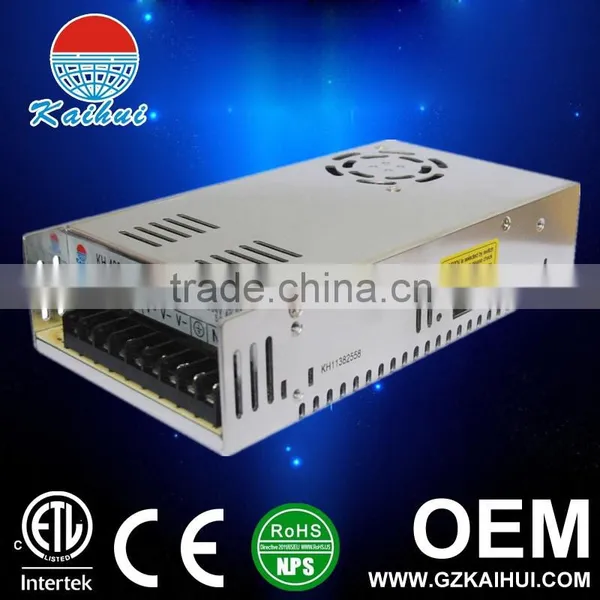

emergency power supply 12v dc ups battery backup 350w switching power supply
350W switching power |
|
|||||
Features: | ||||||
High quality,competitive price | ||||||
High efficiency, low temperature | ||||||
Product: Light/ Thin/ Short/ Small | ||||||
Built-in EMI filter, low ripple noise | ||||||
100% full load burn-in test | ||||||
Protections: Short circuit/ Over load | ||||||
Input voltage range -----------176-264VAC | ||||||
Input frequency -----------47~63Hz | ||||||
Charge mode -------- rated voltage,(current charge) | ||||||
Over load protection ------105%~150%(rated load),Auto-recovery | ||||||
Setup,rise,hold up time ----200ms,100ms,30ms/230V | ||||||
|
Withstand voltage---------- Input-Output: AC1.5KVACV,1min; Input-Ground:AC1.5KVACV,1min; | ||||||
Working temperature ------ -10~+50℃@100%, 60℃@60%load | ||||||
Safety standards -----------MeetGB4943 | ||||||
Weight---------------1.10kg | ||||||
Code |
Item No. |
Output |
Tol. |
R&N |
Effi. |
|
Single Output | ||||||
1020 |
KDC350-12 |
+12V,25A +13.8V,4A |
±10% ±2% |
100mV |
80% |
|
1021 |
KDC350-24 |
+24V,12A +27.6V,2A |
±10% ±2% |
200mV |
85% |
|
1022 |
KDC350-48 |
+48V,6A +54V,2A |
±10% ±2% |
200mV |
85% |
|
High quality,competitive price
High efficiency, low temperature
Product: Light/ Thin/ Short/ Small
Built-in EMI filter, low ripple noise
100% full load burn-in test
Protections: Short circuit/ Over load
