Home > Products > Uv and IR Coating Machine > 340mm Photo Laminating Machine Roller Coating Varnish Tree Machine
340mm Photo Laminating Machine Roller Coating Varnish Tree Machine
- Guangzhou
- T/T
You May Like
Product Details
| Condition | New | Type | Other, photo laminating machine | |
| Automatic Grade | Semi-Automatic | Place of Origin | Guangdong, China | |
| Brand Name | HY | Model Number | LM-A | |
| Voltage | 220v/50hz | Power(W) | 2.5kw | |
| Dimension(L*W*H) | 750*935*500mm | Weight | 110kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description

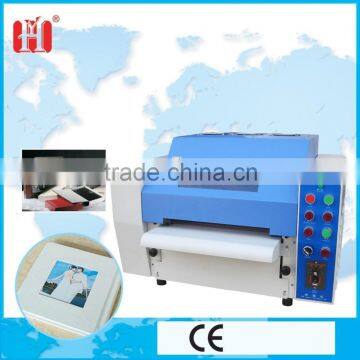

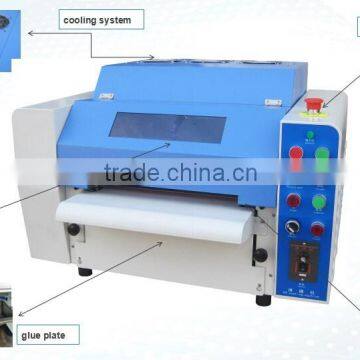

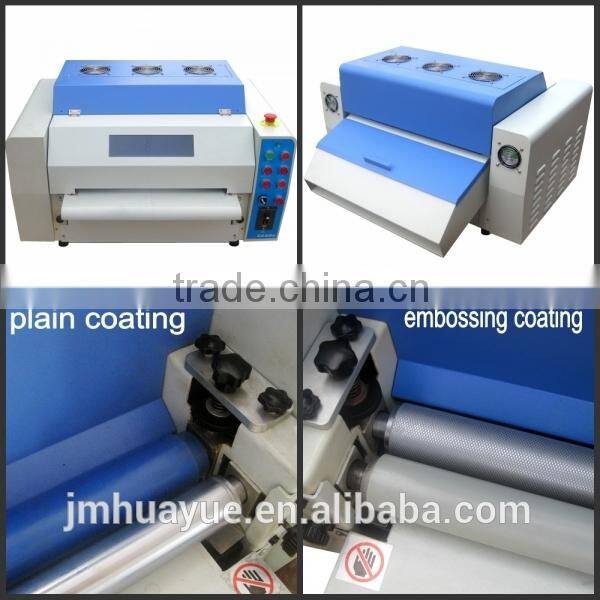

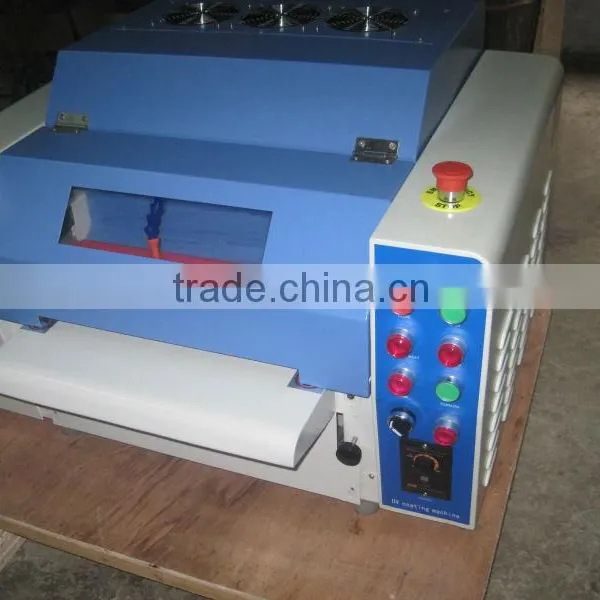

Photo Laminating Machine Roller Coating Varnish Tree Machine
Specifications
Laminating width | 12” | 18” | 24” |
Laminating thickness(mm) | 10 | 10 | 10 |
Laminating speed(m/minute) | 15 | 15 | 15 |
Laminating cost(RMB/sqm) | 0.4 | 0.4 | 0.4 |
Voltage | AC220/50HZ | AC220/50HZ | AC220/50HZ |
Power(kw) | 2.5 | 4.5 | 6.5 |
N.W./G.W.(kgs) | 72.2/97.5 | 96/124 | 118/146 |
Machine dimension(mm) | 732*935*495 | 860*935*495 | 1012*935*495 |
Packing size(mm) | 770*815*705 | 897*778*714 | 1050*815*705 |
Main Feature
- UV dry system or both uv and ir dry systems in one machine,best quality for laser printing sheet.
- Adjustable laminating speed
- Adjustable roller position suitable for various material thickness
- Uv varnish is recycling
- Low cost than the film lamination
- Small occupation
- Light weight and easy to use
- Easy to clean the machine with alcohol
Cost analysis
the thickness of the uv liquid can be adjusted , normally it’s 3-5g/m2 and it can be diluted by alcohol.One kilogram of uv liquid can coat an area of 300 m2 pictures,which means that the actual cost is 0.3 RMB /m2 to 0.5 RMB/m2, If cold lamination, the prime cost is 7.5RMB/m2,the prime cost for inkjet printer machine is 3-5RMB/m2,hence buying a uv coating machine is a machine that earns money.
PACKAGE

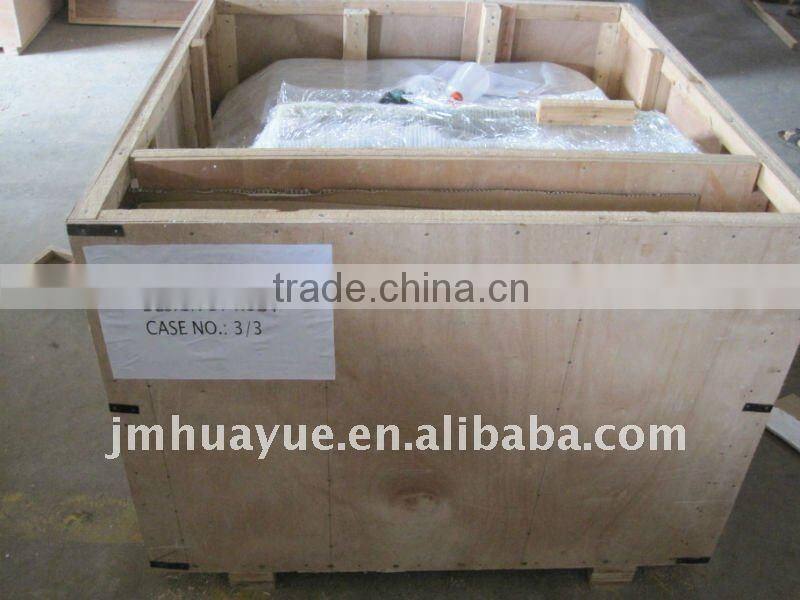

Plywood box is suitable for the export and long transportation,free fumigation.
showroom and workshop
Certification
contact person:Yi
QQ:810562596
phone:(+86)750-3222029
Contact Us
- Jiangmen Huayue Photographic Equipment Factory
- Contact nameyi che Chat Now
- Phone86-750-3222029
- AddressNo.A25 ,Dongfeng Industrial Zone ,Pengjiang District,Jiangmen City,Guangdong Province,China, Jiangmen, Guangdong
