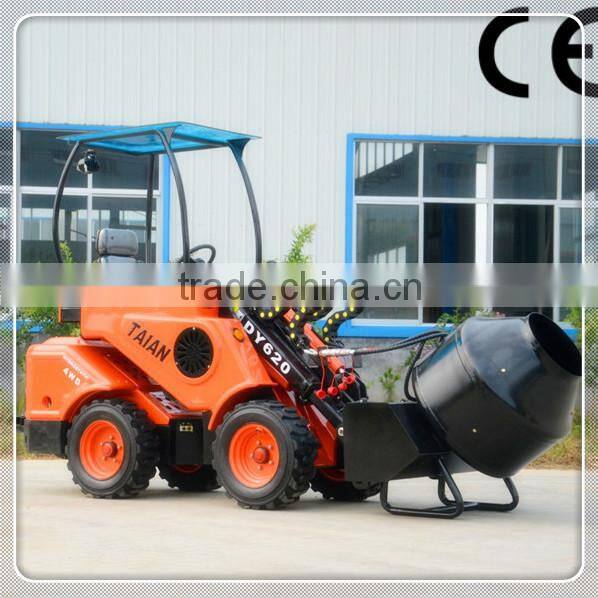

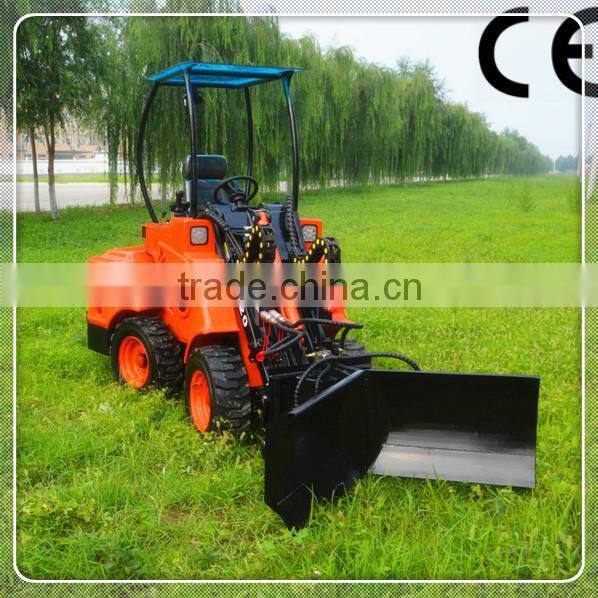

Agricultural Machine Mini Loader DY620 Loader Wheel Loader for Sale

Agricultural Machine Mini Loader DY620 Loader Wheel Loader for Sale photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
self powered wheel loader
Use:
farming work
Certification:
CE, ROPS
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Type self powered wheel loader
Use farming work
Certification CE, ROPS
Place of Origin Shandong, China
Brand Name TAIAN
Model Number DY620
Condition New
After-sales Service Provided Overseas third-party support available

Specifications

1.Agricultural machine mini loader with CE
2.Compact and smart articulated design

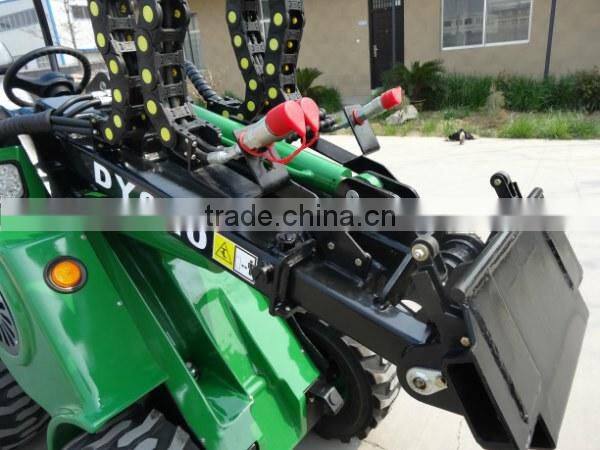

3.Telescopic boom
4.Hydrostatic 4WD

Agricultural machine mini loader DY620 loader wheel loader for sale



Agricultural machine mini loader DY620 Maintenance:

Thanks to the pressure test connector on the chassis of our machine, it saves a lot of trouble in any case there’s a problem happen on the machine.

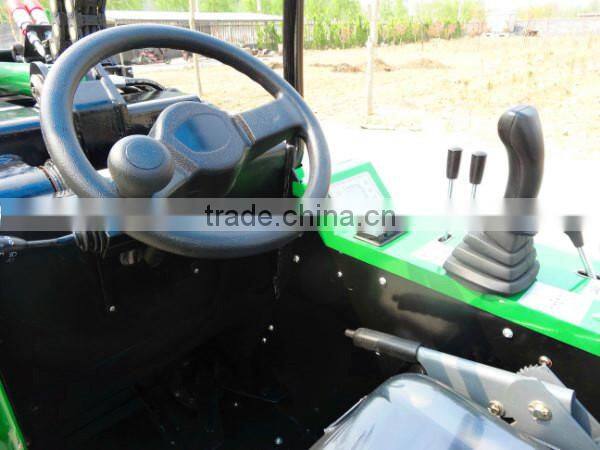

The display board indicates the working hours, engine speed, and whenever there’s over heating, lack of oil, etc. Happens, the relative lights will be on to remind the operator. The operator can know the machine’s condition just by a glance.

We cut some holes on the rear cover of the machine to enable the operator can get his hand in and check the oil level.

The engine top cover can be removed by just loosen four bolts.



Agricultural machine mini loader DY620 Usage:

The compact size and the telescopic boon widely increase its usage.

Front and optional rear hydraulic output together with the quick coupling system makes it the transformers of machinery.

With all the above features, our loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.

All the above features are standard on our machine, you do not need to pay extra money for any of them.



Technical data:

Model

DY620

Max. length

2195 mm

Max. width

980 mm

Max. height

2320 mm

Max. reach(boom extended)

2750mm

Max. reach(boom retracted)

2480mm

Bucket capacity

300L

Rated loading capacity

500kg

Tipping load

800kg

Min. turning radius

1980mm

Turning angle

400

Speed

10 km/h

Weight

1100 kg

Standard tire

23X8.5-12

Tire pressure

2.8 bar

Oil tank capacity

35L

Pressure

190bar

Working oil flow

33L/min

Tracking oil flow

50L/min

Oil model(mineral oil)

L-HL46

Engine brand

Perkins 403D-07

Number of cylinder

4

Cooling system

Water cooling

Rated power

12.5Kw

Rotation speed

2800 r/min

Fuel tank capacity

18L

Battery capacity

55Ah

Voltage

12v

OPPTIONS

Standard Bucket

Counterweight

Collapsible Roll Bar

Trailer hook

Agricultural machine mini loader DY620 loader wheel loader for saleAgricultural machine mini loader DY620 loader wheel loader for saleAgricultural machine mini loader DY620 loader wheel loader for sale



Agricultural machine mini loader DY620 loader wheel loader for sale





Agricultural machine mini loader DY620 loader wheel loader for sale
