Dear,
This is Christina, thank you for visiting our website, hope that any of our products can be of your interest, and I will try my best to be helpful and service you. Sincerely hope to have your support to our business, thank you in advance.

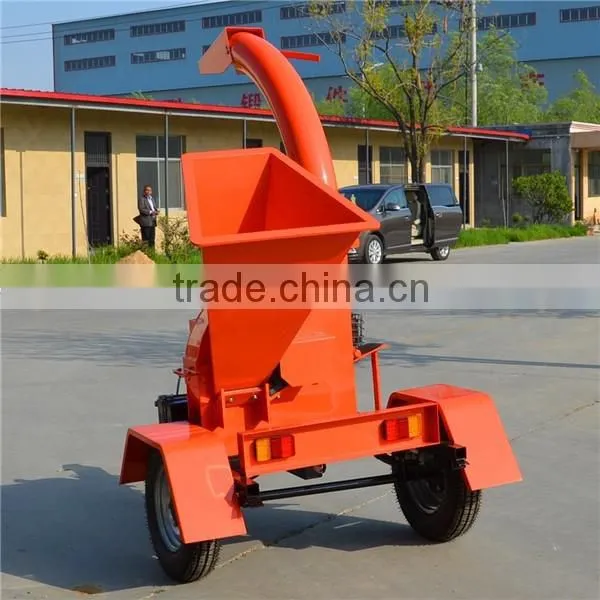

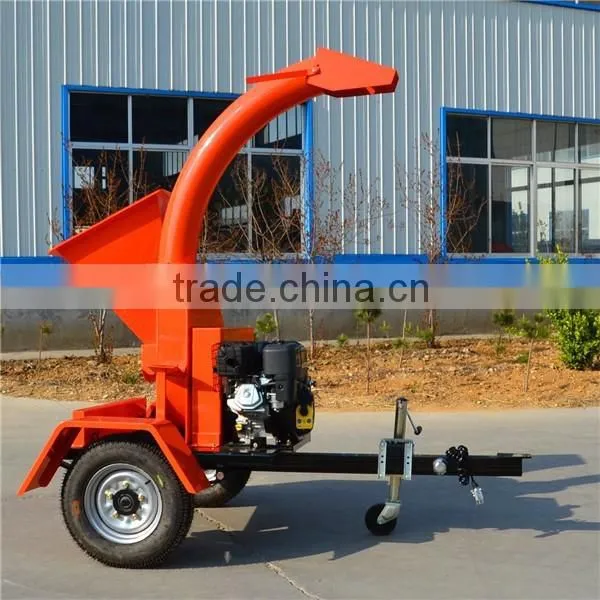

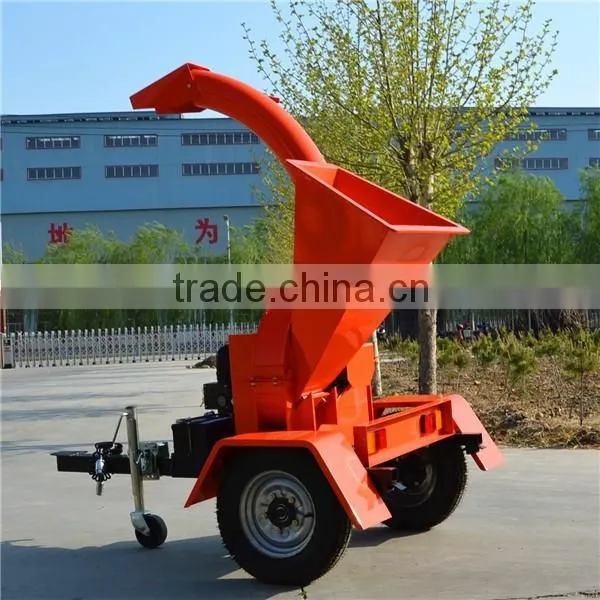

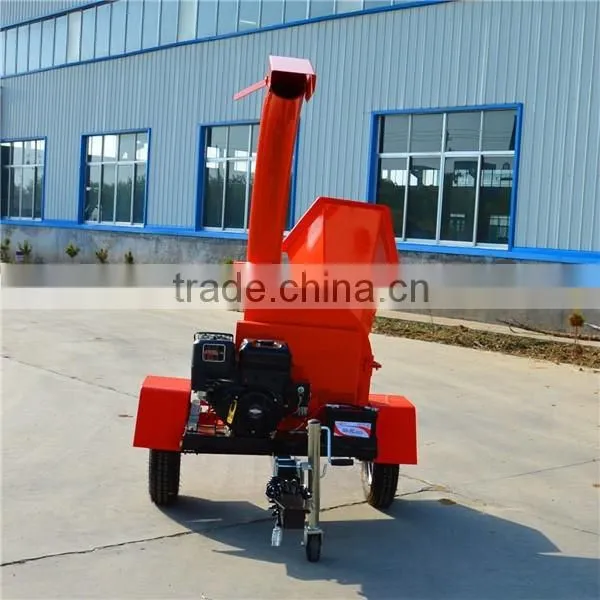

TC4 tree chipper or wood chipper is a machine used for reducing wood (generally tree limbs or trunks) into smaller wood chips. TC4 is portable, being mounted on wheels on frames suitable for towing behind a truck or van. Power is provided by an internal combustion engine 13 horsepower (10kW).
TC4 wood chipper relys on energy stored in a heavy flywheel to do their work. The chipping blades are mounted on the face of the flywheel, and the flywheel is accelerated by internal combustion engine.
Standard color is orange, but just with a reference color code, we can make it ideal appearance as you excepted.
Our brand name is "TAIAN", but OEM is acceptable and welcomed.
Blades
Two knives made of hardened chipper steel,98*215*10mm double edged,Knives are located in fully machined pockets and are reversible and resharpenable
Knives
Two knives made of 45# steel after quenching, 98*215*10mm double edged,Knives are located in fully machined pockets and are reversible and resharpenable
Engine Model |
B&S, 13HP. |
Capacity/Infeed | |
Capacity |
100mm(4inch) |
Infeed chute |
550mm*340mm*440m |
Infeed opening |
210mm*180mm |
Infeed height |
1500mm |
Discharge height |
2200mm |
Discharge chute |
Full 360 degree rotation -easy swing/pin locking |
Chipper Disc Housing | |
Disc size |
600mm*25mm |
Disc Weight |
86kg |
Disc Speed |
1430rpm |
Bearing |
insert bearing with housing |
Shaft |
55mm 45# steel |
Anvil |
Made from 45# steel with four usable sides.Easy external adjustment |
Chipper housing |
5mm plate top and bottom,front and back are:8mm and 6mm |
Fan Paddles |
Four fan paddles are bolted on to disc |
For all our machines, we offer one year or 1000 working hours warranty, within warranty, we’ll send all relative parts by express postage, you can receive it in 4~5 days.
