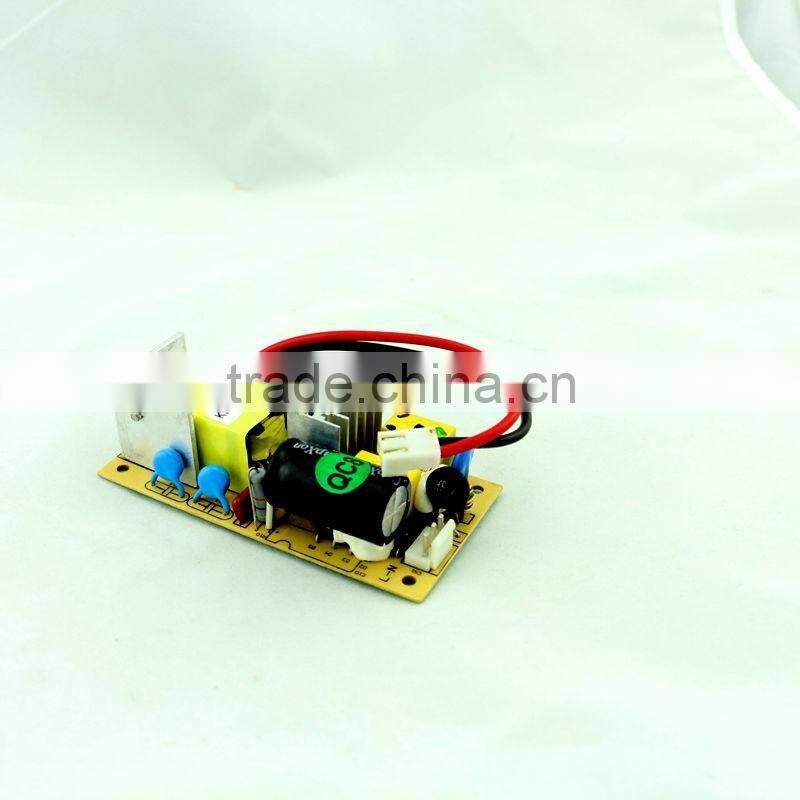

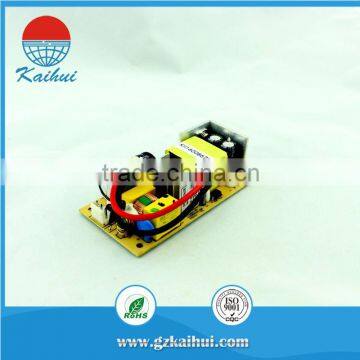

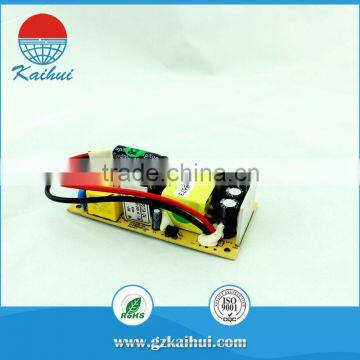

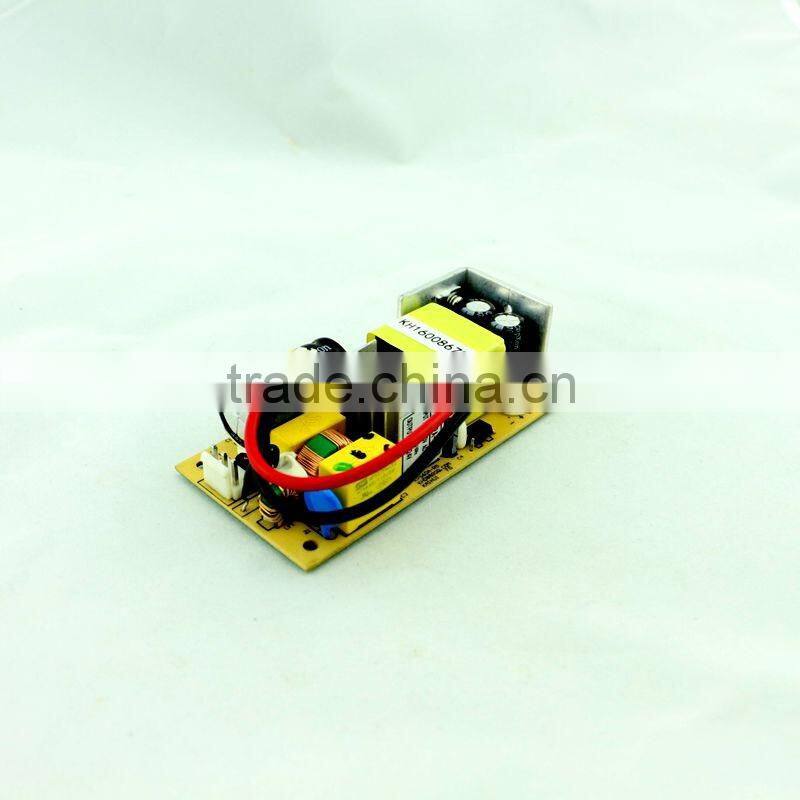

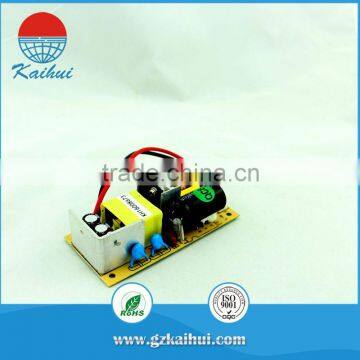

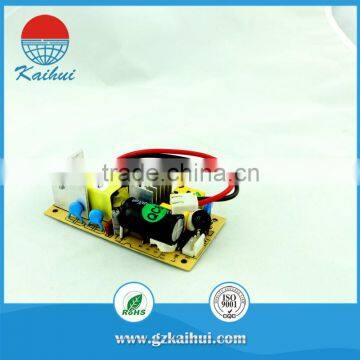

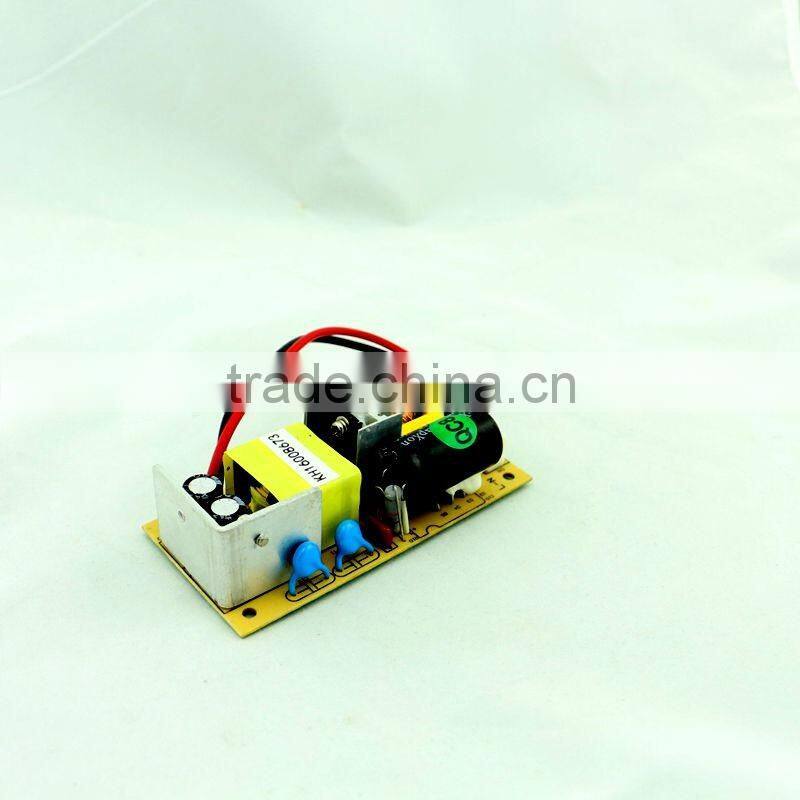

From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments

From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments thumbnail-1
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments thumbnail-2
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments thumbnail-3
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments thumbnail-4
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments thumbnail-5
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments photo-1
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments photo-2
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments photo-3
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments photo-4
From China Supplier PCB PSU 72W 24V 3A SMPS Power Supply Circuit For Healthy Equipments photo-5
US$ 5.2 - 6.1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KAIHUI
Model Number:
KPS72A-24
Contact Supplier Request Quote Chat Now
Guangzhou Kaihui Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen port Guangzhou port Huangpu port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KAIHUI
Model Number KPS72A-24
Output Power Other, 72W
Output Type Single
Input Voltage Other, 100~240V AC
Output Voltage 24V
Output Frequency 47-63HZ
Output Current 3A
Product Description

With years of export experience along with excellent quality, advanced services and competitive prices, Kai Hui has won numerous customers' trust and support.Our products have passed ISO9001 quality management system and also passed CCC, GS, CE, ETL certification.


1,high efficiency;
2,includeing filters, low output noise;
3, Wide range AC input voltage;
4,overload, overcurrent protection.
                                 Model No.
Specification
KPS72A-24
Output voltage
+24Vdc
Rated current
3A
Current range
0-3A
Rated power
72W
Ripple noise
200mVp-p
Adjustable output range
Not adjustable
Output accuracy
±1%
Line regulation
±0.5%
Load regulation
±0.5%
Set up,rise,hold up time
Input voltage range
100V~240V AC
Input current
1.5A/115Vac
Input frequency
50~60Hz`
Efficiency
89% @230Vac
Power factor
Inrush current
Cold start 10A/230Vac
Leakage current
<0.5mA@240V
Over load protection
105~180%Auto-recovery
Output over-voltage protection
Over-temperature
Working Temp.,Humidity
-20~40℃，10~90% RH,non-condensing
Storage Temp.,Humidity
-20~85℃，10~95% RH
efficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
Safety Standsrds
GB4706.1
Withstandard Voltage
I/P-O/P:4KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min.
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
EMC Standards
EN55022B
Dimension
100*50*30mm
Weight
0.2KG
Remark
Welcome to customize the products according to your kind request
                           We produce transformer by ourself

        Lead free produce line coincide with ROHS standard

                                High Voltage and Low voltage test

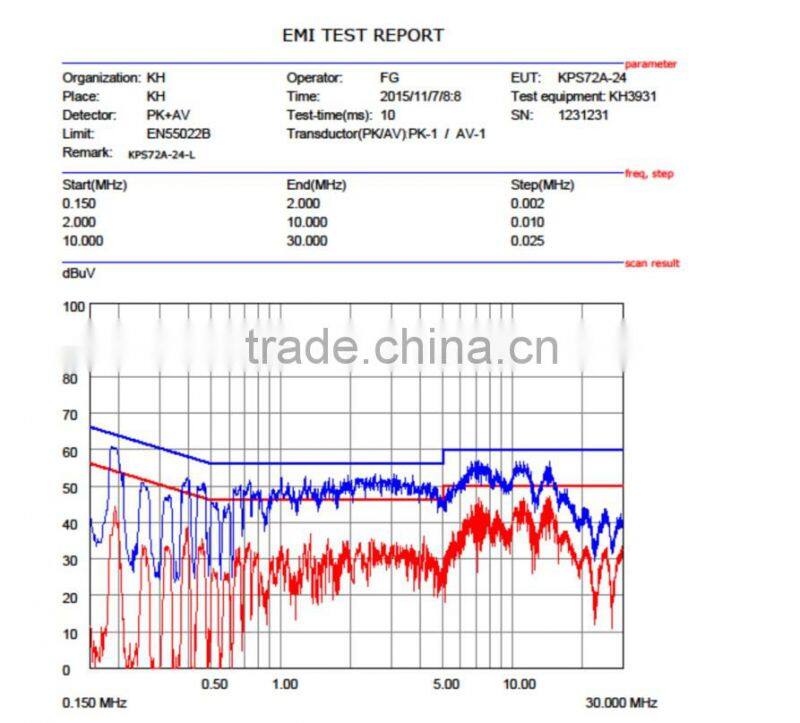

                            EMI testing

                                  100% Burn-in Test

                              Packing

Our Company

Guangzhou KAIHUI Electronics Co., Ltd. was established in 2003, Located in Guangzhou, China. The investment size of the company is more than 10 million RMB and covers 5000 square meters.
KAIHUI is specialized in researching and manufacturing full range switching power supply, power adapters, DC/DC , AC/DC, DC/AC converter. We have powerful Our We launch one new product each month to meet market requirement.

13 years professional manufacturer of switching power supply

19 years' experience engineer in power supply industrial provide service to you at any time.

More slimmer, More smaller, " Private Design & Develop" only for YOU.

Certifications
Customer Feedback
Trade Show
Packing & Delivery

Packing

We adopt standard export carton.

Delivery


Sample orders:
Our common products: 3-4days
OEM products: 9-10days

For the formal order: 10 working days.


Value-Added Service

Let KAIHUI serve as you sole provider for all your power supplies needs.
We pride ourselves on not just being a components distributor, but a trusted partner. We can assist with custom services that save you time, money and effort. In addition, our expertise in shipping logistics can improve your efficiency and we willingly maintain inventory for our valued partners.

We have:
13 years of expertise
19 years of experienced engineer
Franchised component lines
We produce transformer by ourselves
The ability to response quickly to your changes


Customer advantage:

Fewer payable invoices
Less inventory carrying costs incurred
Reduces overhead
Materials sent to floor for assembly, quickly and efficiently
You may become our exclusive agency to get win-win business partner


Our famous partner:

OPPLE / CKC/PR-LIGHTING

Our successful case:

Shanghai Bund Lighting Project

Guangzhou Garden Hotel Lighting project
