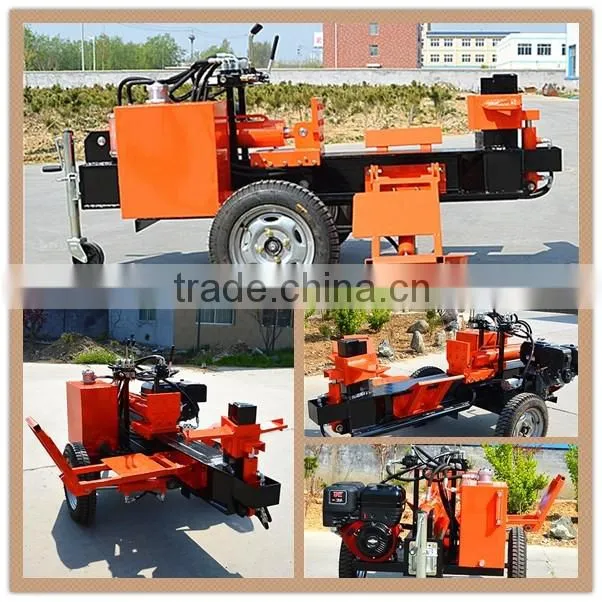

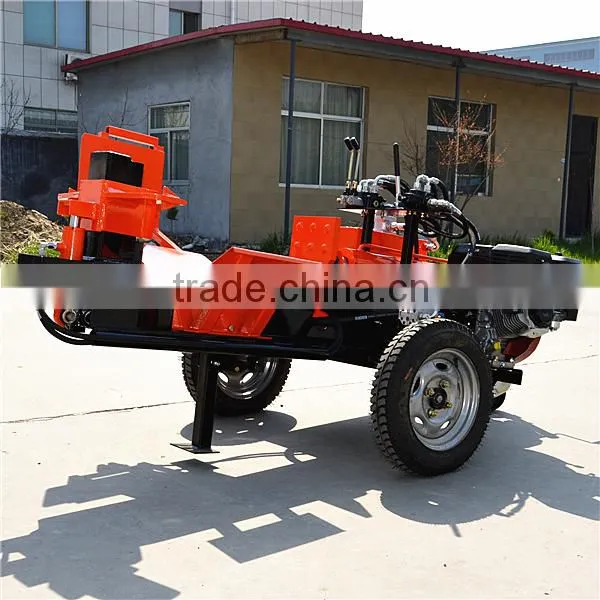

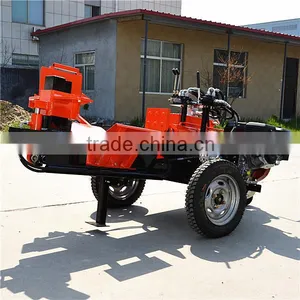

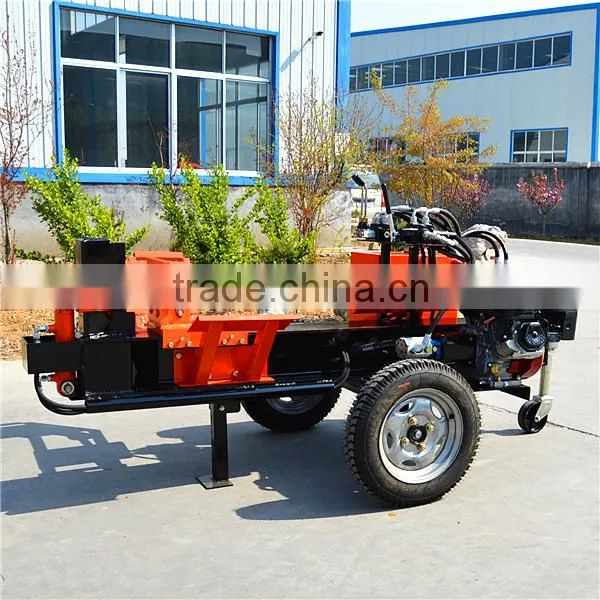

28tons Wood Cutter Machine for sale
wood cutter machine
Although a good log splitter can save the operator hours of labor, it is not possible to make it completely safe. Only trained adults should operate a log splitter, since anything caught between the log and the splitting blade will receive at least 10 tons of pressure. Most hydraulic machines now have 'two handed operation' for safety which means that both of the operator's hands are needed to actuate the splitter thus keeping them out of the way of the moving blade. Moreover when using it a safety zone should be established around the splitter to prevent injury from flying splinters of wood.
The behavior of each log can not be predicted, so a safety zone should be established around the splitter to prevent injury from flying splinters of wood. Helpers can pick up the individual pieces of firewood, but should not stand near the log splitter while it is in operation.
wood cutter machine
1. World famous Briggs & Stratton gasoline engine, powerful and long lasting.
2. Convenient and labor saving hydraulic jack for easy transporting by trailer
3. 100mm powerful hydraulic cylinder offer 140KN pushing power.
4. Wearable alloying sharp knife can better suits hard wood
5. Combined knives makes the splitting more easy and suitable to various size of wood.
6. Automatic feeding fencer enable you to split several woods together or to split the big woods into several pieces.
7. Auto-return valve makes the operation easy and safe.
8. Solid strong universal steering wheel can bear frequently moving and guarantee the long lasting of the machine
9. Small size and light weighted, smart and easy to be transported
Model |
TS400 |
|
Dimension (L x W x H) |
2250*1200*1000mm |
|
Weight |
450kg |
|
Cylinder bore |
100mm |
|
Cylinder rod diameter |
45mm |
|
Cylinder stroke |
650mm |
|
System pressure |
18Mpa |
|
Hydraulic flow |
40L/min |
|
Max. Diameter of wood |
400mm |
|
Engine |
brand & Model |
B&S 25T2 |
type & cooling way |
gasoline, air cooled |
|
power & speed |
13.5hp, 3600rpm |
|
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in this machine and need a quotation, Please contact with: Steven.
