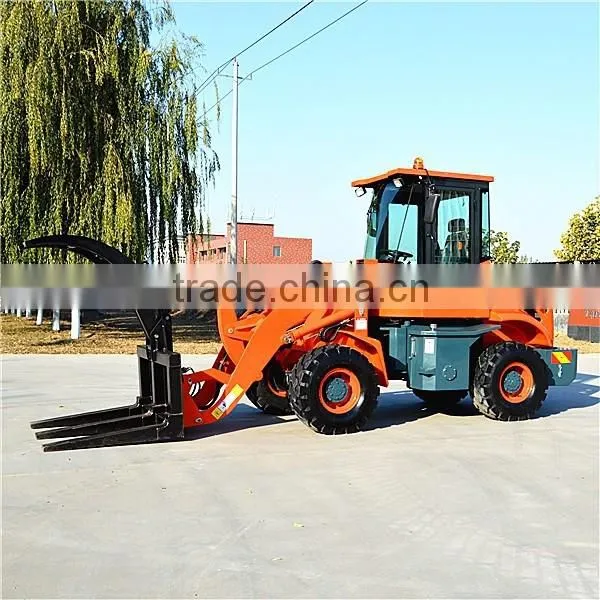

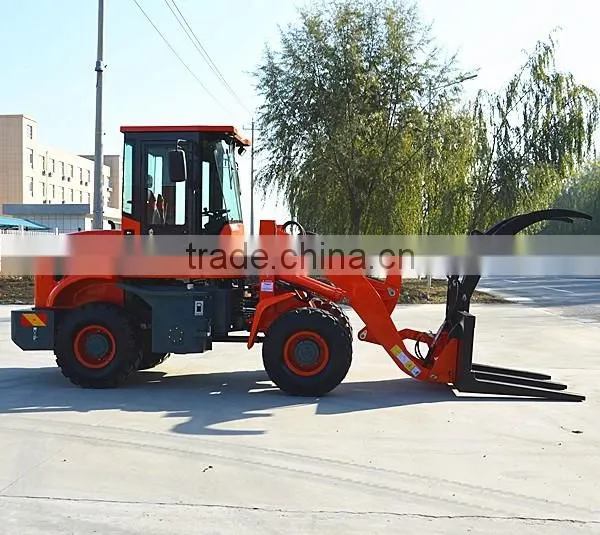

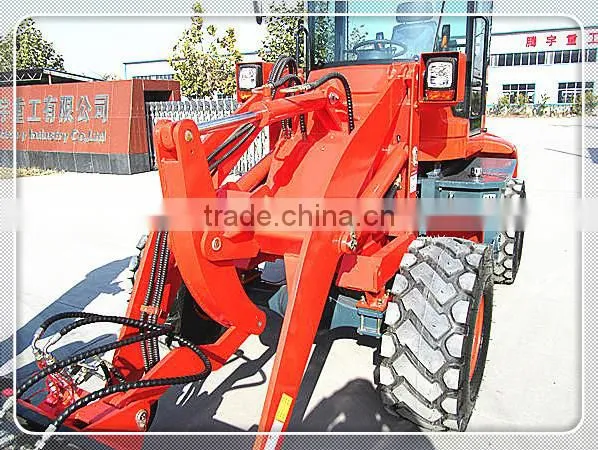

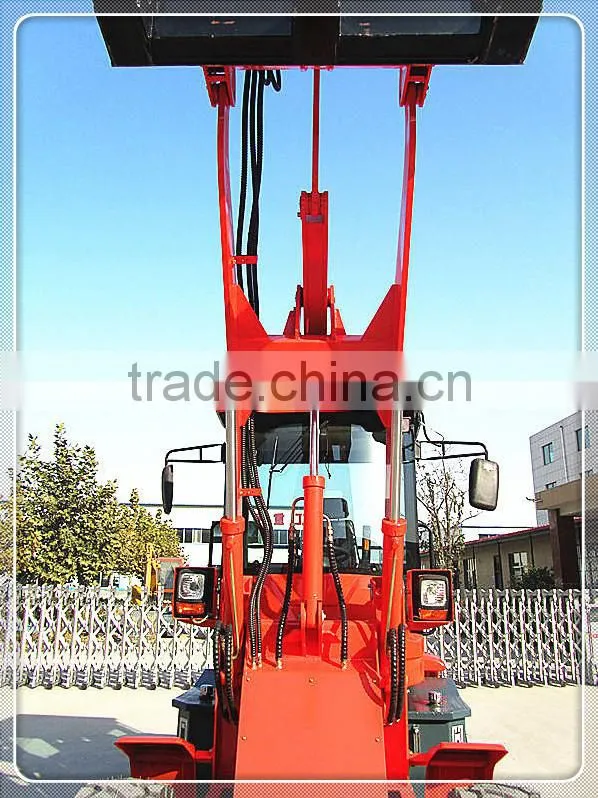

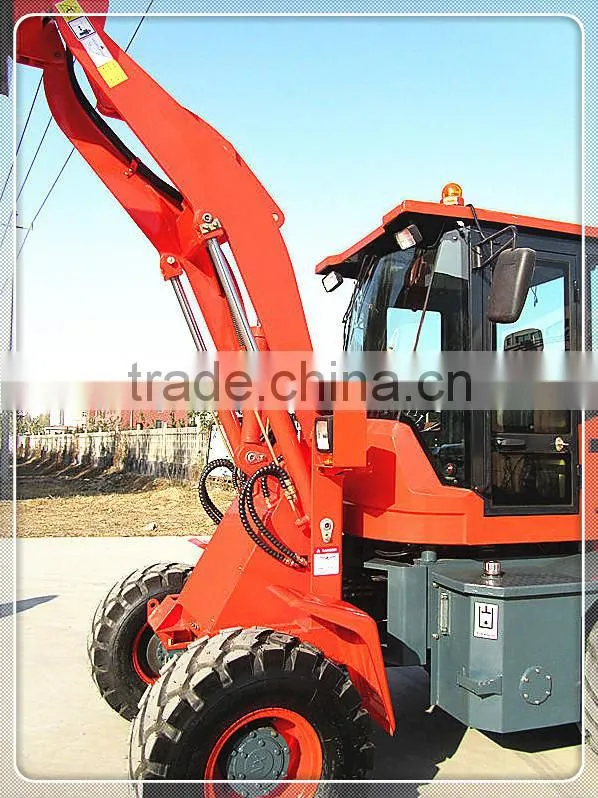

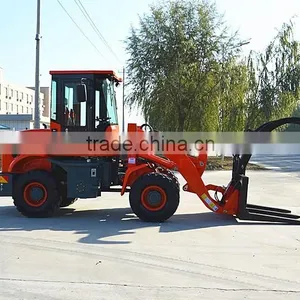

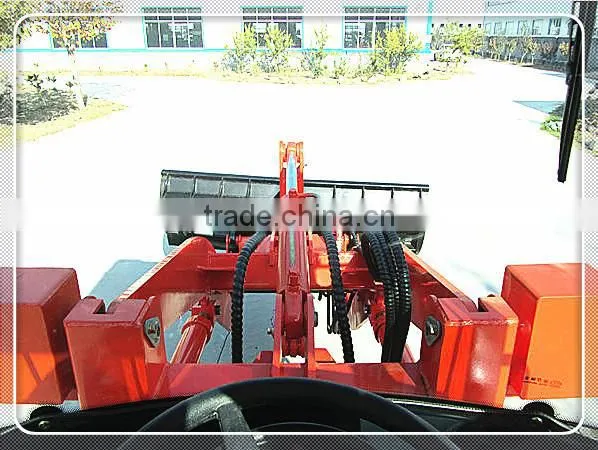

front wheel loader with joystick control ZL18:
Our company was established in 2001, and since then we have been focus on all kinds of loaders development, good innovation ability enable us to keep developing and stand out from other similar products. We have been awarded with 4 patents till now, variable products can meet customers different requirements.
1.We have been making such kind of loader for 14 years, every single part of the loader has been tested by market, thus it is a reliable mature product.

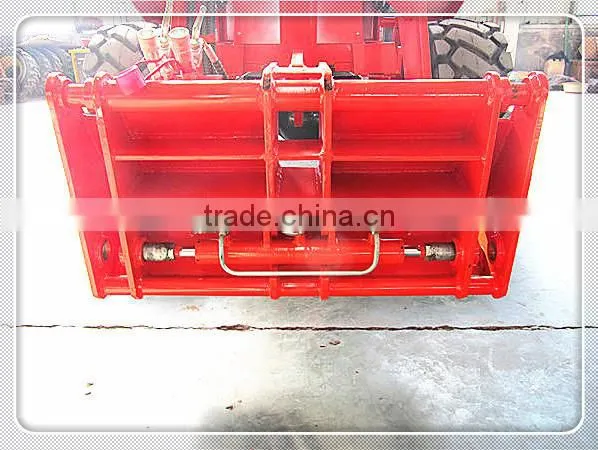

2.Standard quick hitch system enable it can use many different kind of attachments.
3.Special treatment of vibration and noise makes it stand out from other loaders.
4.Optional rear hydraulic output makes it a combination of loader and tractor.
5.With the support of an experienced engineering team, we can realize customers’ special requirements
Model |
TY18 |
|
Engine Details |
Engine model |
Yunnei 4102 |
|
Engine power |
60kw |
|
Rated Speed |
2400/r/min |
|
Engine cooling way |
Water cooling |
|
Fuel Consumption ratio |
230g/kw.h (standard working condition) |
|
Engine type |
In-line arrangement,4 cycle diesel Engine |
Bucket |
Bucket Capacity |
0.8 m3 |
|
Bucket width |
1700mm |
|
Bucket type |
Heavy-duty bolt on teeth |
Overall Dimensions |
Overall Length |
4650mm |
|
Overall Height |
2720mm |
|
Overall Width |
1870mm |
Brake System |
Service Brake |
Four Wheel disk brake |
|
Parking Brake |
Hand operated |
Max. lifting Height |
3450mm |
|
Rated Load |
1800kg including attachment |
|
Transmission System |
Hydraulic converter + drive shaft + axles |
|
Tyre Model |
17.5-16 |
|
Wheelbase |
2400mm |
|
Track |
1345mm |
|
Min Turning Radius: |
4950mm |
|
Weight |
3800kgs |
|
System Pressure |
19Mpa |
|
Hydraulic output |
96L/min |
|
Max. Height to the Pin |
4200 mm |
|
Braking Type |
Air braking |
|
Axle |
With hub reducer |
|
Hydraulic Oil Model |
L-HL46 |
|
Battery |
105Ah * 2, 24V |
|
Standard color is orange, but just with a reference color code, we can make it ideal appearance as you excepted.
Our brand name is "TAIAN", but OEM is acceptable and welcomed.
