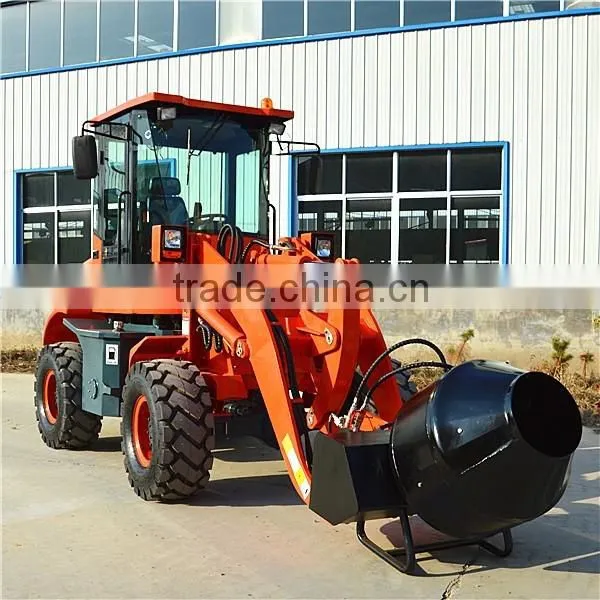

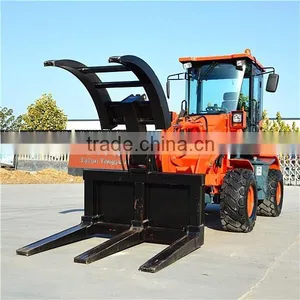

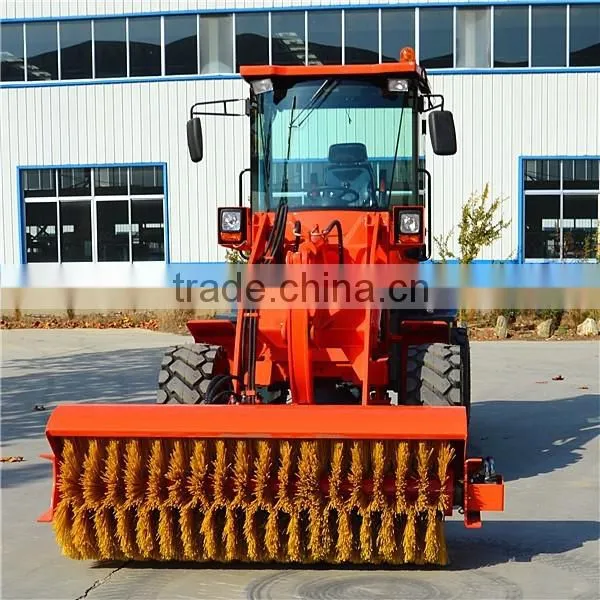

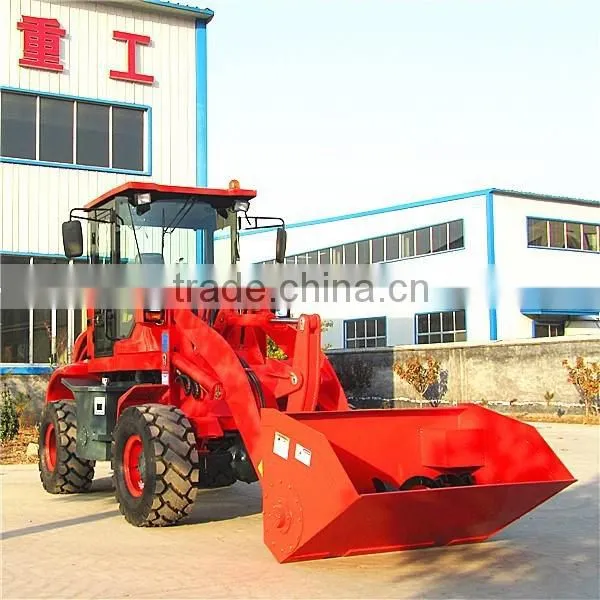

Help CenterNew Wheel Loader Diesel Engine Loader TY18 Articulated Mini Wheel Loader for Sale
Related Products
-
Cheap Wheel Loader TY18 With 0.8-1.2 CBM Bucket CapacityNegotiableMOQ: 1 Unit -
Multi Used Cheap Backhoe Loader TY18 With Snow BladeNegotiableMOQ: 1 Unit
-
New Designed Mini Backhoe Loader TY18 With 0.8-1.2 Bucket CapacityNegotiableMOQ: 1 Unit
-
Brand New Farm Tractor Front End Loader TY18 for Multi Use With Quich HitchNegotiableMOQ: 1 Unit
-
Mini Wheel Loader TY18 With 0.8 CBM Bucket CapacityNegotiableMOQ: 1 Unit
Dear,
This is Christina, thank you for visiting our website, hope that any of our products can be of your interest, and I will try my best to be helpful and service you. Sincerely hope to have your support to our business, thank you in advance.
Our company was established in 2001, and since then we have been focus on all kinds of loaders development, good innovation ability enable us to keep developing and stand out from other similar products. We have been awarded with 4 patents till now, variable products can meet customers different requirements.
Model |
TY18 |
|

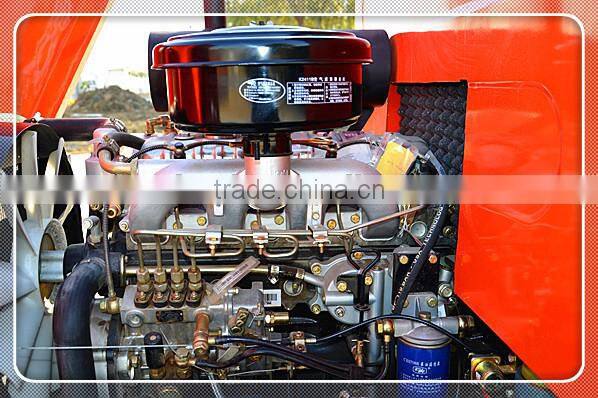

Engine Details |
Engine model |
Yunnei 4102 |
|
Engine power |
60kw |
|
Rated Speed |
2400/r/min |
|
Engine cooling way |
Water cooling |
|
Fuel Consumption ratio |
230g/kw.h (standard working condition) |
|
Engine type |
In-line arrangement,4 cycle diesel Engine |
Bucket |
Bucket Capacity |
0.8 m3 |
|
Bucket width |
1700mm |
|
Bucket type |
Heavy-duty bolt on teeth |
Overall Dimensions |
Overall Length |
4650mm |
|
Overall Height |
2720mm |
|
Overall Width |
1870mm |
Brake System |
Service Brake |
Four Wheel disk brake |
|
Parking Brake |
Hand operated |
Max. lifting Height |
3450mm |
|
Rated Load |
1800kg including attachment |
|
Transmission System |
Hydraulic converter + drive shaft + axles |
|
Tyre Model |
17.5-16 |
|
Wheelbase |
2400mm |
|
Track |
1345mm |
|
Min Turning Radius: |
4950mm |
|
Weight |
3800kgs |
|
System Pressure |
19Mpa |
|
Hydraulic output |
96L/min |
|
Max. Height to the Pin |
4200 mm |
|
Braking Type |
Air braking |
|
Axle |
With hub reducer |
|
Hydraulic Oil Model |
L-HL46 |
|
Battery |
105Ah * 2, 24V |
|
